Tested and certified to the latest edition of the American National Standard.
All models have a 4” diameter exhaust connection.
Can be rewired in the field for 120v operation.
Equipped with a solid state control that allows the blower to purge any residual gas buildup in the heater after the heater has shut down.

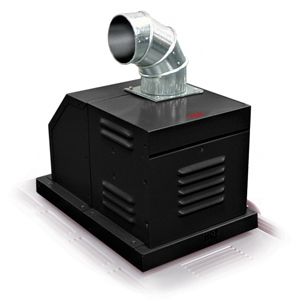

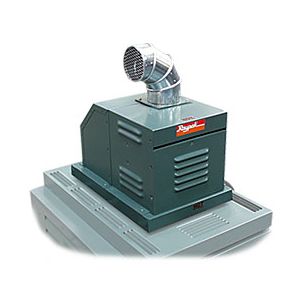

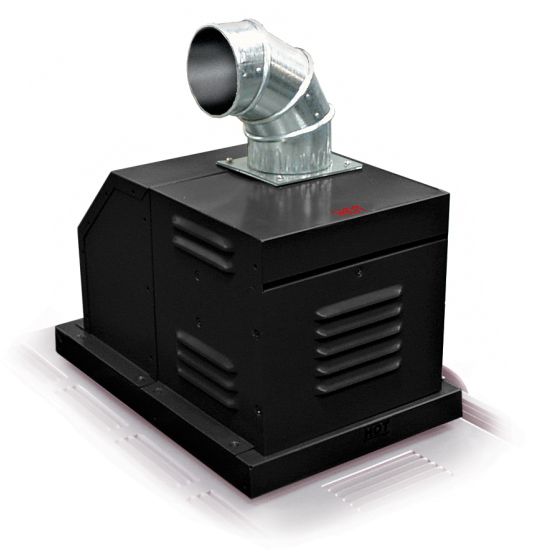

The D-2 Power Vent is compatible for indoor or outdoor installation on all Raypak Digital models. The D-2s assembly is tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters. Not only is the D-2 through the wall capable, the vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent.
All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4 diameter exhaust connection. Using the supplied adjustable 90 elbow, the flue gases may be discharged in any direction (see D-2 Power Vent manual for details). Or simply remove the elbow for vertical venting.
D-2 Power Vent is a Dual Voltage Induced Draft Blower (120/240 VOLT), factory set for 240 volts and can also be rewired in the field for 120v operation. The D-2 is safety at Its best. It is equipped with a draft proving switch. This switch ensures that the blower is operating before operating your heater. It is also equipped with a solid state control that allows the blower to purge any residual gas buildup in the heater after the heater has shut down.
Purchase Options
Raypak D-2 Indoor Power Vent 206-267 120/240V | 009832
