Home Pool Salt Cell Replacements CompuPool Replacement Cells CompuPool Replacement Salt Cell Electrode for CPSC16 | 4-Blade for up to 20,000 Gallons | JD363130B
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

CompuPool Replacement Salt Cell Electrode for CPSC16 | 4-Blade for up to 20,000 Gallons | JD363130B

CompuPool Replacement Salt Cell Electrode for CPSC16 | 4-Blade for up to 20,000 Gallons | JD363130B CompuPool Replacement Salt Cell Electrode for CPSC16 | 4-Blade for up to 20,000 Gallons | JD363130B

Parts AvailableParts Available
Gold Preferred Manufacturer
  • Suitable for pools up to 20,000 gallons
  • For use with CPSC16 chlorination system only
  • Produces one pound of chlorine per day
  • Clear blue housing not included
  • Unions, O-ring and cord not included
  • Click Here  for Complete Cell with Housing
  • CompuPool Clear Electrode Housing Body for CPSC Series | JD363102Z
    CompuPool Clear Electrode Housing Body | JD363102Z

  • AquaChek Salt System Test Kit | 542228A
    AquaChek Salt System Test Kit

  • Pool Style 1# Salt Cell Cleaner for Cleaning Salt Water Generator Cells | 774263
    1# Salt Cell Cleaner for Salt Water Generator Cells

  • CompuPool Electrode O-Ring for Clear Cell Housing | JD363ECM
    CompuPool Electrode O-Ring for Clear Cell Housing | JD363ECM

  • CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B
    CompuPool Cell Cable Plug & 15 foot Cord for CPSC Series | JD363200B

  • CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A
    CompuPool Cell Cable Plug & 6 foot Cord for CPSC Series | JD363200A

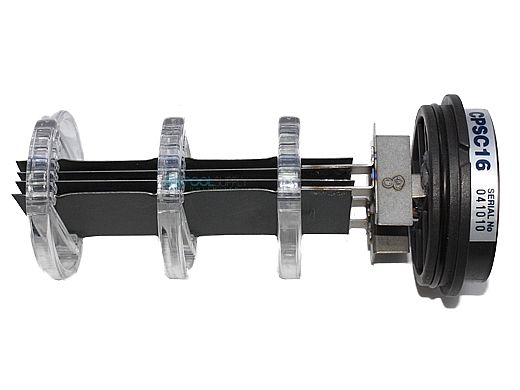

The CompuPool CPSC16 replacement salt cell electrode is for use with the CPSC16 chlorination system. The unit housing, unions and O-rings are not included with the cell, and we always recommend adding a new cord (see Other Purchase Options) when replacing the cell or electrode.

The CPSC16 electrode uses four titanium blades to a full pound of chlorine per day for pools up to 20,000 gallons in volume. The level of salinity can be easily maintained at the power center, making for a pleasing swimming experience as smooth, silky water provides a welcome contrast to the often overly chlorinated, irritating pool and spa water of years past. Periodic cleaning of the cell can also be performed with a simple mixture of water and muriatic acid.

CompuPool makes it possible to save by ordering just this replacement electrode for the CPSC16 without the blue housing if the existing housing is intact. It is possible, however, to order the full CPSC16 cell, housing included, by clicking the link above.

CPSC cells, electrode-only models and full systems are popular for a number of other reasons as well:

  • Default salt level setting of 3500 parts per million, which can be easily adjusted
  • Automatic operation plus battery-powered backup timer for consistent schedule
  • Automatic detection when water’s salt level is too high
  • Intuitive touch pad controls for easy setting of desired levels
  • No-flow sensor, plus high-salt and low-salt fault lights
  • Water temperature sensor to help make salt level reading more accurate
  • Large alloy heat sink to help dissipate heat and prevent corrosion
  • Entire system fully weather protected
  • Winter mode to compensate for colder water being chlorinated
  • Waterproof connectors make installing replacement cells simple

CompuPool has discontinued production of its CPSC line of complete salt systems in favor of the newer CPX models. However, it still manufactures replacement cells and electrodes for the CPSC system and we’re happy to offer them. CompuPool has been a leader in saltwater chlorination for more than three decades and we’ve received consistently high reviews from customers regarding those systems as well as replacement cells.

Pool Size
20,000 Gal
System Compatibility
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 7 answers
My CompuPool system is showing a "Water Fault" There is good flow through the cell, but no chlorine in the pool. What voltage should I be seeing at the cell connector to check I have a cell fault?
Geoff Q on Nov 9, 2015
Hi, Steve's my name. I recently replaced both my Cell cathode plate, & the controller unit. My cell had gotten to hot and developed a leak at the cell plate mount into the connection area shorting out the controller. If you are careful you can open the controller, from the backside. I don't remember the voltage out put, but the output is in DC voltage, that way it can cycle between phases. red & black are your hot leads, white is common. the owner manual shows only how to change connections for input 120/240v. but the large transformer inside step the voltage down to a lower AC voltage which is then converted to DC. It has a label with the input & output voltage on the transformer AC, There are also several fuses inside mine also has a reset button, check these first. The output will be either equal to the AC from the transformer Full-wave rectification or half if Half-wave.. Either way, you'll have to measure from white to red/white to black - make sure your on highest voltage DC with the meter. if you get nothing from the leads check fuses for continuity, if you find any soldered in, you can cut them at the top and use the bases for slip-on clips as I did. Best wishes on your attempt, hope I helped?
Will this generator work with the CPSC 36 power unit?
Bob B on May 16, 2017
BEST ANSWER: The power supply unit have been flashed from the manufacturer to power the specified cell so a CSPC16 will NOT work on a CSPC36 power unit.
5.0 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
October 8, 2018
over 5 years ago
Rated 5 out of 5
easier than buying a new generator
I didn't want to replace my generator, so I bought the replacement cell instead. Was easy to swap out, after watching some videos. Works perfectly.
August 19, 2016
over 6 years ago
CompuPool warranties its original and generic replacement salt cells for two years in most cases with some exceptions:
You can register your new CompuPool product for warranty purposes here.
