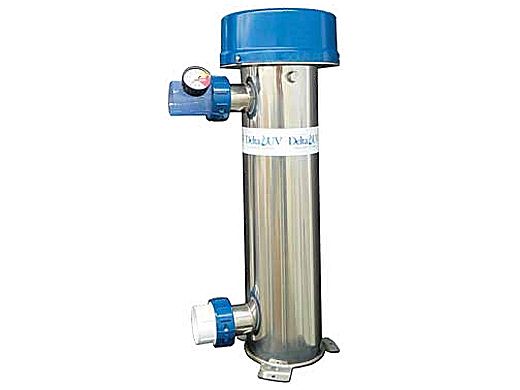

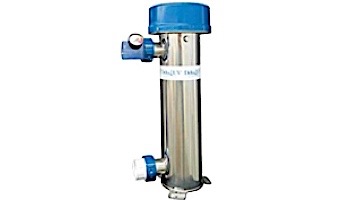

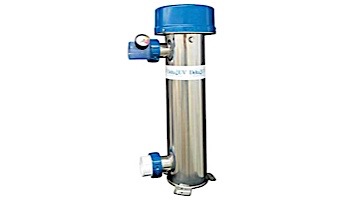

Home Delta Ultraviolet Sanitizer/Clarifier System EP Series | EP-40 | Stainless Steel | 80 GPM 120V | 35-08156 | 35-08149 | 1000-2164

Delta Ultraviolet Sanitizer/Clarifier System EP Series | EP-40 | Stainless Steel | 80 GPM 120V | 35-08156 | 35-08149 | 1000-2164

$1,300.62
Delta Ultraviolet Sanitizer/Clarifier System EP Series | EP-40 | Stainless Steel | 80 GPM 120V | 35-08156 | 35-08149 | 1000-2164
Delta Ultraviolet Sanitizer/Clarifier System EP Series | EP-40 | Stainless Steel | 80 GPM 120V | 35-08156 | 35-08149 | 1000-2164
DUC-45-1017EP Series

Engineered and Designed Specifically for the Sanitation of Ponds, Fountains, Water Features, Pools and Spas Water Maintenance. Enjoy for life the finest crystal clear water with the best materials thanks to the EP Series UV Sanitizer. Choose DELTA UV for a peace of mind.

The EP Series UV unit automatically sanitizes the water around the clock for pennies a day. Simply incorporate the UV unit into the equipment system and power with a standard 120V plug-in power connection. For those accustomed to using chlorine or bromine, the drastic reduction in chemical usage will be obvious in the first month. With a 16,000 hour (2 year) UV lamp life, routine maintenance is reduced to a 15-minute bulb change every 2 years.

For a Cleaner, Healthier Environment
  • Drastically reduces chemical usage –economical & eco-friendly
  • Kills DNA of waterborne green algae – keeps water clear
  • No risk of over-dosing– protects aquatic life
  • Eliminates Chloramines—no nasty chlorine smell
  • Does not produce harmful by-products – no DBP, THM or HAA
  • Prolongs life of pond & fountain equipment—no corrosion or staining
  • Compatible with all types of coatings and filters
  • Easily automated with existing chlorinator
  • Easy, reliable, environmentally friendly water maintenance
To determine the size for your pond, fountain or water features, simply determine the outflow rate of the circulation pump and the turnover rate of the water. The sizing chart below shows the maximum gallons per minutes (GPM) for each EP Series UV model.

The UV Concept

The sun emits invisible light - ultraviolet light. Through leading edge technology, this natural phenomenon is reproduced inside the sanitizers of the Delta UV product range using powerful UV-C ray lamps. At 254 nanometers, the optimum wavelength for destroying micro-organisms (viruses, bacteria, algae, yeast, mold, etc.), Delta UV-C rays penetrate and disrupt their DNA, permanently deactivating germ cell metabolism so they cannot reproduce.


EP Product Line Specifications
  • Power Input: 120/240V/50/60hz
  • Housing: Mirror-polished high quality Stainless Steel
  • Ballast: Electronic
  • Lamp: High Output - Low Pressure (16,000 hrs.)
  • Pressure Switch
  • Pressure Gauge: yes
  • Indoor/Outdoor Installation: yes
  • Limited Warranty: 2 Years (1 Year Bulb) Pro-Rated
  • Plumbing Options: 2" PVC Unions

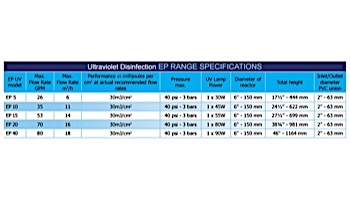

  EP SERIES
EP-5 EP-10 EP-15 EP-20 EP-40
SANITIZER
Material STAINLESS STEEL
Maximum pressure in Use 40psi 40psi 40psi 40psi 40psi
Flow 26gpm 35gpm 53gpm 70gpm 80gpm
Diameter 6 in. 6 in. 6 in. 6 in. 6 in.
Height 18 in. 25 in. 28 in. 39 in. 46 in.
Inlet / Outlet 2 in. 2 in. 2 in. 2 in. 2 in.
Power supply 120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
120V/240V
50-60Hz
Protection index IP 54
NEMA 3
IP 54
NEMA 3
IP 54
NEMA 3
IP 54
NEMA 3
IP 54
NEMA 3
  UV LAMP
Number of lamp 1 1 1 1 1
Power 30W 45W 55W 80W 90W
Performance at the
recommended flows
30 mJ/cm² 30 mJ/cm² 30 mJ/cm² 30 mJ/cm² 30 mJ/cm²

EP Product Line Specifications
  • Power Input: 120/240V/50/60hz
  • Housing: 4’’ Stainless Steel
  • Ballast: Electronic
  • Lamp: High Output - Low Pressure (16,000 hrs.)
  • Indoor/Outdoor Installation: yes
  • Limited Warranty: 1 Year UV unit and lamp
  • Plumbing Options: 3/4’’ barbed tailed piece (circ systems), 2" PVC Unions


Brand: Delta UV
