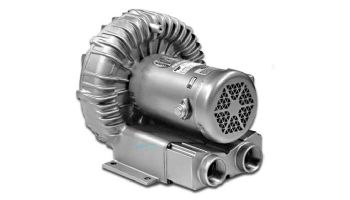

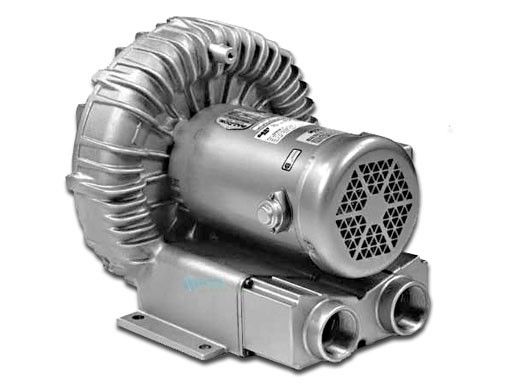

Rugged construction, low maintenance, oil-less operation, UL and CSA approved TEFC motors with permanently sealed ball bearings, aluminum cover, impeller, and housing, inlet and outlet have internal muffling. Made in the U.S.A.
- Amps (60/50 Hz): 13.0-12.0/6.0 14.4-13.4/7.2-6.8
- Power rating (60/50 Hz): 5.0 hp (3.7 kw) / 4.8 hp (3.6 kw)
- Weight: 112 lbs (50.8 kg)
- Series: R6
- Inch / metric: Inch
- Motor enclosure: TEFC
- Voltage (60/50 Hz): 208-230/460-3 / 190-220/380-415-3
- Insulation class: F
- Recommended NEMA starter size: 1/0
- Starting Amps (60/50 Hz): 125 @ 230V / 57 @ 380V

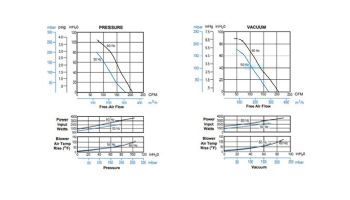

- Maximum vacuum: 88 InH2O (60 Hz) 70 InH2O (50 Hz)
- Maximum pressure: 105 InH2O (60 Hz) 78 InH2O (50 Hz)
- Maximum air flow: 207 cfm (60 Hz) 180 cfm (50 Hz)
Application: Air tables, solution and media agitation, vacuum hold-down and pickup, air blow-off, soil and ground water remediation, carton forming and packaging, lab filtration, sewage aeration, materials handling, aquaculture, pneumatic conveying.
Unit must be mounted horizontally, foot pad down.
Brand: AIR SUPPLY
