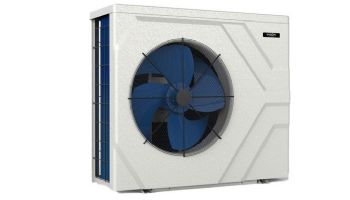

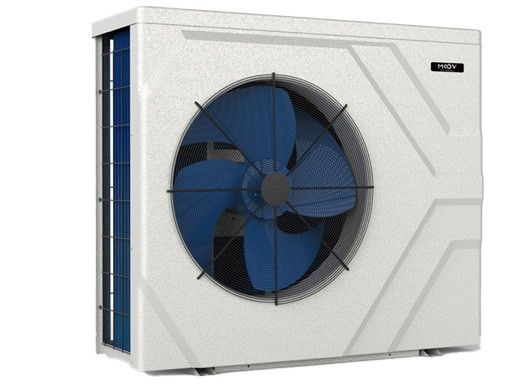

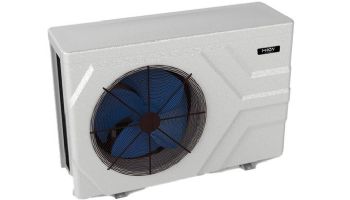

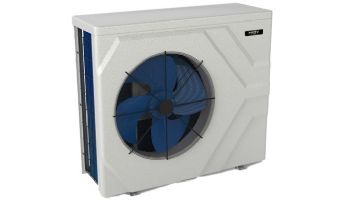

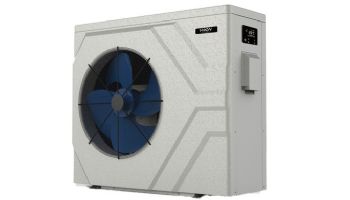

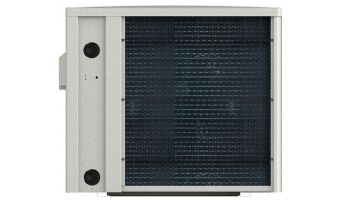

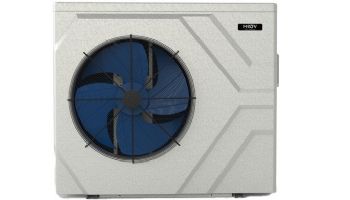

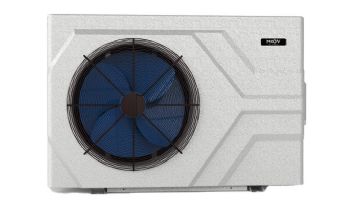

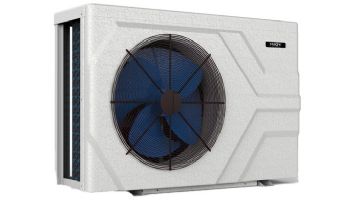

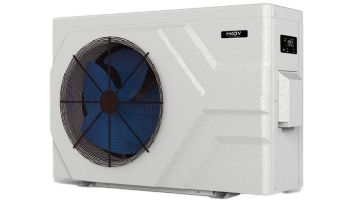

Moov Inverter Variable Speed Heat Pump | Up to 18,000 Gallons | 65,000 BTU | Single Phase 208-230V 60Hz | MI650X
$2,599.00
         |
|
|
Moov | Inverter - The Newest Technology for Pool Heat Pumps
Why Inverter Technology?
Powered by Inverter Technology, the Inverter can intelligently adjust the heating capacity from 20% to 100% based on varying heating demand.
When the season starts and heating demand is high, the Inverter operates at 100% compressor and fan speed for fast heating. When maintaining the pool temperature, the Inverter runs at low speed for energy savings offering a higher COP and lower sound pressure.
Features:
- 50% Higher Energy Saving - Lowest operation cost and highest efficiency
- 48dB[A] - Unparalleled sound level
- Average 7 Times Quieter - Average sound pressure 48 dB(A) at 1m Thanks to the quiet DC Full-Inverter Compressor, the Moov Inverter offers the quietest operating sound range in its category
- Soft Start - When the inverter turns on, the current starts at 0 and gradually increases to the rated current in under 2 minutes. This does not affect the household electrical system, unlike traditional heat pumps, which start at a higher current and therefore consume more energy
- Twin-Rotary DC Inverter Compressor - Based on the innovative 'Twin Mechanism' solution, two rotors operate together to balance the torque and prevent shaking. This leads to higher efficiency and quieter operation
- Built-In Wi-Fi Module - Control your device remotely with the Moov App
The heat pump's efficiency varies with climatic conditions, setup and other factors such as the average pool temperature desired. Please consult a pool expert first to confirm the right product for your needs.
| Moov Inverter | MI500 | MI650X | MI900 | MI1100 | MI1400 | ||||||
| Maximum pool capacity (gallons) | 14 000 | 18 000 | 28 000 | 32 000 | 42 000 | ||||||
| Maximum pool capacity (litres) | 52 000 | 68 000 | 105 000 | 120 000 | 155 000 | ||||||
| Operating Temperature (degrees F) | 32 - 109 | ||||||||||
| Performance Condition Air 80 degrees F/ Water 80 degrees F/ Humidity 80% | |||||||||||
| Healing capacity (Btu) | 50,000 | 65,000 | 90,000 | 110,000 | 140,000 | ||||||
| Healing capacity with silence mode (Btu) | 40,000 | 52,000 | 72,000 | 88,000 | 112,000 | ||||||
| C.O.P. | 10.6-5.98 | 11.2-5.61 | 13.6-6.0 | 13.5-5.8 | 13.1-5.8 | ||||||
| Performance Condition Air 80 degrees F/ Water 80 degrees F/ Humidity 63% | |||||||||||
| Healing capacity (Btu) | 47,500 | 61,000 | 85,000 | 104,000 | 132,000 | ||||||
| C.O.P. | 9.7-5.5 | 9.9-5.35 | 12.3-5.7 | 12.2-5.6 | 11.0-5.7 | ||||||
| Performance Condition Air 80 degrees F/ Water 80 degrees F/ Humidity 63% | |||||||||||
| Healing capacity (Btu) | 28,900 | 37,000 | 54,000 | 67,000 | 85,000 | ||||||
| C.O.P. | 5.1-4.15 | 5.2-4.3 | 5.5-4.3 | 5.2-4.2 | 5.2-4.1 | ||||||
| Technical Information | |||||||||||
| Input capacity (kW) at air 80 degrees F | 0.46-2.53 | 0.53-3.39 | 0.54-4.39 | 0.61-5.9 | 0.85-6.85 | ||||||
| Inlet capacity (A) at air 80 degrees F | 2.00-11.0 | 2.30-14.8 | 2.34-19.1 | 2.65-25.6 | 3.69-29.8 | ||||||
| Circuit Breaker (A) | 20 | 30 | 30 | 40 | 50 | ||||||
| Current | 208-230V/1pH/60Hz | ||||||||||
| Required Water Flow (L/min) | 83-116 | 108-142 | 125-158 | 133-167 | 133-254 | ||||||
| Sound Level 3m dB(A) | 48 | ||||||||||
| Heat exchanger | Titanium in PVC | ||||||||||
| Coating | ABS casing | ABS + metal | |||||||||
| Air discharge | Horizontal | Vertical | |||||||||
| Water inlet and outlet | 1.5" | 2" | |||||||||
| Dimensions | 37.8x13.4x25.9 | 37.8x16.5x25.9 | 43.0x16.5x37.7 | 37.2x27.3x38.5 | 32.0x37.7x42.0 | ||||||
| Net Weight (lbs) | 114 | 134 | 229 | 251 | 317 | ||||||
Brand: Moov Pool Products
