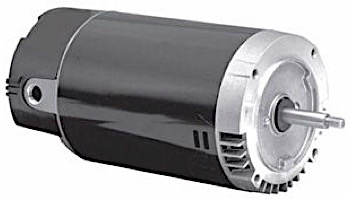

Home Replacement Threaded Shaft Pool Motor 1HP | 115/230V 56 Round Frame Up-Rated UST1102 | EUST1102
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Replacement Threaded Shaft Pool Motor 1HP | 115/230V 56 Round Frame Up-Rated UST1102 | EUST1102

Replacement Threaded Shaft Pool Motor 1HP | 115/230V 56 Round Frame Up-Rated UST1102 | EUST1102

Shipping Flat Rate Shipping $24.95
  • Standard Efficient, Low Service Factor
  • Switch Design
  • 5.5" Frame Diameter
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.
Motor Features:
  • Two Compartment
  • Triple Bearing Protection
  • Thermally Protected
  • 1081 Design
  • Shaft Threads - 7/16-20 UNF-2A
  • Class B Insulated
  • Open Drip-Proof
  • Continuous Duty
  • 50 Degree 'C' Ambient
  • 300 Series Stainless Steel Shaft
  • Sealed Ball Bearings
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 10.09
  • Weight: 22

NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.

Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 1 answer
I'm looking to replace a Hayward (AO Smith) 1HP 115/230 volt moter in my Hayward Super Pump (Model C48K2N143B1). Is this a drop in replacement?
Steve L on May 18, 2017
I have a 1 HP motor in my Hayward Super Pump; can I replace it with a 1.5 HP motor?
Steve L on May 18, 2017
What is the difference between a UST1152 motor and a EUST1152 motor?
Bob F on Mar 13, 2016
BEST ANSWER: There's no difference other than the label that is used. These are manufactured by US motors but may say either AO Smith or EMERSON Depending on the part number. It's basically for marketing and territory's for the manufacturer for brick and motar stores. For us, since we're an internet company and we're global, territory doesn't matter to us so we post both part numbers.
4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Pool Motor.
The pool motor is running really nice and is quieter than the one I had before. So far I’m very happy with it. Delivery was good and in a timely manner, faster then I expected as a matter of fact. So over all it was great 3xperience getting this motor from pool supply unlimited.
December 14, 2018
over 3 years ago
Rated 4 out of 5
Century motor not Emerson/USMotor
I expressly searched to find a non Chinese motor. The description said USMotor (made in Mexico0 is why I ordered this one. Delivered was a Century made in China. It's working as it should, but I'm not pleased. The vendor failed to respond to my inquiry.
May 24, 2021
1 year ago
