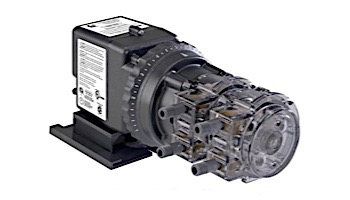

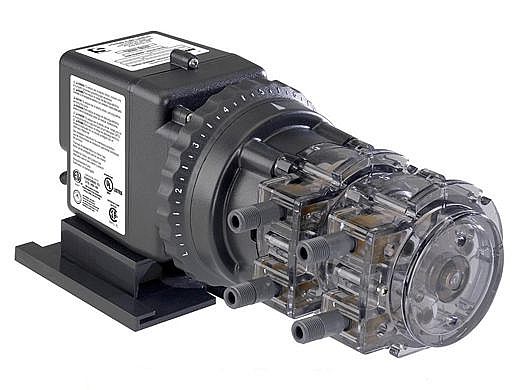

Stenner Classic Series 100DM5 Pump | Double Head Adjustable Output | 170GPD 120V 60Hz USA.25" 25PSI | 100JL5A1STAA
$653.78
Double Head Adjustable Output
How It Works
Stenner’s double head adjustable output metering pump is built with four detachable components: the motor, feed rate control, and two pump heads. Outputs are dependent upon three factors: the rpm of the motor gears, the percentage setting on the feed rate control, and the size of the peristaltic pump tube. All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.
The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump heads. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self- priming feature that delivers a constant flow unaffected by the outlet pressure.
100 SERIES
0.3 to 20.0 gpd up to 100 psi 0.3 to 100.0 gpd up to 25 psi
26 rpm
Adjustable output 5%-100%, 2.5% increments
Fixed output
Features
3-point roller design assists in anti-siphon protection
Pump head requires no valves, allows for easy maintenance
Self-priming against maximum working pressure, foot valve not required
Pump does not lose prime or vapor lock
Pumps off-gassing solutions and can run dry
Output volume is not affected by back pressure
Easy to change pump tube; lubrication is not required
Pump tubes and pump heads interchange between models
2 weighted suction line strainers 1/4", 3/8" or 6 mm EUROPE
2 20' roll suction/discharge tubings 1/4" or 3/8", white or UV black
OR 6 mm white EUROPE
2 additional pump tubes
2 additional latches
1 mounting bracket
1 manual
SPECIFICATIONS
Maximum Operating Temperature 125° F (52° C) Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water Motor Type 1/30 HP, shaded pole, class B Duty Cycle Continuous Motor Voltage(Amp Draw) 120V 60Hz 1PH (1.7) 220V 60Hz 1PH (0.9) 230V 50Hz 1PH (0.9) INTERNATIONAL 250V 50Hz 1PH (0.9) INTERNATIONAL Power Cord Type SJTOW Power Cord Plug End 120V 60Hz NEMA 5/15 220V 60Hz NEMA 6/15 230V 50Hz CEE 7/VII 250V 50Hz CEE 7/VII
MATERIALS OF CONSTRUCTION
All Housings Polycarbonate Pump Tube & Check Valve Duckbill Santoprene®*, optional Tygothane®** #1, #2 & #5 tubes, FDA approved CV Duckbill with Tygothane®** Tube Pellathane®† Pump Head Rollers HDPE Roller Bushings Oil impregnated sintered bronze Suction/Discharge Tubing, Ferrules 1/4" & 6 mm Polyethylene, FDA approved Tube Fittings, Check Valve Fittings Gray fittings: Type 1 Rigid PVC , NSF listed Black fittings: PP, NSF listed Connecting Nuts PP or Type 1 Rigid PVC 3/8" Adapter Type 1 Rigid PVC, NSF listed Suction Line Strainer PP or Type 1 Rigid PVC body with Type 1 Rigid PVC cap, NSF listed; ceramic weight All Fasteners Stainless steel Pump Head Latches Polypropylene
AGENCY LISTINGS
Models tested by Water Quality Association to conform to ANSI/NSF STD 61 (Santoprene® only)
Adjustable models tested by ETL to conform to ANSI/NSF STD 50 (Santoprene® only)
Stenner’s double head adjustable output metering pump is built with four detachable components: the motor, feed rate control, and two pump heads. Outputs are dependent upon three factors: the rpm of the motor gears, the percentage setting on the feed rate control, and the size of the peristaltic pump tube. All Stenner metering pumps have a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.
The motor shaft rotates at a fixed rpm which drives the adjustable feed rate control to intermittently engage the roller assembly within the pump heads. The chemical solution in the pump tube is captured between the rollers as they rotate and compress the tube. As the rollers advance, the squeezed tube section regains its original form and generates a vacuum, creating the self- priming feature that delivers a constant flow unaffected by the outlet pressure.
100 SERIES
0.3 to 20.0 gpd up to 100 psi 0.3 to 100.0 gpd up to 25 psi
26 rpm
Adjustable output 5%-100%, 2.5% increments
Fixed output
Features
3-point roller design assists in anti-siphon protection
Pump head requires no valves, allows for easy maintenance
Self-priming against maximum working pressure, foot valve not required
Pump does not lose prime or vapor lock
Pumps off-gassing solutions and can run dry
Output volume is not affected by back pressure
Easy to change pump tube; lubrication is not required
Pump tubes and pump heads interchange between models
2 weighted suction line strainers 1/4", 3/8" or 6 mm EUROPE
2 20' roll suction/discharge tubings 1/4" or 3/8", white or UV black
OR 6 mm white EUROPE
2 additional pump tubes
2 additional latches
1 mounting bracket
1 manual
SPECIFICATIONS
Maximum Operating Temperature 125° F (52° C) Maximum Suction Lift 25 ft (7.6 m) vertical lift, based on water Motor Type 1/30 HP, shaded pole, class B Duty Cycle Continuous Motor Voltage(Amp Draw) 120V 60Hz 1PH (1.7) 220V 60Hz 1PH (0.9) 230V 50Hz 1PH (0.9) INTERNATIONAL 250V 50Hz 1PH (0.9) INTERNATIONAL Power Cord Type SJTOW Power Cord Plug End 120V 60Hz NEMA 5/15 220V 60Hz NEMA 6/15 230V 50Hz CEE 7/VII 250V 50Hz CEE 7/VII
MATERIALS OF CONSTRUCTION
All Housings Polycarbonate Pump Tube & Check Valve Duckbill Santoprene®*, optional Tygothane®** #1, #2 & #5 tubes, FDA approved CV Duckbill with Tygothane®** Tube Pellathane®† Pump Head Rollers HDPE Roller Bushings Oil impregnated sintered bronze Suction/Discharge Tubing, Ferrules 1/4" & 6 mm Polyethylene, FDA approved Tube Fittings, Check Valve Fittings Gray fittings: Type 1 Rigid PVC , NSF listed Black fittings: PP, NSF listed Connecting Nuts PP or Type 1 Rigid PVC 3/8" Adapter Type 1 Rigid PVC, NSF listed Suction Line Strainer PP or Type 1 Rigid PVC body with Type 1 Rigid PVC cap, NSF listed; ceramic weight All Fasteners Stainless steel Pump Head Latches Polypropylene
AGENCY LISTINGS
Models tested by Water Quality Association to conform to ANSI/NSF STD 61 (Santoprene® only)
Adjustable models tested by ETL to conform to ANSI/NSF STD 50 (Santoprene® only)
Listings vary by model
Features and details
Self-priming up to 25 feet and does not lose prime
Subassemblies fit together without tools; easy service or conversion to another model
Can run dry without damage
Will not clog from dirt or debris
Adjustable feed rate control from 5%-100% in 2.5% increments
