Home Waterco Micron SM-Series SM600 24" Side Mount Sinking Bead Sand Filter | 3.05 Sq. Ft. 61 GPM | 220058244BS-NV
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

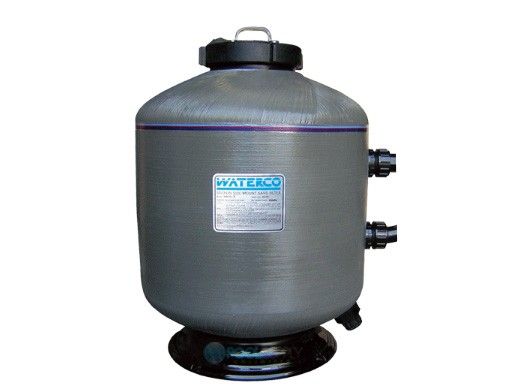

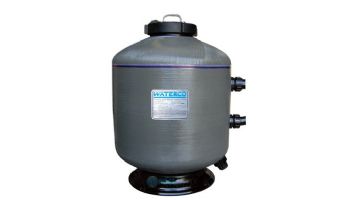

Waterco Micron SM-Series SM600 24" Side Mount Sinking Bead Sand Filter | 3.05 Sq. Ft. 61 GPM | 220058244BS-NV

Waterco Micron SM-Series SM600 24" Side Mount Sinking Bead Sand Filter | 3.05 Sq. Ft. 61 GPM | 220058244BS-NV Waterco Micron SM-Series SM600 24" Side Mount Sinking Bead Sand Filter | 3.05 Sq. Ft. 61 GPM | 220058244BS-NV Waterco Micron SM-Series SM600 24" Side Mount Sinking Bead Sand Filter | 3.05 Sq. Ft. 61 GPM | 220058244BS-NV
$610.74

Quantity:
Platinum Preferred Manufacturer
  • Proven Strength and Durability
  • Fibreglass Wound Tank, UV and Corrosion Resistant
  • Inflow Diffuser for even Distribution of Water Flow Across the Filter Bed
  • Large Filter Base for Stable Floor Mounting
  • Multiport Valve Sold Separately
RELATED ITEMS
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
RELATED ITEMS
  • Waterco Multiport Valve for use with Sand Filters | Valve with Piping Kit | 2" Side Mount Valve & Filter Connections with Sweep Elbows | 2290590
    Waterco Multiport Valve for use with Sand Filters | Valve with Piping Kit | 2" Side Mount Valve & Filter Connections with Sweep Elbows | 2290590

    $139.61
OVERVIEW
Waterco fibreglass filters embody the latest in fibreglass winding technology. Waterco fibreglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fibreglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fibreglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

The Micron Series filters are constructed from anti-corrosive, nontoxic materials and are engineered to withstand the high flow and pressures of today's pool and industrial systems.

Features
  • Hydraulically balanced laterals to maximize water flow and filtration
  • Media Sold Separately
  • Large filter base for stable floor mounting
  • Fibreglass wound tank, UV and Corrosion Resistant
  • Pressure gauge
  • Inflow diffuser for even distribution of water flow across the filter bed
  • Manual Drain
  • Multiport valve sold separately
Micron Fibreglass Filters
Micron filters operate on the basis of "depth filtration"; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter's laterals and exit via the filter's Multiport valve.

Filament Wound Filters
Micron fibreglass filters embody the latest in fibreglass winding technology. Micron fibreglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fibreglass filament. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of high quality fibreglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Simple Maintenance
The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter's Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

Specifications:
Model No. Valve Size
(in.)
Bed Depth
(in.)
Inner Dia.
(in.)
Filter Area
(Sq. Ft.)
Max Flow
(gpm)
Max Pool Size
(gal.)
Backwash Flow
Rate
(gpm)
Media
Volume
(cubic ft.)
Sand
16/30
0.6-12
(lb.)
Glass Pearl
0.6-0.8
(lb)
Zeoplus
1-2.2
(lb)
SM500 1.5 11.4 19.7 2.12 42 15,200 32-42 2.3 225 240 163.14
SM600 2.0 14.2 23.6 3.05 61 21,900 46-61 4 400 450 253.53
SM750 2.0 15.7 29.6 4.76 96 34,200 71-95 6.9 700 750 381.4
SM900 2.0 17.3 35.5 7.01 140 50,500 103-140 10.6 1,050 1,175 840


SPECIFICATIONS
Tank Diameter
24"
Valve Position
Side
Square Foot
3.05
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
WARRANTY COVER
If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.

WARRANTY PERIOD
All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

SCHEDULE OF PARTS WARRANTY PERIODS
All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.

Product Warranty Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends 3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser 2 Years
• Motor mechanical seal & capacitor 1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps 2 Years
• ¹Fulflo pressure pump 2 Years
FILTER
• ¹Thermoplastic filter tank 5 Years 5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank 10 Years Not applicable
• ¹Cartridge / Bag filter tank 5 Years 5 Years (Refer Column A)
• ¹DE / Pearlite filter tank 3 Years 2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra 3 Years
¹Except: All internal parts including fittings, valves,
gauges, cartridge elements, DE / Pearlite grids.
1 Year
• All multiport valves used on media (granular) or
DE / Pearlite
1 Year
CHEMFLO PLUS
• Controller / Feeder 3 Years
• Sensor 1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell 3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack 3 Years
¹&²HEAT PUMPS 3 Years
• ¹Compressor 3 Years
• ²Titanium Heat Exchanger 10 Years
• All other components 2 Years
GAS HEATER 2 Years
DIGIHEAT 2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights 2 Years
• Litestream LED Pool Lights 1 Year
• Light Transformers 1 Year
AUTOMATION PRODUCTS
• Waterco Controllers 2 Years
• Waterco Temperature Sensor 1 Year

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 10/10/19. For the most current information and full warranty policy please visit www.waterco.us.
