Home Spa Spa Control Packs Hydro Quip Control Packs HydroQuip CS6000B Slide Balboa Duplex Series Spa Control Pack | 120V - 240V | CS6109B-US
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

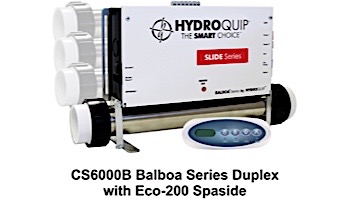

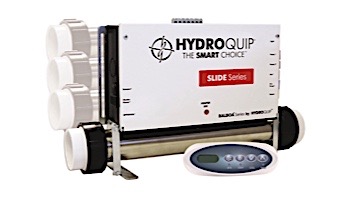

HydroQuip CS6000B Slide Balboa Duplex Series Spa Control Pack | 120V - 240V | CS6109B-US

HydroQuip CS6000B Slide Balboa Duplex Series Spa Control Pack | 120V - 240V | CS6109B-US HydroQuip CS6000B Slide Balboa Duplex Series Spa Control Pack | 120V - 240V | CS6109B-US HydroQuip CS6000B Slide Balboa Duplex Series Spa Control Pack | 120V - 240V | CS6109B-US
This item has been discontinued.

  • Balboa Platform VS500Z
  • Pump 1 - 2 SPD
  • Pump 2 - N/A
  • Blower - N/A
  • Circ Pump - YES
  • Heater Wattage - 5.5kW wired 240V - 1.375kW wired 120V
OVERVIEW
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
WE SUGGEST THE FOLLOWING ITEM(S) AS A SUITABLE ALTERNATIVE
Recommended Replacement
HydroQuip Water Pro Series Slide Heater with TP200 Spaside | 5.5Kw 2 Circuits | 50-BP5-200-7S-K
HydroQuip Water Pro Series Slide Heater with TP200 Spaside | 5.5Kw 2 Circuits | 50-BP5-200-7S-K

$429.20
OVERVIEW

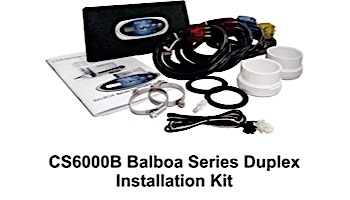

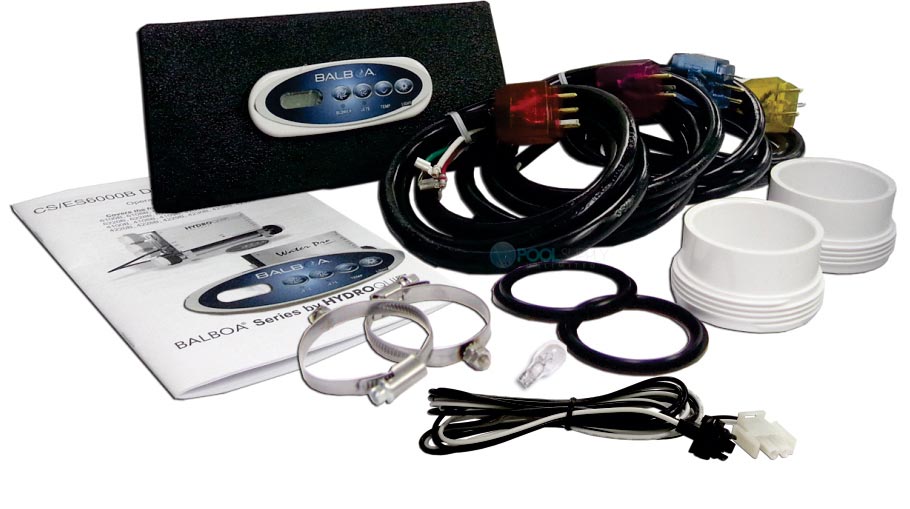

 Installation Kit

Kit Includes:
  • Spaside Control
  • Spaside Labels
  • Spaside Adapter Plate 8.5"L x 4"H
  • 48" Component Cords
  • 2" Tailpieces w/ Gaskets
  • 12V Light Assembly
  • Heater Clamps
  • Cord Adapters
Standard Features:
  • M7® Technology Equipped
  • SLIDE 1.375/5.5KW, 15” Slide Heater Assembly
  • EZ Access Foot Heater
  • Spaside Control
  • 12V Light Assembly
  • All Circuits Convertible to 120 or 240VAC
  • Heater “ON” Indicator Light
  • Standard, Economy & Sleep Modes
  • Freeze Protection
  • Lighted Smart Cords
  • Easy To Install & Service
  • Detailed Owner’s Manual & Wiring Diagram
  • US and Canada UL Recognized
 Options:
  • Versi-Heat Remote Heater with 60” Heater Cord
  • Less Heater Models
  • Various Heater Wattages
 System Specifications:
  • Electrical Input:
    • Single Phase 120/240VAC 60HZ
  • Electrical Output:
    •  Circuit Maximum Amps
       Heater
       23A
       Pump 12A
       Blower 12A
       Ozone 1A
       Circ. Pump
       4A
       Light 1A

  • Required Flow Rate:
    • 25GPM
  • Dimensions:
    • 15”Wx11”Hx5”D
  • Shipping Weight:
    • 18 LBS


Brand: Hydro-Quip
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 1 answer
what is a slide spa ?
A shopper on Sep 27, 2021
BEST ANSWER: It is a slide heater. You can slide it up the back of the control box to fit the height of your plumbing.
Can this system be used without the circulation pump?
A shopper on Feb 20, 2021
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
To all original purchasers, HYDROQUIP warrants its products to be free from defects in material and workmanship for a period of one year from the date of purchase.

HYDROQUIP will repair or replace the part, which in our opinion, is defective.

This warranty excludes damage as a result of: normal wear, freezing, low voltage, chemical abuse, accident, negligence, alteration, improper installation, use or care.

To obtain warranty service, return defective products within the warranty period to HYDROQUIP.

Purchaser is responsible for removal or re-installation labor, freight charges, or any other such costs incurred in obtaining warranty service.

HYDROQUIP assumes no responsibility for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

This information was updated on 10/21/19. For the most current information and full warranty policy please visit www.hydroquip.com.
