Home Jandy JE Series Heat Pump 137,000 BTU | Single Phase 230V 60HZ | 6.3 COP | JE3000T Parts

Jandy JE Series Heat Pump 137,000 BTU | Single Phase 230V 60HZ | 6.3 COP | JE3000T Parts

Back to Product

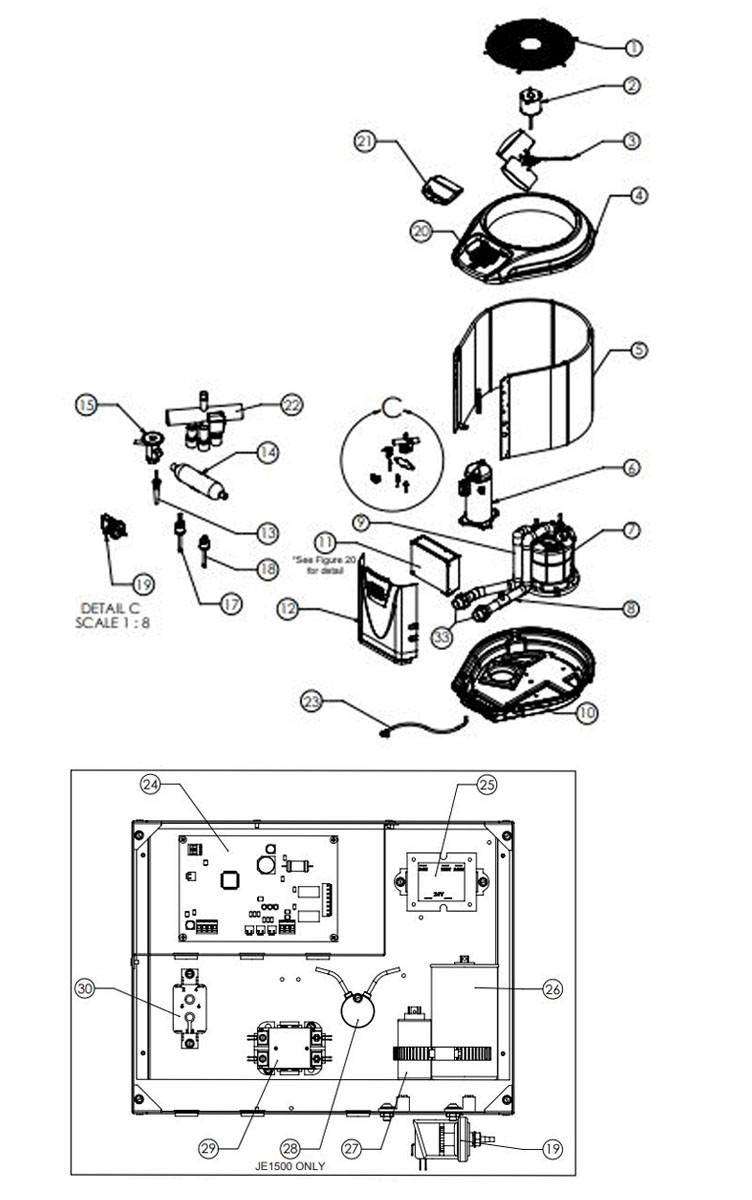

Jandy JE Series Heat Pump 137,000 BTU | Single Phase 230V 60HZ | 6.3 COP | JE3000T Parts Schematic
1
Jandy JE Series Fan Grille 2000/2500/3000 | R0571800
Jandy JE Series Fan Grille 2000/2500/3000  | R0571800
This item has been discontinued.

2
Jandy JE Series Fan Motor 2000/2500/3000 | R0572000
Jandy JE Series Fan Motor 2000/2500/3000 | R0572000
Quantity:
$396.63

3
Jandy JE Series Fan Blade Heat Pump | 2000/2500/3000 | R0572200
Jandy JE Series Fan Blade Heat Pump | 2000/2500/3000 | R0572200
This item has been discontinued.

4
Jandy JE Series Fan Top Heat Pump | 2000/2500/3000 | R0572400
Jandy JE Series Fan Top Heat Pump | 2000/2500/3000 | R0572400
Quantity:
$494.06

5
Jandy JE Series Evaprator Coil / Guard Heat Pump 3000 | R0572700
Jandy JE Series Evaprator Coil / Guard Heat Pump 3000 | R0572700
Quantity:
$1,717.14

6
Jandy JE Series Compressor Heat Pump 3000 | R0573100
Jandy JE Series Compressor Heat Pump 3000 | R0573100
Quantity:
$1,640.83

7
Jandy 300 JE Heat Pump Condenser | R0578000
Jandy 300 JE Heat Pump Condenser | R0578000
Quantity:
$1,640.70

8
Jandy JE Series Water Manifold Inlet 3000 | R0573400
Jandy JE Series Water Manifold Inlet 3000 | R0573400
Quantity:
$137.80

9
Jandy JE Series Water Manifold Outlet 3000 | R0573700
Jandy JE Series Water Manifold Outlet 3000 | R0573700
Quantity:
$109.59

10
Jandy JE Series Base | 2000/2500/3000 | R0573900
Jandy JE Series Base | 2000/2500/3000 | R0573900
Quantity:
$421.81

11
Jandy JE Series Electrical Box Cover with Hardware | R0574000
Jandy JE Series Electrical Box Cover with Hardware | R0574000
Quantity:
$551.37

12
Jandy JE Series Heat Pump Front Panel 3000 | R0574500
Jandy JE Series Heat Pump Front Panel 3000 | R0574500
Quantity:
$298.68

14
Jandy JE Series Filter Drier 2000/2500/3000 | R0574800
Jandy JE Series Filter Drier 2000/2500/3000 | R0574800
Quantity:
$70.34

15
Jandy JE Series Thermal Expansion Valve 3000 | R0575200
Jandy JE Series Thermal Expansion Valve 3000 | R0575200
Quantity:
$373.61

16
Jandy JE Series Heat Pump Air Temperature Sensor | R0575300
Jandy JE Series Heat Pump Air Temperature Sensor | R0575300
This item is no longer available.

17
Jandy JE Series Heat Pump High Pressure Switch | R0575400
Jandy JE Series Heat Pump High Pressure Switch | R0575400
Quantity:
$56.84

18
Jandy JE Series Heat Pump Low Pressure Switch | R0575500
Jandy JE Series Heat Pump Low Pressure Switch | R0575500
Quantity:
$56.84

19
Jandy JE Series Heat Pump Water Pressure Switch | R0575600
Jandy JE Series Heat Pump Water Pressure Switch | R0575600
A Replacement is available for this item.
This item has been discontinued.

21
Jandy Control Cover Smoked AE-TI | R3000601
Jandy Control Cover Smoked AE-TI | R3000601
This item has been discontinued.

22
Jandy JE Series 3000TR Reversing Valve | R0575900
Jandy JE Series 3000TR Reversing Valve | R0575900
This item has been discontinued.

23
Jandy JE Series Winterizing Drain Kit 2000/2500/3000 | R0576000
Jandy JE Series Winterizing Drain Kit 2000/2500/3000 | R0576000
Quantity:
$41.16

24
Zodiac Jandy Power Interface PCB Board | R3009200
Zodiac Jandy Power Interface PCB Board | R3009200
Quantity:
$432.90

25
Jandy JE Series Heat Pump Transformer | R0576200
Jandy JE Series Heat Pump Transformer | R0576200
A Replacement is available for this item.
This item has been discontinued.

26
Jandy JE Series 1HP Run Capacitor 2000/2500/3000 | R0576400
Jandy JE Series 1HP Run Capacitor 2000/2500/3000 | R0576400
This item has been discontinued.

27
Jandy JE Series Fan Capacitor 2000/2500/3000 | R0576600
Jandy JE Series Fan Capacitor 2000/2500/3000 | R0576600
Quantity:
$28.26

29
Jandy JE Series 1PH Heat Pump Contactor | R0576800
Jandy JE Series 1PH Heat Pump Contactor | R0576800
Quantity:
$64.87

30
Jandy JE Series Heat Pump Fan Relay | R0577000
Jandy JE Series Heat Pump Fan Relay | R0577000
Quantity:
$41.89

32
Jandy JE Series Anchor Bracket Set T2000/2500/3000 | R0577300
Jandy JE Series Anchor Bracket Set T2000/2500/3000 | R0577300
Quantity:
$37.45

33
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Quantity:
$99.68

34
Jandy JE Series Heat Pump External Bypass | R0578900
Jandy JE Series Heat Pump External Bypass | R0578900
Quantity:
$284.84
