Pentair Tagelus 19" TA Fiberglass Sand Filter with Six Way 1.5" Multiport Backwash Valve | TA40D 144126 Parts

Back to Product

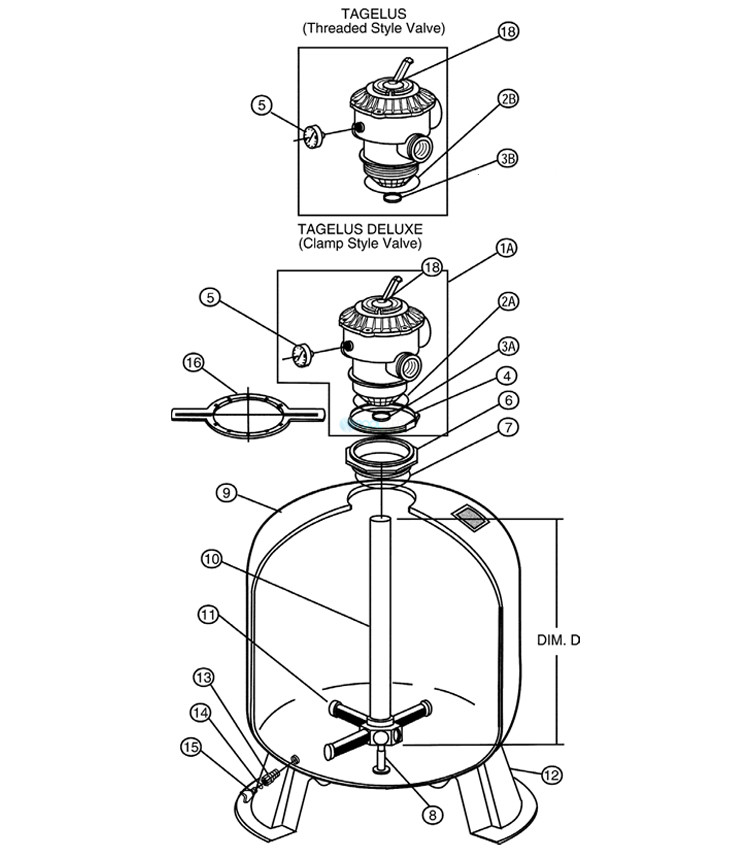

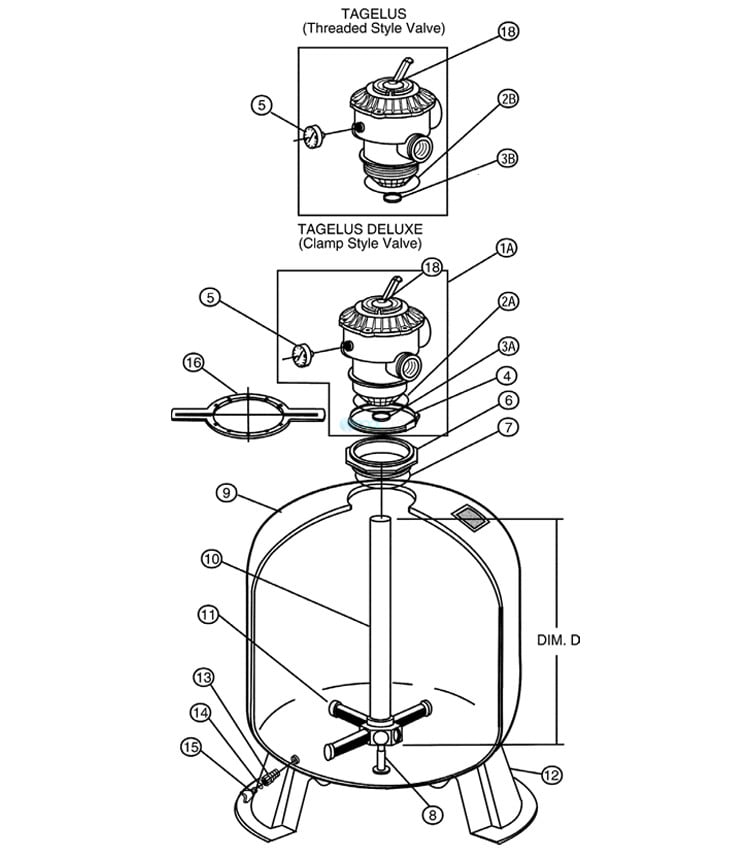

Pentair Tagelus 19" TA Fiberglass Sand Filter with Six Way 1.5" Multiport Backwash Valve  | TA40D 144126 Parts Schematic
1A
Pentair Tagelus Sand Top Mount Multi-Port Valve Kit | 1.5" Clamp | 262506
Pentair Tagelus Sand Top Mount Multi-Port Valve Kit | 1.5" Clamp | 262506
Quantity:
$139.34

2A
Pentair O-Ring 3/16"X4-3/4" | 272541
Pentair O-Ring 3/16"X4-3/4" | 272541
Quantity:
$12.71

2B
Pentair Closure O-Ring Triton II White | 154493
Pentair Closure O-Ring Triton II White | 154493
Quantity:
$10.00

3B
Pentair O-Ring Standpipe 1/8"x 1-7/8" | 155064
Pentair O-Ring Standpipe 1/8"x 1-7/8" | 155064
Quantity:
$4.32

4
Pentair Tank Clamp Assembly | Meteor, Sand Dollar, Tagelus, Cristal Flo II | Plastic | 152165
Pentair Tank Clamp Assembly | Meteor, Sand Dollar, Tagelus, Cristal Flo II | Plastic | 152165
Quantity:
$28.20

5
Pentair OEM Pressure Gauge with Clean-Dirty Indicator | .25" NPT Bottom Mount | 190059 190059Z
Pentair OEM Pressure Gauge with Clean-Dirty Indicator | .25" NPT Bottom Mount | 190059 190059Z
Quantity:
$33.47

6
Pentair Buttress Thread Flange Adapter 6" | 154555
Pentair Buttress Thread Flange Adapter 6" | 154555
This item has been discontinued.

6
Pentair V Thread Flanged Adapter | 155225
Pentair V Thread Flanged Adapter | 155225
Quantity:
$37.96

7
Pentair O-Ring Valve Adapter 6" | 154494
Pentair O-Ring Valve Adapter 6" | 154494
Quantity:
$5.82

8
Pentair Center Pipe Stabilizer | 155002
Pentair Center Pipe Stabilizer | 155002
Quantity:
$24.18

9
Pentair Tank and Foot Assembly with Valve Adapter | 155276
Pentair Tank and Foot Assembly with Valve Adapter | 155276
Quantity:
$770.70

9
Pentair Tank and Foot Assembly with Buttress Thread | Black | 155342
Pentair Tank and Foot Assembly with Buttress Thread | Black | 155342
Quantity:
$748.69

10
Pentair Center Piping Assembly with Hub 17.75" TA40/TA40D | 155061
Pentair Center Piping Assembly with Hub 17.75" TA40/TA40D | 155061
Quantity:
$43.87

11
Pentair Lateral Assembly 6-11/16" | 152290 152290Z
Pentair Lateral Assembly 6-11/16" | 152290 152290Z
Quantity:
$10.86

12
Pentair Tank Foot | Black | 154926
Pentair Tank Foot | Black | 154926
Quantity:
$87.13

13
Pentair Spigot Sand Filter Drain 3/4 Inch NPT Connection | 154698
Pentair Spigot Sand Filter Drain 3/4 Inch NPT Connection | 154698
Quantity:
$30.06

14
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$3.51

15
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$14.56

16
Pentair Triton II 6" Closure Wrench | 154512
Pentair Triton II 6" Closure Wrench | 154512
Quantity:
$29.66

18
Pentair Top Mount Valve Label | 272599
Pentair Top Mount Valve Label | 272599
Quantity:
$11.29
