Home Raypak Raytherm P1571 #57 Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,571,000 MBTU | 001372 Parts

Raypak Raytherm P1571 #57 Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,571,000 MBTU | 001372 Parts

Back to Product

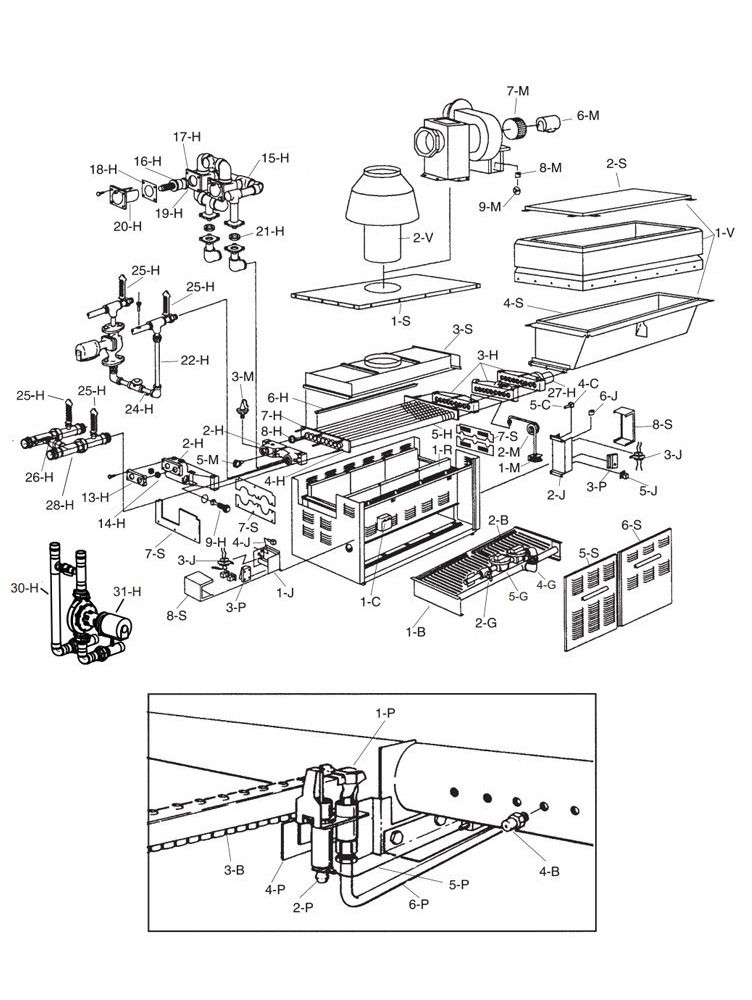

Raypak Raytherm P1571 #57 Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,571,000 MBTU | 001372 Parts Schematic
3-B
Raypak Stainless Steel Burner | 301210
Raypak Stainless Steel Burner | 301210
A Replacement is available for this item.
This item has been discontinued.

4-B
Raypak Burner Orifice #57 | Propane Gas | 350083F
Raypak Burner Orifice #57 | Propane Gas | 350083F
Quantity:
$18.08

1-C
Raypak Auto Dualstat | 010863F
Raypak Auto Dualstat | 010863F
Quantity:
$412.08

1-C
Raypak Auto Reset High Limit 240 Degree F | 007141F
Raypak Auto Reset High Limit 240 Degree F | 007141F
Quantity:
$172.92

2-C
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Raypack High Limit with Manual Reset 40 -180 Degree F | 009554F
Quantity:
$273.90

3-C
Raypak Low Water Cutoff | 006202F
Raypak Low Water Cutoff | 006202F
Quantity:
$433.93

4-C
Raypak Flow Switch | 007142F
Raypak Flow Switch | 007142F
Quantity:
$208.09

5-C
Raypak Flow Switch Paddle | 004079F
Raypak Flow Switch Paddle | 004079F
Quantity:
$85.64

5-C
Raypak Flow Switch Paddle Kit | 010026F
Raypak Flow Switch Paddle Kit | 010026F
Quantity:
$100.45

6-C
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Raypak Mechanical Thermostat Control | Millivolt Units | 003346F
Quantity:
$119.41

8-C
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit | 006040
Raypak I-6 Temperature Limiting - Max 100 Fahrenheit  | 006040
Quantity:
$290.86

9-C
Raypak Poolstat 66-106F with Cover | 010353
Raypak Poolstat 66-106F with Cover | 010353
Quantity:
$238.19

1-G
Raypak Valve Gas Manual B Kit | 007195F
Raypak Valve Gas Manual B Kit | 007195F
Quantity:
$50.25

2-G
Raypak Manual A Valve | 007190F
Raypak Manual A Valve | 007190F
Quantity:
$98.86

3-G
Raypak LP Pilot Regulator 3/8" | 004061F
Raypak LP Pilot Regulator 3/8" | 004061F
Quantity:
$116.21

4-G
RayPak Auto On Off Valve | 004094F
RayPak Auto On Off Valve | 004094F
Quantity:
$683.44

5-G
Raypak LP Combination Valve 1.25" | 600693
Raypak LP Combination Valve 1.25" | 600693
Quantity:
$390.78

5-G
Raypak Pilot Gas Valve | 600562 | 100-10000432
Raypak Pilot Gas Valve | 600562 | 100-10000432
Quantity:
$78.43

1-H
Raypak Heat Exchanger Assembly 2 Pass (without Pump Header) | 002487F
Raypak Heat Exchanger Assembly 2 Pass (without Pump Header) | 002487F
Quantity:
$4,363.16

2-H
Raypak Inlet-Outlet Header | 002216F
Raypak Inlet-Outlet Header | 002216F
Quantity:
$805.81

3-H
002492F (ASME) RETURN HEADER 1287-1826BR
002492F (ASME) RETURN HEADER 1287-1826BR
Quantity:
$1,157.72

3-H
Raypak Return Pump Header | 002224F
Raypak Return Pump Header | 002224F
Quantity:
$1,308.65

7-H
001051F STUD BOLT KIT MODEL 315A
001051F STUD BOLT KIT MODEL 315A
Quantity:
$93.60

7-H
Raypak Stud Bolt Kit with Pump Header | 001527F
Raypak Stud Bolt Kit with Pump Header | 001527F
Quantity:
$156.31

8-H
Raypak Gasket Set for Header | 9 Gaskets Included | 800001B
Raypak Gasket Set for Header | 9 Gaskets Included | 800001B
Quantity:
$31.91

11-H
350338 350338 SENSOR WELL 1/2" RAY
350338 350338 SENSOR WELL 1/2
Quantity:
$20.86

12-H
Raypak Well Retaining Clip | 300203
Raypak Well Retaining Clip | 300203
Quantity:
$18.01

17-H
Raypak O-Ring | 005893F
Raypak O-Ring | 005893F
Quantity:
$10.92

21-H
Raypak Flange Gasket | 005897F
Raypak Flange Gasket | 005897F
Quantity:
$32.35

24-H
Raypak Check Valve | 501581
Raypak Check Valve | 501581
Quantity:
$50.04

25-H
600133 THERMOMETER BRASS VERTICAL
600133 THERMOMETER BRASS VERTICAL
Quantity:
$91.81

26-H
Raypak Ball Valve WOG | 501647
Raypak Ball Valve WOG | 501647
Quantity:
$76.38

27-H
Raypak Integral Pump 4.25" Impeller 115V | 004844F
Raypak Integral Pump 4.25" Impeller 115V | 004844F
Quantity:
$1,233.18

28-H
Raypak Bypass Plumbing Assembly | 009507F
Raypak Bypass Plumbing Assembly | 009507F
Quantity:
$2,640.19

30-H
Raypak Bypass Plumbing Assembly | 012408F
Raypak Bypass Plumbing Assembly | 012408F
Quantity:
$4,504.46

31-H
Raypak Pump 115V Inline 2.5in | 007348F
Raypak Pump 115V Inline 2.5in | 007348F
Quantity:
$2,355.01

32-H
Raypak Pump Flange Gasket Taco 1600 Series | 013423F
Raypak Pump Flange Gasket Taco 1600 Series | 013423F
Quantity:
$109.16

1-J
Raypak J-Box with Lockout Pro/NG | 002676F
Raypak J-Box with Lockout Pro/NG | 002676F
Quantity:
$615.29

2-J
Raypak J-Box with Lockout Pro/NG | 002230F
Raypak J-Box with Lockout Pro/NG | 002230F
Quantity:
$667.44

2-J
Raypak J-Box with Lockout and Pump Relay | 005588F
Raypak J-Box with Lockout and Pump Relay | 005588F
Quantity:
$796.53

2-J
Raypak J Box with Lockout and Pump Relay Board | 006494F
Raypak J Box with Lockout and Pump Relay Board | 006494F
Quantity:
$566.62

3-J
Raypak Transformer for Hi-Delta Series | 006533F
Raypak Transformer for Hi-Delta Series | 006533F
Quantity:
$64.69

4-J
Raypak Toggle Switch Kit (SPST) | 008079F
Raypak Toggle Switch Kit (SPST) | 008079F
Quantity:
$40.94

5-J
Raypak Relay SPDT 24V | 007377F
Raypak Relay SPDT 24V | 007377F
Quantity:
$66.04

6-J
Raypak Pump Relay PC Board | 004675F
Raypak Pump Relay PC Board | 004675F
Quantity:
$139.11

1-M
Raypak Heater Pressure Switch | 062237B
Raypak Heater Pressure Switch | 062237B
Quantity:
$62.00

2-M
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Raypak Pressure Switch Tube Kit 334-1826 | 003273F
Quantity:
$139.11

3-M
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Raypak Pressure Relief Valve 125 PSI | 261-401 & 263-403 | 007224F
Quantity:
$88.28

4-M
Raypak Deliming Kit | 052870F
Raypak Deliming Kit | 052870F
Quantity:
$351.18

5-M
Raypak Temperature & Pressure Gauge Kit | 007399F
Raypak Temperature & Pressure Gauge Kit | 007399F
Quantity:
$63.35

6-M
Raypak Power Vent Motor Kit | 951112F
Raypak Power Vent Motor Kit | 951112F
Quantity:
$1,029.60

7-M
Raypak Power Vent Wheel | 951113F
Raypak Power Vent Wheel | 951113F
Quantity:
$512.10

8-M
Raypak D-2 Power Vent PC Board | 005503F
Raypak D-2 Power Vent PC Board | 005503F
Quantity:
$137.05

9-M
Raypak Power Vent Pressure Switch | 601212
Raypak Power Vent Pressure Switch | 601212
Quantity:
$52.84

10-M
Raypak Touch-Up Paint | Green | 750125
Raypak Touch-Up Paint | Green | 750125
This item has been discontinued.

10-M
Raypak Touch-Up Paint | Dark Grey | 750126
Raypak Touch-Up Paint | Dark Grey | 750126
This item has been discontinued.

10-M
Raypak Touch-Up Paint | Cool Dark Gray | 750256
Raypak Touch-Up Paint | Cool Dark Gray | 750256
This item has been discontinued.

1-P
002235F PILOT 334-4000 E11 PRO-KIT
002235F PILOT 334-4000 E11 PRO-KIT
Quantity:
$182.92

2-P
Raypak Propane Gas Pilot Orifice | 600894
Raypak Propane Gas Pilot Orifice | 600894
Quantity:
$24.18

3-P
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Raypak Electronic Ignition Control with Lockout LP Propane | 004818B
Quantity:
$176.29

4-P
Raypak Pilot Mounting Bracket 926-1826 | 004728F
Raypak Pilot Mounting Bracket 926-1826 | 004728F
Quantity:
$74.13

5-P
Raypak Ignition Wire IID | 016514F
Raypak Ignition Wire IID | 016514F
Quantity:
$69.47

6-P
400013 PILOT TUBE ALUM 1/4"OD x .035"
400013 PILOT TUBE ALUM 1/4
Quantity:
$4.88

7-P
Raypak High Tension Wire 334-824 | 002663B
Raypak High Tension Wire 334-824 | 002663B
Quantity:
$55.00

1-R
Raypak 1-R Refractory Kit | 001511F
Raypak 1-R Refractory Kit | 001511F
Quantity:
$526.42

10-S
Raypak Low Water Cut Off Control Cover | 016629F
Raypak Low Water Cut Off Control Cover | 016629F
Quantity:
$17.68

7-S
Raypak Access Panel Group 2 1/2" with Pump Header | 002304F
Raypak Access Panel Group 2 1/2" with Pump Header | 002304F
Quantity:
$118.11

7-S
Raypak Access Panel Group 2 1/2" without Pump | 002303F
Raypak Access Panel Group 2 1/2" without Pump | 002303F
Quantity:
$118.11

8-S
Raypak Sheet Metal Junction-Box | 002668F
Raypak Sheet Metal Junction-Box | 002668F
Quantity:
$168.28

9-S
Raypak Cover for Integral Return Header Mounted Pump | 002671F
Raypak Cover for Integral Return Header Mounted Pump | 002671F
Quantity:
$132.83
