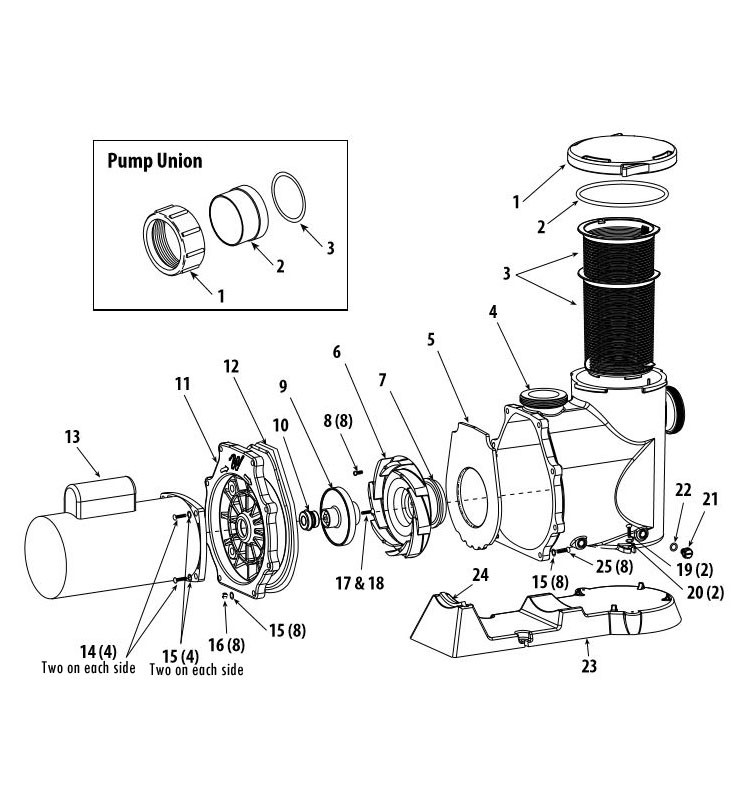

Waterway SVL56 High Flow 56-Frame 3HP Energy Efficient Full Rated Pool Pump 230V | SVL56E-130 Parts Schematic
13
Waterway SVL56E-130 Motor | 56 Frame 3HP 230V B844 | 3511450
Waterway SVL56E-130 Motor | 56 Frame 3HP 230V B844 | 3511450
This item has been discontinued.

1
Waterway Lid Trap SVL56 | 511-1310
Waterway Lid Trap SVL56 | 511-1310
Quantity:
$61.73

2
Waterway Trap Lid O-Ring | 805-0439
Waterway Trap Lid O-Ring | 805-0439
Quantity:
$12.46

3
Waterway SVL56 Strainer Basket | 319-1310
Waterway SVL56 Strainer Basket | 319-1310
Quantity:
$33.14

4
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Waterway SVL56 Hi-Flo Volute Housing | 315-1300
Quantity:
$234.76

5
Waterway Diffuser Plate - High-Pressure | 319-1260
Waterway Diffuser Plate - High-Pressure | 319-1260
This item is no longer available.

6
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Waterway SVL56 Hi-Flo Diffuser | 310-3300
Quantity:
$69.53

7
Waterway Diffuser O-Ring #238 | 805-0238
Waterway Diffuser O-Ring #238 | 805-0238
Quantity:
$6.21

8
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Waterway Diffuser Screw Bolt #4-40 | 2 Required | 819-0018
Quantity:
$5.77

9
Waterway 3HP SVL56E-130 Impeller Assembly | High Flow | 310-3680
Waterway 3HP SVL56E-130 Impeller Assembly | High Flow | 310-3680
Quantity:
$45.40

10
Waterway Seal Set Viton | 319-3110B
Waterway Seal Set Viton | 319-3110B
A Replacement is available for this item.
This item has been discontinued.

11
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Waterway SVL56 Hi-Flo Volute FacePlate | 311-1400
Quantity:
$69.19

12
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Waterway SVL56 Hi-Flo Face Plate Gasket | 711-4290
Quantity:
$20.18

14
Waterway 3/8" - 16 x 18" Screw | 819-0011
Waterway 3/8" - 16 x 18" Screw | 819-0011
Quantity:
$6.15

15
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Waterway Flat Washer 3/8" Hi-Flo Type B | 820-0017
Quantity:
$3.56

16
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Waterway 3/8" SVL56 Hi-Flo 16 Fin Serrated Hex Nut | 820-0016
Quantity:
$7.32

17
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Waterway Screw | #20 x 1" Left Hand Threaded | 819-4360
Quantity:
$6.60

18
Waterway Left Hand Screw Gasket | 711-4300
Waterway Left Hand Screw Gasket | 711-4300
Quantity:
$10.13

19
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Waterway Hex Screw Slotted | 1/4" x 1-1/4" | 819-0013
Quantity:
$3.27

20
Waterway Flat Washer | 820-0018
Waterway Flat Washer | 820-0018
A Replacement is available for this item.
This item is no longer available.

21
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Waterway Quarter Slot Drain Plug | 3/8" Black | 715-1201
Quantity:
$5.23

22
Waterway Drain Plug O-Ring | 805-0112
Waterway Drain Plug O-Ring | 805-0112
A Replacement is available for this item.
This item has been discontinued.

23
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Waterway SVL56 Hi-Flo Pump Base | 672-1300
Quantity:
$43.28

24
Waterway Motor Support Strip | 672-1310
Waterway Motor Support Strip | 672-1310
Quantity:
$13.30

25
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Waterway Hex Screw | 3/8" - 16 x 2" | 819-0016
Quantity:
$7.77

1
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Waterway Union Nut 2-1/2" Tailpiece | 415-4211
Quantity:
$12.12

2
Waterway 2" Tailpiece | 417-5971
Waterway 2" Tailpiece | 417-5971
Quantity:
$5.82

2
Waterway 2 1/2" Tailpiece | 417-6001
Waterway 2 1/2" Tailpiece | 417-6001
Quantity:
$6.18

3
Waterway Heater Union Gasket | 2.5" | 711-6020
Waterway Heater Union Gasket | 2.5" | 711-6020
Quantity:
$3.80

N/S
Waterway Union Assembly | 400-6021B
Waterway Union Assembly | 400-6021B
Quantity:
$10.64

N/S
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Waterway 2.5" FBTX2"S Pump Union | Black | 400-5971B
Quantity:
$12.64
