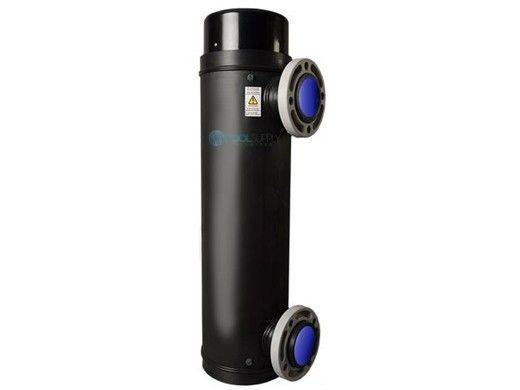

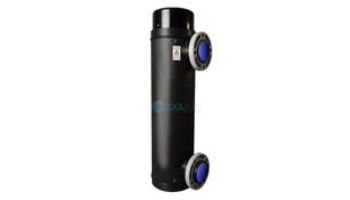

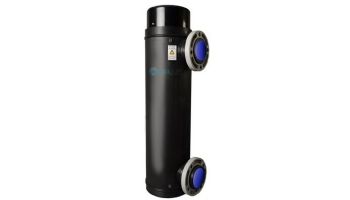

Introducing the ELP HDPE Series



UV disinfection systems engineered and designed for disinfection and dechloramination of semi-commercial pools & spas

The ELP series of UV disinfection systems is available in High Density Polyethelane (HDPE). The ELP HDPE is constructed from material that is ideal for salt water pools or pools with high total dissolved solids (TDS). UV light provides effective inactivation and destructive of microorganisms such as bacteria, viruses, molds and pathogens without adding additional chemicals. Installing a UV system reduces chemical usage and eliminates the formation of chlorine by-products called chloramines. Chloramine exposure commonly leads to stinging (red) eyes, skin irritations, asthma and allergies.

Sizing your UV system is important and based on flow rate. The ELP HDPE is suited for flow rates from 79 gpm to 396 gpm.

Max Flow Rate GPM	79
Dose mJ per cm² at Recommended Flow Rate	60mJ/cm²
Qty of Lamps/UV Lamp Power	2 x 87W
Diameter of Chamber	12"
Total Height	39"
Intel/Outlet Diameter	3"
Power Input	120/240v 50/60hz
Housing	HDPE
Ballast	Electronic, hardwired
Lamp	High output - low pressure (approx. 16,000 hrs)
Indoor/Outdoor Installation	Yes
Limited Warranty	2 Years (1 year lamp pro-rated)
Plumbing Options	ANSI flanges

Delta Ultraviolet Corporation (“Delta UV”) warrants to every original Purchaser of Delta UV’s E/D & EP/EA-Series Ultraviolet Unit, that the product will be free from defects of the type described below under the heading “Covered Items” (“Defect”) for a period of two (2) years following the date of installation. This warranty shall only become effective after the product is registered with Delta UV. If at any time during the Limited Warranty period, any Defect prevents the product from performing correctly in an application for which it was designed, Delta UV will repair or replace the product (at Delta UV’s option) as outlined herein:



This Limited Warranty DOES cover the UV unit, its components, and defects thereof against:



This Limited Warranty DOES NOT cover the following UV unit defects:
