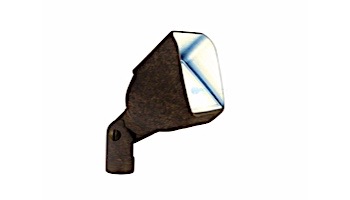

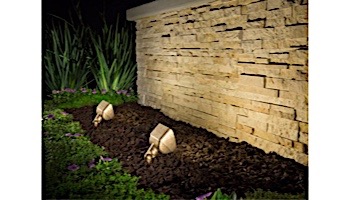

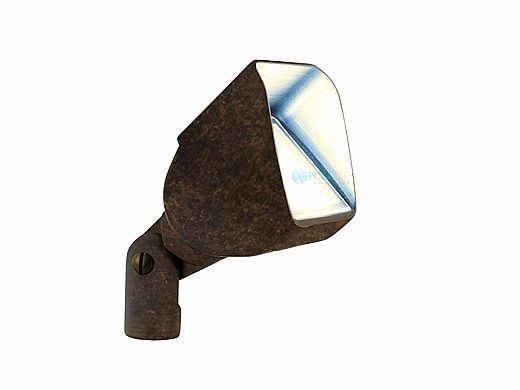

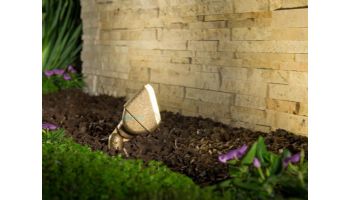

LC LED Up Light The largest wall-wash up light, the LC, projects a broad spectrum of light on large walls and spaces. It is available in 1, 3, 6 and 9LED, and is available in an array of finishes to suit the needs of any design that calls for a large-span wall washing up light.

Features

• Die-cast aluminum or brass
• Cree® integrated LEDs
• Color temperature filters
• Phase and PWM dimmable
• Two-layer marine-grade anodization and powder coat finish
• ProAim™ adjustability
• Compatible with Luxor® technology
• Input voltage: 10-15V

Output	1LED	3 (ZDC)	6LED	9LED
Halogen Lumen (Output Equivalent)	10 Watt	20 Watt	35 Watt	50 Watt
Input Voltage	10 to 15V	10 to 15V (11 to 15V)	10 to 15V	10 to 15V
VA Total	2.4	4.5	13.5	13.5
Efficacy (Lumens/Watt)	30.9	36.5	36.1	36.8
Watts Used	2.0	4.2 (9.1)	10.1	11.2
Max Lumen	63	154	331	436
CRI (Ra)	78	79	78.8	82.1
CCT
Amber Filter	2700K	2700K (ZDC: N/A)	2700K	2700K
Green Filter	4500K	4500K (ZDC: N/A)	4500K	4500K
Blue Filter	5200K	5200K (ZDC: N/A)	5200K	5200K
Minimum Rated Life (L70)	50,000 Hrs	50,000 Hrs	50,000 Hrs	50,000 Hrs
