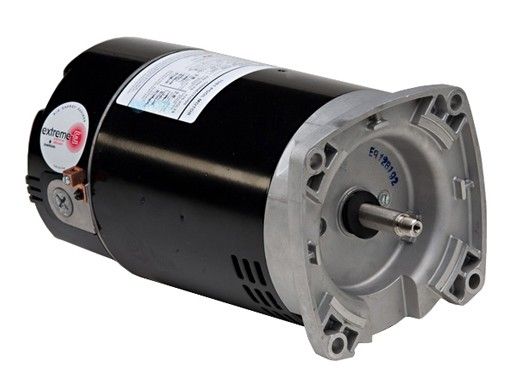

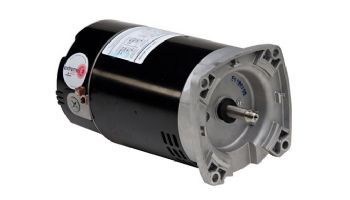

Home Replacement Square Flange Pool & Spa 2-Speed Motor | 1HP Full-Rated/1.5HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479307 | B982 | EB982 | ASB2982
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Replacement Square Flange Pool & Spa 2-Speed Motor | 1HP Full-Rated/1.5HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479307 | B982 | EB982 | ASB2982

Replacement Square Flange Pool & Spa 2-Speed Motor | 1HP Full-Rated/1.5HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479307 | B982 | EB982 | ASB2982
$289.00

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Premium Efficient
  • Switchless Design
  • 6.5" Frame Diameter
  • Double Sealed Ball Bearing
  • Full Service Factor, Full Rated
  • Part No: EB982 Replaced By: ASB2982
Purchase Options

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Waterway Champion 56-Frame 1HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 230V | CHAMPS-210
Waterway Champion 56-Frame 1HP Standard Efficiency Maximum Rated 2-Speed Pool Pump 230V | CHAMPS-210
Replacement Parts

Jandy PlusHP Full Rate Two-Speed Pool Pump | 1.0HP 230V | PHPF1.0-2
Jandy PlusHP Full Rate 2-Speed Pump - 1.0HP 230V | PHPF1.0-2
Replacement Parts

Hayward Max-Flo XL Pool Pump 2-Speed 1HP 230V | SP2307X102
Hayward Max-Flo XL 2-Speed Pump 1HP 230V | SP2307X102
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features
  • Two Compartment
  • Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
  • 50°C Ambient
  • 1081 Design
  • Continuous Duty
  • Open Dripproof
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • Discount symbol: DS-FPS
  • Frequency: 60
  • Length Less Shaft: 13.24
  • Weight: 32
Specifications:
Type Energy Efficient
Rating Total Horsepower Rated
Speed Two-Speed
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 230
Frequency 60 Hz
Amps 7.4/1.4
Service Factor
THP 1.65/0.26
RPM 3450/1725
Shaft Type Threaded
Rotation CCW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
1.5 HP
Speed
2 Speed
Voltage
230 V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
