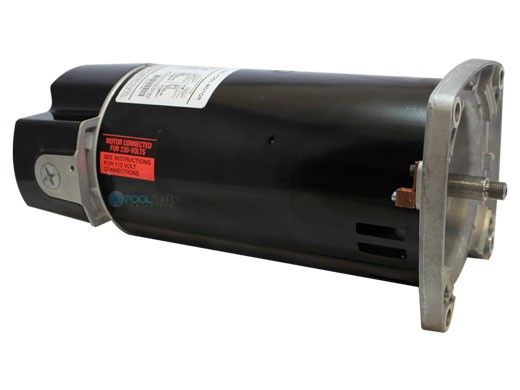

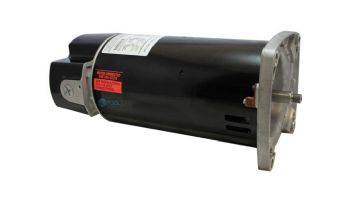

Home Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 48 Frame Energy Efficient | 208V-230V | AE100FHL | AE100GHL | ESQ1152| EUSQ1202 | SQ1152 | USQ1202 | HSQ220 | ASQ225
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 48 Frame Energy Efficient | 208V-230V | AE100FHL | AE100GHL | ESQ1152| EUSQ1202 | SQ1152 | USQ1202 | HSQ220 | ASQ225

Replacement Square Flange Pool & Spa Motor | 1.5HP Full-Rated/2HP Up-Rated | 48 Frame Energy Efficient | 208V-230V | AE100FHL | AE100GHL | ESQ1152| EUSQ1202 | SQ1152 | USQ1202 | HSQ220 | ASQ225
$273.71

Quantity:
Platinum Preferred Manufacturer
  • High Efficiency Design
  • Switch Design
  • 5.5" Frame Diameter
  • Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Hayward TriStar High Performance Energy Efficient Pump 1.5HP Full Rated | 115V 230V | W3SP3215EE
Hayward TriStar Energy Efficient Pump 1.5HP | W3SP3215EE
Replacement Parts

Hayward Max- Flo II Uprated Pool Pump | 1.5HP 115V/230V | SP2710X15
Hayward Max-Flo II Uprated Pump - 1.5HP 115V/230V | SP2710X15
Replacement Parts

Hayward TriStar High Performance Energy Efficient Pump 1.5HP Full Rated | 115V 230V | SP3215EE
Hayward TriStar Energy Efficient Pump 1.5HP | SP3215EE
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - 1/2-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip-Proof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 13.80
  • Weight: 29
Specifications:
Type Energy Efficient
Rating Full-Rated
Speed Single-Speed
Frame Size/Diameter 48Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 9.5/19.0
Full-Rated 1-1/2HP SF: 1.50
Up-Rated 2HP SF: 1.10
THP 2.25
RPM 3450
Shaft Type Threaded
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
1.5 HP
Speed
1 Speed
Voltage
208V-230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
Do you have the replacement start capacitor for this motor?
A shopper on Nov 13, 2016
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.





 Adobe Acrobat PDF Warranty Information
