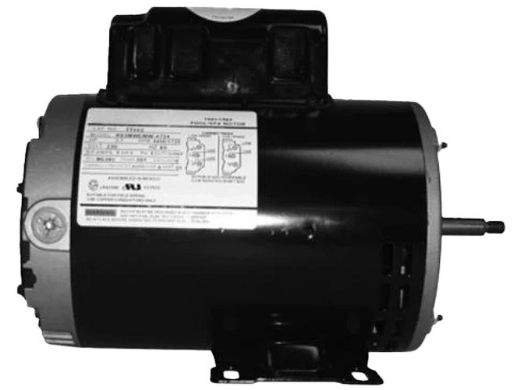

U.S. Motors Nidec Thru-Bolt Pool and Spa Pump Motor | 3HP 230V 60 Hz | 2-Speed | ASB505

Name: U.S. Motors Nidec Thru-Bolt Pool and Spa Pump Motor | 3HP 230V 60 Hz | 2-Speed | ASB505
Brand: US MOTORS
SKU: 206163
Availability: InStock

$394.35

Thru Bolt Pool and Spa Pump Motor

Above ground swimming pool and spa motors. 56 frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.

Features:

3 HP 3450/1725 RPM, 12.0 amps, 230V 60hz, single phase, capacitor start
NEMA 56 Open Frame, 1/2" diameter stainless steel shaft with 3/8" dia. end thread
1.0 Service Factor, auto overload thermal protection, class F insulation
Non-Reversible - CCW rotation facing the shaft
Rigid base mount, ball bearings, switch design, 3 1/2 shaft height

Brand: US MOTORS
