Home Waterway Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V | 3721621-1D
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

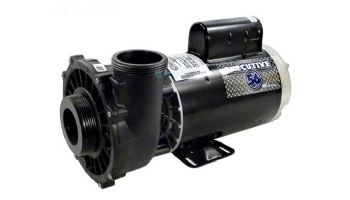

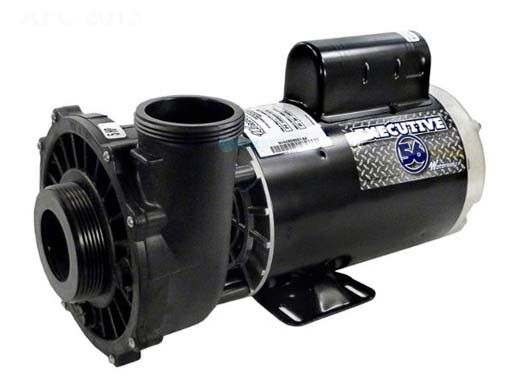

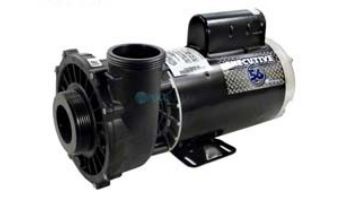

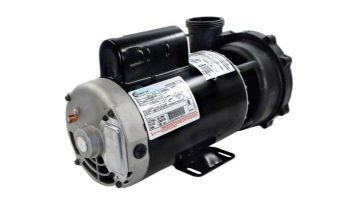

Waterway Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V | 3721621-1D

Waterway Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V | 3721621-1D Waterway Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V | 3721621-1D Waterway Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V | 3721621-1D
$367.49

Quantity:
Shipping Flat Rate Shipping $24.95
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • 4 Horse Power
  • 2" Intake and 2" Discharge
  • 230 Volts
  • 60 Hz
  • 12.0 Amps High Speed - 4.4 Amps Low Speed
Purchase Options
OVERVIEW
Executive 56 Frame | 4HP 2-Speed 2" Intake 2" Discharge 230V

Features

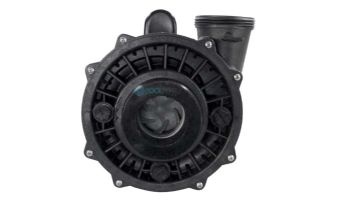

  • Executive wet end designed specifically for 56-frame motors
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • 56-frame motor for added strength, cooler operating temperature and longer motor life
  • 2" or large 2 1/2" intake for improved flow performance and reduced noise
  • Large 6 1/2" diameter wet end for higher head pressure
  • Split capacitor, (start and run) for less energy consumption
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90°
  • Viton seals



Brand: WATERWAY
SPECIFICATIONS
Horse Power
4 HP
Speed
2 Speed
Voltage
230 V
Inlet Size
2"
Outlet Size
2"
Flange
Thru Bolt
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 4 answers
have a 2.5 hp motor now ,can i use a 4hp?
A shopper on Aug 14, 2020
can you wire this for one speed only?
Mike Z on Mar 22, 2021
BEST ANSWER: Sure can. There is a separate connection for high vs low. pick the one you want and leave the other empty. might want to try high and low to see which one you like. This pump is more powerful than what I took out so I rarely use high.
why no hose connection on the pump housing?
pershing l on Dec 20, 2021
BEST ANSWER: It comes with union nuts for hose connections
How do I measure the intake and discharge ID or OD?
A shopper on Aug 25, 2021
REVIEWS
5.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
0
0
Rated 5 out of 5
water way pump
great motor and pump combo. exact replacement fit and performance as the original one. Had that one for 10 years. Hope to get the same from the new one. Would definitely recommend this pump for anyone with a hot tub/pool.
March 13, 2020
Purchased
over 2 years ago
Rated 5 out of 5
Hot tub motor The unit was easy to install anis quiet and working perfectly .
The unit works perfectly and was easy to install. Delivery was fast and unit was well packaged . Pleased and will order again if need ever arises Thank You.
April 23, 2018
Purchased
over 4 years ago
Rated 5 out of 5
Impressed
I had a difficult time finding the pump I needed until I found Pool Supply Unlimited. The spa pump selection on this site is unmatched. Not only did I find what I needed, but the price was great, the shipping was reasonable and the delivery was quick. I couldn't be more impressed. Thank you PSU!!
August 9, 2014
