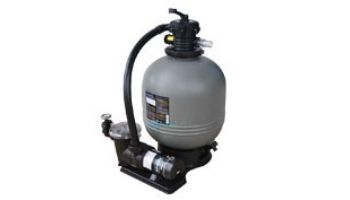

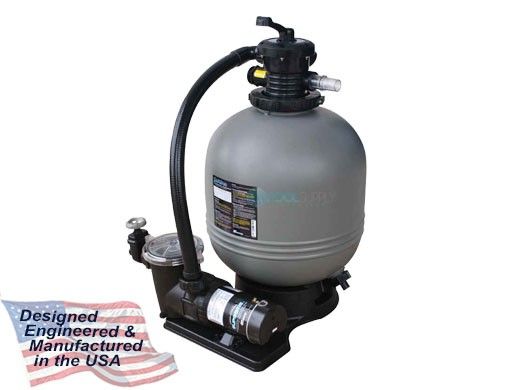

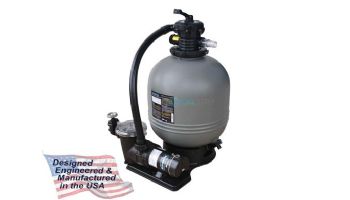

Waterway Carefree Above Ground Pool 16" Top Mount Sand Deluxe Filter System | 1HP Pump 1.4 Sq. Ft. Filter | 3' NEMA Cord | FSS016910-6S

This item is currently out of stock.
Waterway Carefree Above Ground Pool 16" Top Mount Sand Deluxe Filter System | 1HP Pump 1.4 Sq. Ft. Filter | 3' NEMA Cord | FSS016910-6S
Carefree Sand Filter Systems are designed with the ideal combination of energy efficiency and excellent water clarity. The Carefree sand filter and pump pack system provides everything needed for an above ground pool package.

The Supreme Pump is the ultimate in above-ground pool engineering. Designed for today's more demanding applications, the Supreme Pump is ideal for DE, cartridge or sand filtration systems of any size.

Features
  • Large filter with extra sand-holding capacity
  • Top-of-the-line Supreme High Performance Single Speed Pump
  • Extra large 7" pump trap with clear lid
  • Union connection on multi-port for easy installation
  • Unionized gate valve to isolate the system for maintenance
  • 1-1/2" Union threads / 1-1/2 FPT Intake
  • 2" Union threads / 1-1/2" FPT discharge
  • Powerful side discharge performance
  • Wet end easily rotates
  • All the hoses, fittings, clamps and valves needed for installation
  • Pump and filter mounting bases, plus optional accessory stand for chlorinator
  • Long-lasting stainless steel pressure gauge
System Includes:
  • 2 Hoses (1-1/2" x 6 ft.)
  • Filter / Pump Hose with Union Adapters, Hose fittings and hose clamps
  • 3 ft. cord NEMA plug
  • Deluxe modular filter and pump bases
  • Unionized gate valve to isolate system for maintenance
Specifications:
  • Filter type: High-Rate Sand: No. 20 Silica
  • Filter tank: Roto-Molded Polymeric
  • Underdrain: 360° self-cleaning, slotted laterals - threaded for ease of maintenance
  • Control Valve: 7-position, top-mount, multi-port with lever-action handle
  • Valve Fastening: Split-nut thread design
  • Pump & Motor: Supreme Series pump - 115 volts
  • Mounting Base: Molded thermoplastic
Filter Diameter Filtration Area Flow Rate Pump HP Speed Cord
FS01619 16" 1.4 sq. ft. 35 GPM PSP1100-6 1.0 single 3 ft. NEMA
