Home Hayward HCP Series Thermoplastic 3 Phase Commercial Pump | 12.5HP 230/460 | HCP125 Parts

Hayward HCP Series Thermoplastic 3 Phase Commercial Pump | 12.5HP 230/460 | HCP125 Parts

Back to Product

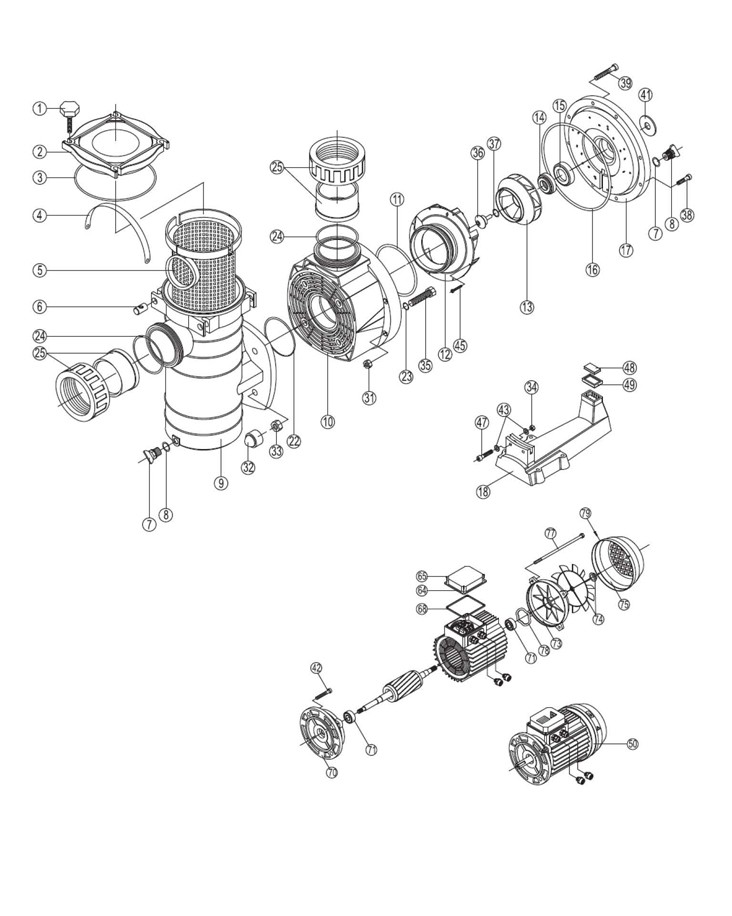

Hayward HCP Series Thermoplastic 3 Phase Commercial Pump | 12.5HP 230/460 | HCP125 Parts Schematic
1, 6
Hayward Cover Screw Kit | 4 Pack | HCXP6000A
Hayward Cover Screw Kit | 4 Pack | HCXP6000A
Quantity:
$113.62

10, 22, 23
Hayward Casing Kit | HCXP6011A
Hayward Casing Kit | HCXP6011A
This item has been discontinued.

11, 14, 15, 16, 17, 37, 41
Hayward Pump Seal Plate | HCXP6017A
Hayward Pump Seal Plate | HCXP6017A
Quantity:
$377.26

11, 14, 15, 16, 37
Hayward Seal Set | HCXP6004A
Hayward Seal Set | HCXP6004A
Quantity:
$141.70

11, 16, 37
Hayward Set-O-Ring HCP Series Pump | HCXP6003A
Hayward Set-O-Ring HCP Series Pump | HCXP6003A
This item has been discontinued.

12, 45
Hayward Diffuser Kit HCP100/125 | HCXP6006A
Hayward Diffuser Kit HCP100/125 | HCXP6006A
Quantity:
$284.58

13, 36, 37
Hayward Impeller Kit HCP125 | HCXP6010A
Hayward Impeller Kit HCP125 | HCXP6010A
Quantity:
$497.52

18, 48, 49
Hayward Support Base Kit | HCXP6012A
Hayward Support Base Kit | HCXP6012A
Quantity:
$105.69

2, 3
Hayward Pump Lid with O-Ring | HCXP6001A
Hayward Pump Lid with O-Ring | HCXP6001A
Quantity:
$306.81

24, 25
Hayward Pump Union Connection Kit | HCXP6019A
Hayward Pump Union Connection Kit | HCXP6019A
Quantity:
$320.68

31, 38, 39
Hayward Pump Seal Plate Screw Kit | HCXP6018A
Hayward Pump Seal Plate Screw Kit | HCXP6018A
Quantity:
$79.35

34, 43, 47
Hayward Pump Support Bolt Set | HCXP6023A
Hayward Pump Support Bolt Set | HCXP6023A
Quantity:
$49.01

35, 23, 32, 33
Hayward Pump Casing Bolt Kit | HCXP6021A
Hayward Pump Casing Bolt Kit | HCXP6021A
Quantity:
$94.27

4, 5
Hayward Filter Basket with Handle | HCXP6002A
Hayward Filter Basket with Handle | HCXP6002A
Quantity:
$352.08

62, 100
Hayward Kit Adapter PG21.75" | HCXP6024A
Hayward Kit Adapter PG21.75" | HCXP6024A
Quantity:
$140.58

64, 65, 68
Hayward Electrical Connection Cover Assembly for 230/460V Motors | HCXP6075A
Hayward Electrical Connection Cover Assembly for 230/460V Motors | HCXP6075A
Quantity:
$164.48

7, 8
Hayward Drain Plug Set | HCXP6013A
Hayward Drain Plug Set | HCXP6013A
Quantity:
$25.89

75, 79
Hayward HCP75/100/125 Fan Cover Kit | HCXP6066A
Hayward HCP75/100/125 Fan Cover Kit | HCXP6066A
Quantity:
$168.63

9, 22
Hayward Pump Strainer Body Kit | HCXP6022A
Hayward Pump Strainer Body Kit | HCXP6022A
Quantity:
$1,129.25

3
Hayward Pump Lid O-Ring | HCXP6014A
Hayward Pump Lid O-Ring | HCXP6014A
Quantity:
$27.53

11
Hayward Pump Diffuser O-Ring | HCXP6015A
Hayward Pump Diffuser O-Ring | HCXP6015A
This item has been discontinued.

16
Hayward Pump Flange O-Ring | HCXP6016A
Hayward Pump Flange O-Ring | HCXP6016A
Quantity:
$40.63

42
Hayward Pump Motor Mounting Screw Kit | HCXP6020A
Hayward Pump Motor Mounting Screw Kit | HCXP6020A
Quantity:
$47.60

50
Hayward TEFC Motor 12.5HP HCP125 3-Phase | HCXP125CMOTOR
Hayward TEFC Motor 12.5HP HCP125 3-Phase | HCXP125CMOTOR
Quantity:
$2,082.25

70
Hayward HCP75/100/125 Flange | HCXP6071A
Hayward HCP75/100/125 Flange | HCXP6071A
Quantity:
$618.71

71
Hayward HCP75/100/125 Bearing Set | HCXP6051A
Hayward HCP75/100/125 Bearing Set | HCXP6051A
Quantity:
$371.14

73
Hayward HCP75/100/125 Motor Cover-Fan Side | HCXP6056A
Hayward HCP75/100/125 Motor Cover-Fan Side | HCXP6056A
Quantity:
$334.77

74
Hayward HCP75/100/125 Fan and Clamp | HCXP6061A
Hayward HCP75/100/125 Fan and Clamp | HCXP6061A
Quantity:
$172.60

77
Hayward Motor Tie Rods HCP125 Set of 4 | HCXP6079A
Hayward Motor Tie Rods HCP125 Set of 4 | HCXP6079A
Quantity:
$78.26

78
Hayward Wave Washer | HCXP6053A
Hayward Wave Washer | HCXP6053A
Quantity:
$47.60
