Hayward Pool Vac XL Inground Pool Cleaner for Vinyl Pools | W32025ADV Parts

Back to Product

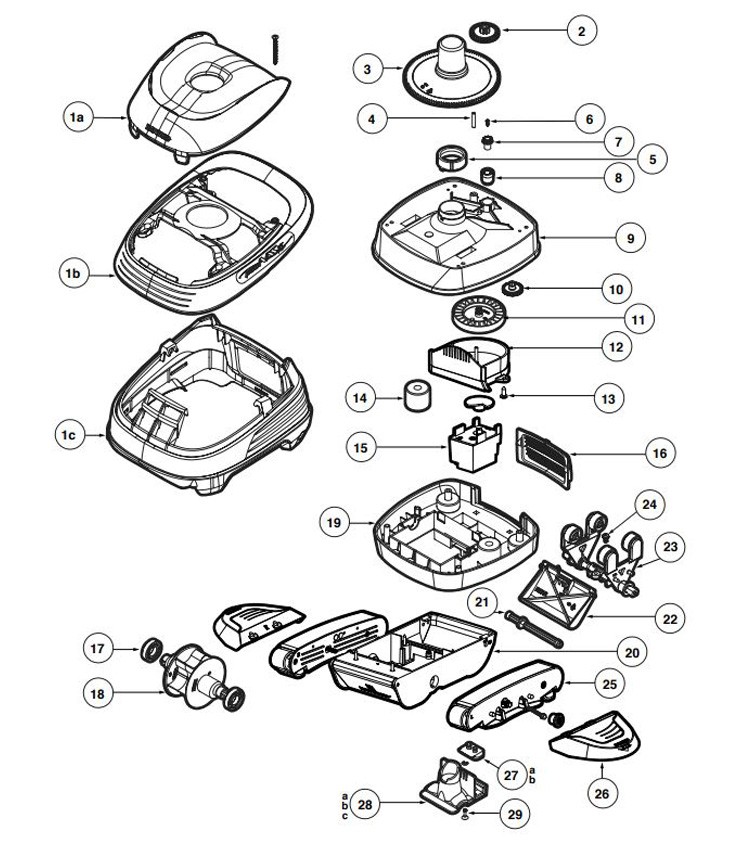

Hayward Pool Vac XL Inground Pool Cleaner for Vinyl Pools | W32025ADV Parts Schematic
1a
Hayward PoolVac AD Top Cover Kit | AXVU018
Hayward PoolVac AD Top Cover Kit | AXVU018
Quantity:
$112.09

1b
Hayward PoolVac XL AD Handle Kit | AXVU019
Hayward PoolVac XL AD Handle Kit | AXVU019
Quantity:
$123.81

1c
Hayward PoolVac Skirt Kit | AXVU015
Hayward PoolVac Skirt Kit | AXVU015
Quantity:
$230.33

2
Hayward Navigator & Pool Vac Ultra Inter-Gear | AXV301
Hayward Navigator & Pool Vac Ultra Inter-Gear | AXV301
Quantity:
$17.00

3
Hayward Navigator & Pool Vac Ultra Cone Gear | AXV070
Hayward Navigator & Pool Vac Ultra Cone Gear | AXV070
Quantity:
$79.42

4
Hayward Navigator & Pool Vac Ultra Inter-Gear Shaft | AXV309
Hayward Navigator & Pool Vac Ultra Inter-Gear Shaft | AXV309
Quantity:
$5.63

5
Hayward Navigator & Pool Vac Ultra Cone Gear Bushing | AXV306
Hayward Navigator & Pool Vac Ultra Cone Gear Bushing | AXV306
Quantity:
$17.37

6
Hayward Navigator & Pool Vac Ultra Screw #4 x 3|8" | AXV068
Hayward Navigator & Pool Vac Ultra Screw #4 x 3|8" | AXV068
Quantity:
$5.85

7
Hayward Navigator & Pool Vac Ultra Cone Spindle Gear | AXV303
Hayward Navigator & Pool Vac Ultra Cone Spindle Gear | AXV303
Quantity:
$17.00

8
Hayward Navigator & Pool Vac Ultra Spindle Gear Bushing | AXV066A
Hayward Navigator & Pool Vac Ultra Spindle Gear Bushing | AXV066A
Quantity:
$18.45

9
Hayward Navigator & Pool Upper Middle Body | White | AXV060WH
Hayward Navigator & Pool Upper Middle Body | White | AXV060WH
Quantity:
$83.74

10
Hayward Navigator & Pool Vac Ultra Medium Turbine Drive Gear | AXV064A
Hayward Navigator & Pool Vac Ultra Medium Turbine Drive Gear | AXV064A
Quantity:
$18.45

11
Hayward Navigator & Pool Vac Ultra Medium Turbine | AXV062C
Hayward Navigator & Pool Vac Ultra Medium Turbine | AXV062C
Quantity:
$26.37

12
Hayward Navigator & Pool Vac Ultra Medium Turbine Case with Axel | AXV009
Hayward Navigator & Pool Vac Ultra Medium Turbine Case with Axel | AXV009
Quantity:
$46.74

13
Hayward Navigator & Pool Vac Ultra Screw #10 X 1/2" 6 Pkg | AXV065P
Hayward Navigator & Pool Vac Ultra Screw #10 X 1/2"  6 Pkg | AXV065P
Quantity:
$4.49

14
Hayward Floats Kit | AXV054FH
Hayward Floats Kit | AXV054FH
Quantity:
$32.67

15
Hayward Navigator & Pool Vac Ultra Gear Box Assy 304SS PV+NGT | AXV408P
Hayward Navigator & Pool Vac Ultra Gear Box Assy 304SS PV+NGT | AXV408P
Quantity:
$27.66

16
Hayward AD Scree Kit | White | AXVU009
Hayward AD Scree Kit | White | AXVU009
Quantity:
$13.45

17
Hayward Navigator & Pool Vac Ultra Turbine Bearing Pack of 2 | AXV055P
Hayward Navigator & Pool Vac Ultra Turbine Bearing Pack of 2 | AXV055P
Quantity:
$21.12

18
Hayward Turbine Kit | AXV602P
Hayward Turbine Kit | AXV602P
Quantity:
$45.35

19
Hayward Navigator And Pool Vac Ultra Body Lower Middle AD PV | White | AXV050CWH
Hayward Navigator And Pool Vac Ultra Body Lower Middle AD PV | White | AXV050CWH
Quantity:
$76.79

20
Hayward Navigator & Pool Vac Ultra Open Lower Body White | AXV230DWH
Hayward Navigator & Pool Vac Ultra Open Lower Body White | AXV230DWH
Quantity:
$33.00

21
Hayward Navigator & Pool Vac Ultra Flap Adjuster AD PV Turcte | AXV031B
Hayward Navigator & Pool Vac Ultra Flap Adjuster AD PV Turcte | AXV031B
Quantity:
$18.19

22
Hayward Navigator & Pool Vac Ultra Flap Kit White | AXV434WHP
Hayward Navigator & Pool Vac Ultra Flap Kit White | AXV434WHP
Quantity:
$30.07

23
Hayward Universal A-Frame Turbine Kit | AXV621DAT
Hayward Universal A-Frame Turbine Kit |  AXV621DAT
Quantity:
$72.78

24
Hayward Navigator & Pool Vac Ultra Keeper Screw 4 Pack | AXV313
Hayward Navigator & Pool Vac Ultra Keeper Screw 4 Pack | AXV313
Quantity:
$13.36

25
Hayward Navigator & Pool Vac Ultra Pod Kit White | AXV417WHP
Hayward Navigator & Pool Vac Ultra Pod Kit White | AXV417WHP
Quantity:
$52.30

26
Hayward Navigator & Pool Vac Ultra Wing Kit | White | AXV604WHP
Hayward Navigator & Pool Vac Ultra Wing Kit | White | AXV604WHP
Quantity:
$18.38

27a
Hayward Navigator & Pool Vac Ultra Shoes Concrete Navigator Ultra 4 Pack | AXV414P
Hayward Navigator & Pool Vac Ultra Shoes Concrete Navigator Ultra 4 Pack | AXV414P
Quantity:
$14.20

27b
Hayward LG Shoes Vinyl PV + NGT | AXV413P
Hayward LG Shoes Vinyl PV + NGT | AXV413P
Quantity:
$24.79

28a
Hayward Navigator & Pool Vac Ultra Access Cover Assembly | AXV603
Hayward Navigator & Pool Vac Ultra Access Cover Assembly | AXV603
Quantity:
$18.28

28b
Hayward Acess Cover Assembly Vinyl | AXV603A
Hayward Acess Cover Assembly Vinyl | AXV603A
Quantity:
$20.58

28c
Hayward Access Cover with Wide Standoffs | AXV603CLO
Hayward Access Cover with Wide Standoffs | AXV603CLO
Quantity:
$18.28

29
Hayward Navigator & Pool Vac Ultra Captive Screw & Retaining Clip | AXV314P
Hayward Navigator & Pool Vac Ultra Captive Screw & Retaining Clip | AXV314P
Quantity:
$8.60
