Home Pool Swimming Pool & Spa Pumps Hayward Pumps Hayward XE Series Super Pump Ultra-High Efficiency Variable Speed Pool Pump | 1.65 Total HP 230/115V | W3SP2610X15XE Parts

Hayward XE Series Super Pump Ultra-High Efficiency Variable Speed Pool Pump | 1.65 Total HP 230/115V | W3SP2610X15XE Parts

Back to Product

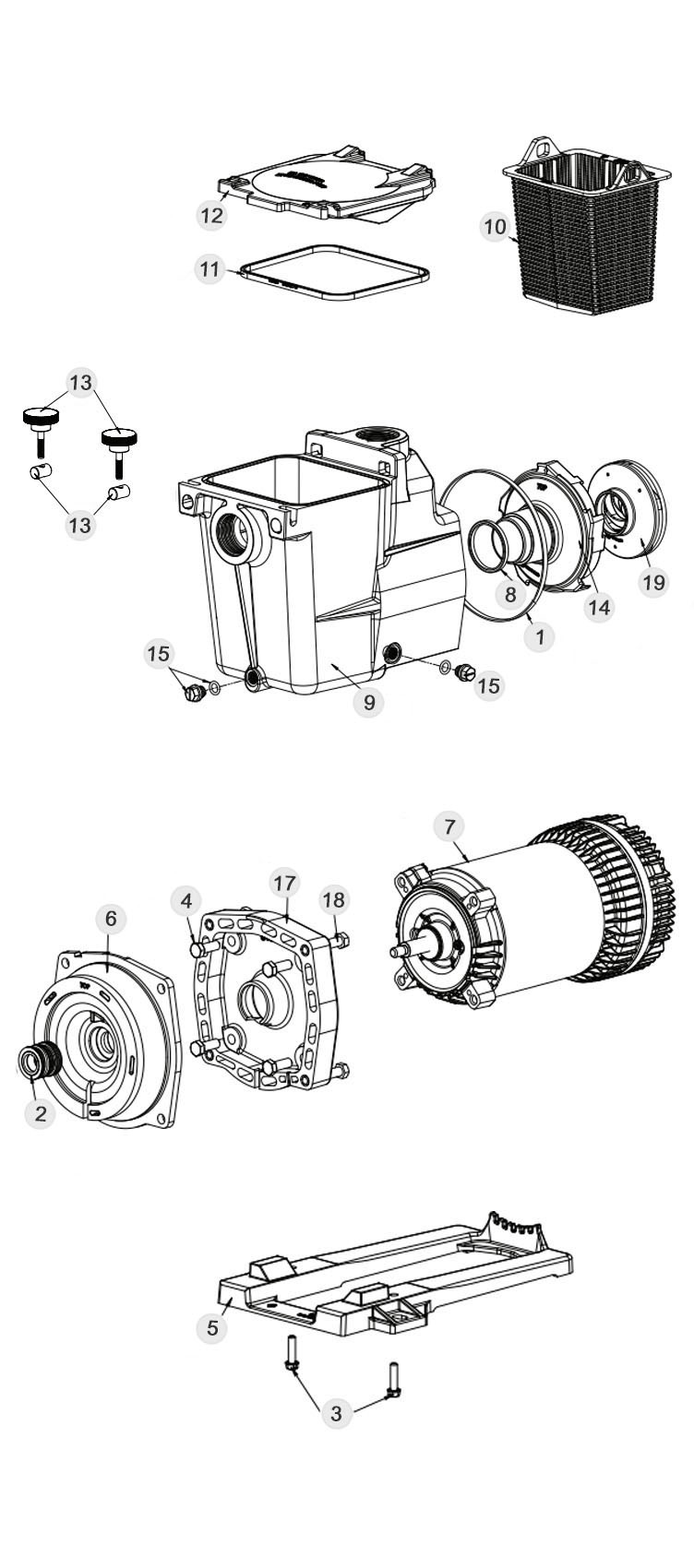

Hayward XE Series Super Pump Ultra-High Efficiency Variable Speed Pool Pump | 1.65 Total HP 230/115V | W3SP2610X15XE Parts Schematic
1
Hayward Housing Gasket | SPX1600T
Hayward Housing Gasket | SPX1600T
Quantity:
$15.49

2
Hayward Shaft Seal Assembly | SPX1600Z2
Hayward Shaft Seal Assembly | SPX1600Z2
Quantity:
$31.18

2
Hayward Viton Shaft Seal | SPX1600Z2VIT
Hayward Viton Shaft Seal | SPX1600Z2VIT
Quantity:
$33.37

3
Hayward Mounting Foot Cap Screw | Set of 2 | SPX1600Z52
Hayward Mounting Foot Cap Screw | Set of 2 | SPX1600Z52
Quantity:
$11.23

4
Hayward Motor Bolt | 4-Pack | SPX3200Z5PAK4
Hayward Motor Bolt | 4-Pack | SPX3200Z5PAK4
Quantity:
$17.35

5
Hayward Mounting Foot with Adapter and Screws | SPX2600G1
Hayward Mounting Foot with Adapter and Screws | SPX2600G1
Quantity:
$25.74

6
Hayward Super Pump Seal Plate | SPX2600E5
Hayward Super Pump Seal Plate | SPX2600E5
Quantity:
$52.21

7
Hayward XE Series Super Pump Power End | 1.65HP | SPX2610X15XEPE
Hayward XE Series Super Pump Power End | 1.65HP | SPX2610X15XEPE
Quantity:
$910.36

8
Hayward Super Pump Diffuser Gasket | SPX1600R
Hayward Super Pump Diffuser Gasket | SPX1600R
Quantity:
$8.57

9
Hayward Pump Housing / Strainer 2" x2 " with Drain Plugs | SPX1620AA
Hayward Pump Housing / Strainer 2" x2 " with Drain Plugs | SPX1620AA
Quantity:
$283.56

10
Hayward Super Pump Strainer Basket | SPX1600M
Hayward Super Pump Strainer Basket | SPX1600M
Quantity:
$23.76

11
Hayward Super Pump Strainer Cover Gasket | SPX1600S
Hayward Super Pump Strainer Cover Gasket | SPX1600S
Quantity:
$18.59

12
Hayward Super Pump Strainer Cover | Clear | SPX1600D
Hayward Super Pump Strainer Cover | Clear | SPX1600D
Quantity:
$68.61

13
Hayward Swivel Nut and Hand Knob Kit | SPX1600PN
Hayward Swivel Nut and Hand Knob Kit | SPX1600PN
Quantity:
$22.38

14
Hayward Super II Diffuser | 0.5 - 1.5HP | SPX2600B
Hayward Super II Diffuser | 0.5 - 1.5HP | SPX2600B
Quantity:
$41.57

15
Hayward Drain Plug with Gasket | 1/4" | SPX1700FG
Hayward Drain Plug with Gasket | 1/4" | SPX1700FG
Quantity:
$10.62

17
Hayward Motor Mounting Plate | SPX1600F5
Hayward Motor Mounting Plate | SPX1600F5
Quantity:
$49.43

18
Hayward Housing Cap Screw | SPX1600Z4
Hayward Housing Cap Screw | SPX1600Z4
Quantity:
$11.69

19
Hayward Super Pump Impeller | SPX2610C
Hayward Super Pump Impeller | SPX2610C
Quantity:
$43.46
