Hayward XE Series TriStar Ultra-High Efficiency Variable Speed Pool Pump | 2.25 Total HP 230V/115V | W3SP3215X20XE Parts

Back to Product

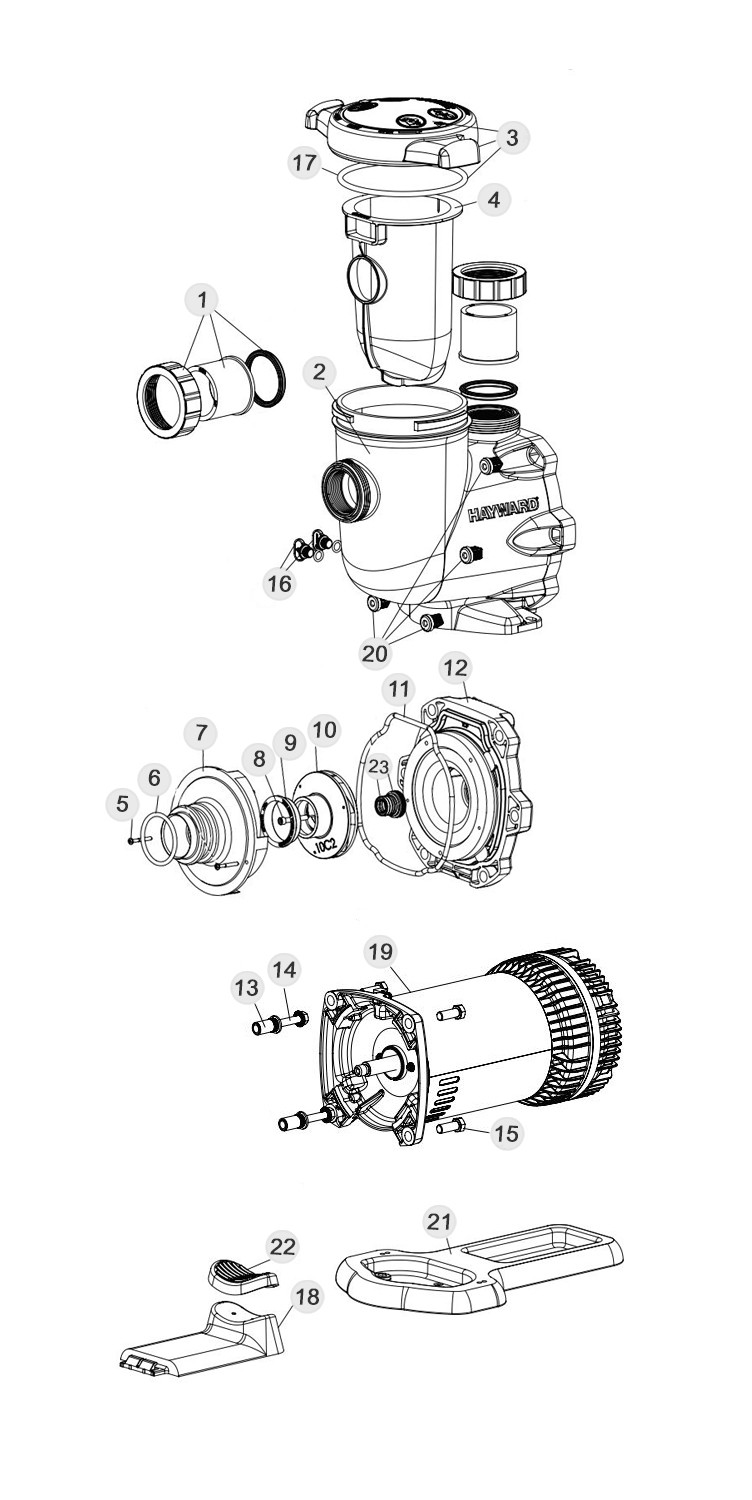

Hayward XE Series TriStar Ultra-High Efficiency Variable Speed Pool Pump | 2.25 Total HP 230V/115V | W3SP3215X20XE Parts Schematic
1
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$48.03

2
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Hayward Pump Strainer Housing Assembly | 2" x 2.5" with Drain Plugs | SPX3200A
Quantity:
$264.90

3
Hayward Strainer Cover Kit | SPX3200DLS
Hayward Strainer Cover Kit | SPX3200DLS
Quantity:
$79.32

4
Hayward TriStar Strainer Basket | SPX3200M
Hayward TriStar Strainer Basket | SPX3200M
Quantity:
$24.39

5
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Quantity:
$16.02

6
Hayward Diffuser O-Ring | SPX4000Z1
Hayward Diffuser O-Ring | SPX4000Z1
Quantity:
$18.28

7
Hayward TriStar Diffuser | SPX3200B3
Hayward TriStar Diffuser | SPX3200B3
Quantity:
$42.70

8
Hayward TriStar Impeller Screw | SPX3200Z1
Hayward TriStar Impeller Screw | SPX3200Z1
Quantity:
$11.14

9
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$11.84

10
Hayward TriStar Impeller with Screw | 1.5HP | SPX3215C
Hayward TriStar Impeller with Screw | 1.5HP | SPX3215C
Quantity:
$45.71

11
Hayward TriStar Housing O-Ring | SPX3200T
Hayward TriStar Housing O-Ring | SPX3200T
Quantity:
$15.76

12
Hayward TriStar Seal Plate | SPX3200E
Hayward TriStar Seal Plate | SPX3200E
Quantity:
$52.55

13
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Quantity:
$30.17

14
Hayward TriStar Housing Bolt | SPX3200Z3
Hayward TriStar Housing Bolt | SPX3200Z3
Quantity:
$9.12

15
Hayward Motor Bolt | 4-Pack | SPX3200Z5PAK4
Hayward Motor Bolt | 4-Pack | SPX3200Z5PAK4
Quantity:
$15.03

16
Hayward Drain Plug with O-Ring | SPX4000FG
Hayward Drain Plug with O-Ring | SPX4000FG
Quantity:
$8.93

17
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Quantity:
$18.72

18
Hayward TriStar Motor Support Bracket | SPX3200GA
Hayward TriStar Motor Support Bracket | SPX3200GA
Quantity:
$43.18

19
Hayward XE Series TriStar Power End | 2.25HP | SPX3215X20XEPE
Hayward XE Series TriStar Power End | 2.25HP | SPX3215X20XEPE
Quantity:
$1,104.29

20
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Hayward Housing Insert / Seal Plate Spacer Kit | SPX3200Z211
Quantity:
$30.17

21
Hayward TriStar Riser Base | SPX3200WF
Hayward TriStar Riser Base | SPX3200WF
Quantity:
$41.66

21
Hayward TriStar Riser Base | SPX3200SR
Hayward TriStar Riser Base | SPX3200SR
Quantity:
$40.88

22
Hayward Motor Support Adapter | SPX3200Q2
Hayward Motor Support Adapter | SPX3200Q2
Quantity:
$14.65

23
Hayward Shaft Seal Assembly | SPX3200SA
Hayward Shaft Seal Assembly | SPX3200SA
Quantity:
$31.64

23
Hayward Viton Shaft Seal Assembly | SPX4000SAV
Hayward Viton Shaft Seal Assembly | SPX4000SAV
Quantity:
$42.63
