Jandy DEV Series DE Filter | 60 Sq Ft | Requires Backwash Valve | DEV60 Parts

Back to Product

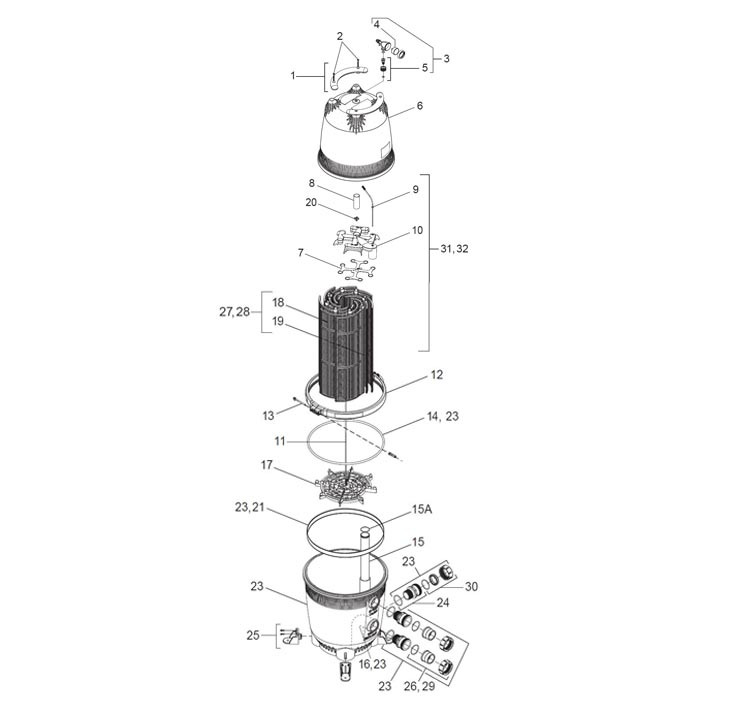

Jandy DEV Series DE Filter |  60 Sq Ft | Requires Backwash Valve | DEV60 Parts Schematic
1
Zodiac Jandy Handle Assembly with Hardware | 2-Set | R0357100
Zodiac Jandy Handle Assembly with Hardware | 2-Set | R0357100
Quantity:
$62.77

2
Zodiac Jandy Hardware Kit | 4-Set | R0359900
Zodiac Jandy Hardware Kit | 4-Set | R0359900
Quantity:
$51.92

3
Zodiac Jandy Pool Gauge - Air Release Assembly | R0357200
Zodiac Jandy Pool Gauge - Air Release Assembly | R0357200
Quantity:
$68.04

4
Pressure Gauge With O-Ring | R0359600
Pressure Gauge With O-Ring | R0359600
Quantity:
$38.58

5
Zodiac Jandy Tank Adapter with O-Ring | R0552000
Zodiac Jandy Tank Adapter with O-Ring | R0552000
Quantity:
$27.53

6
Zodiac Tank Top | R0357300
Zodiac Tank Top | R0357300
Quantity:
$425.29

7
Zodiac Top Spacer for DE Grids | R0359700
Zodiac Top Spacer for DE Grids | R0359700
Quantity:
$23.16

8
Zodiac Top Spacer Collar | R0405100
Zodiac Top Spacer Collar | R0405100
Quantity:
$30.19

9
Zodiac Jandy Breather Tube Assembly | R0358700
Zodiac Jandy Breather Tube Assembly | R0358700
Quantity:
$22.35

10
Zodiac Manifold Assembly Del Series | R0359000
Zodiac Manifold Assembly Del Series | R0359000
Quantity:
$89.95

11
Zodiac Tie Rod with Knob and Lock Nuts | R0359300
Zodiac Tie Rod with Knob and Lock Nuts | R0359300
Quantity:
$64.21

12
Zodiac Jandy Tank Clamp with Knob Assembly | R0357400
Zodiac Jandy Tank Clamp with Knob Assembly | R0357400
Quantity:
$257.54

13
Zodiac Jandy Clamp Ring Knob Assembly | R0357500
Zodiac Jandy Clamp Ring Knob Assembly | R0357500
Quantity:
$80.19

14
Zodiac Jandy Filter Tank O-Ring | R0357800
Zodiac Jandy Filter Tank O-Ring | R0357800
Quantity:
$52.24

15
Zodiac Jandy Outlet Tube / Elbow Assembly with O-Rings | R0555100
Zodiac Jandy Outlet Tube / Elbow Assembly with O-Rings | R0555100
Quantity:
$53.71

15A
Zodiac Jandy Outlet Tube O-Ring, Filter | R0792000
Zodiac Jandy Outlet Tube O-Ring, Filter | R0792000
Quantity:
$14.59

16
Zodiac Jandy Inlet Elbow with O-Ring | R0358400
Zodiac Jandy Inlet Elbow with O-Ring | R0358400
Quantity:
$55.29

17
Zodiac DE Grid Support | R0359500
Zodiac DE Grid Support | R0359500
Quantity:
$66.70

18
Full Size DE Grid 60 Sq Ft | 30" Universal | FG-1005 PFG3060 FC-9350
Full Size DE Grid 60 Sq Ft | 30" Universal | FG-1005 PFG3060 FC-9350
Quantity:
$32.53

18
Zodiac Full D.E. Grid Element for DEV60 | R0359100
Zodiac Full D.E. Grid Element for DEV60 | R0359100
Quantity:
$80.45

19
Partial Size DE Grid 60 Sq Ft | 30" Universal | PG-1905 PHG3060 FC-9450
Partial Size DE Grid 60 Sq Ft | 30" Universal | PG-1905 PHG3060 FC-9450
Quantity:
$32.44

19
Jandy Short Span D.E. Single Grid for DEV60 | R0359200
Jandy Short Span D.E. Single Grid for DEV60 | R0359200
Quantity:
$75.73

N/S
Complete Grid Set for 60 Sq Ft Filters | 30" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS3060 FC-9550
Complete Grid Set for 60 Sq Ft Filters | 30" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS3060 FC-9550
Quantity:
$199.37

N/S
Jandy Complete Set of Filter Grid for DEV60 | R0442600
Jandy Complete Set of Filter Grid for DEV60 | R0442600
Quantity:
$350.05

20
Zodiac Tie Rod Knob for Del Series | R0359400
Zodiac Tie Rod Knob for Del Series | R0359400
Quantity:
$19.97

21
Zodiac Jandy Large Tank Retaining Ring | R0405200
Zodiac Jandy Large Tank Retaining Ring | R0405200
Quantity:
$80.80

23
Zodiac Jandy Tank Bottom Assembly | R0466500
Zodiac Jandy Tank Bottom Assembly | R0466500
Quantity:
$522.75

24
Zodiac Jandy Bulkhead Assembly with O-Ring | R0465600
Zodiac Jandy Bulkhead Assembly with O-Ring | R0465600
Quantity:
$65.21

25
Zodiac Jandy Filter Anchor Brackets | 4-Set | R0465500
Zodiac Jandy Filter Anchor Brackets | 4-Set | R0465500
Quantity:
$90.90

26
Zodiac Jandy Tailpiece Cap & Union Nut Set | 3-Set | R0461800
Zodiac Jandy Tailpiece Cap & Union Nut Set | 3-Set | R0461800
Quantity:
$88.24

29
Zodiac Jandy Universal Half Union Kit | R0522900
Zodiac Jandy Universal Half Union Kit | R0522900
Quantity:
$32.59

30
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Quantity:
$27.70

32
Jandy Complete Grid Assembly DEV/DEL 60Sqf | R0501400
Jandy Complete Grid Assembly DEV/DEL 60Sqf | R0501400
Quantity:
$466.53

N/S
Zodiac Jandy O-Ring Replacement Kit | R0358000
Zodiac Jandy O-Ring Replacement Kit | R0358000
Quantity:
$28.70
