Home Jandy Air-Energy Titanium Heat Pump 140K BTU | 6.1 COP | 230V 60Hz 1 Phase | Digital | EE3000T Parts

Jandy Air-Energy Titanium Heat Pump 140K BTU | 6.1 COP | 230V 60Hz 1 Phase | Digital | EE3000T Parts

Back to Product

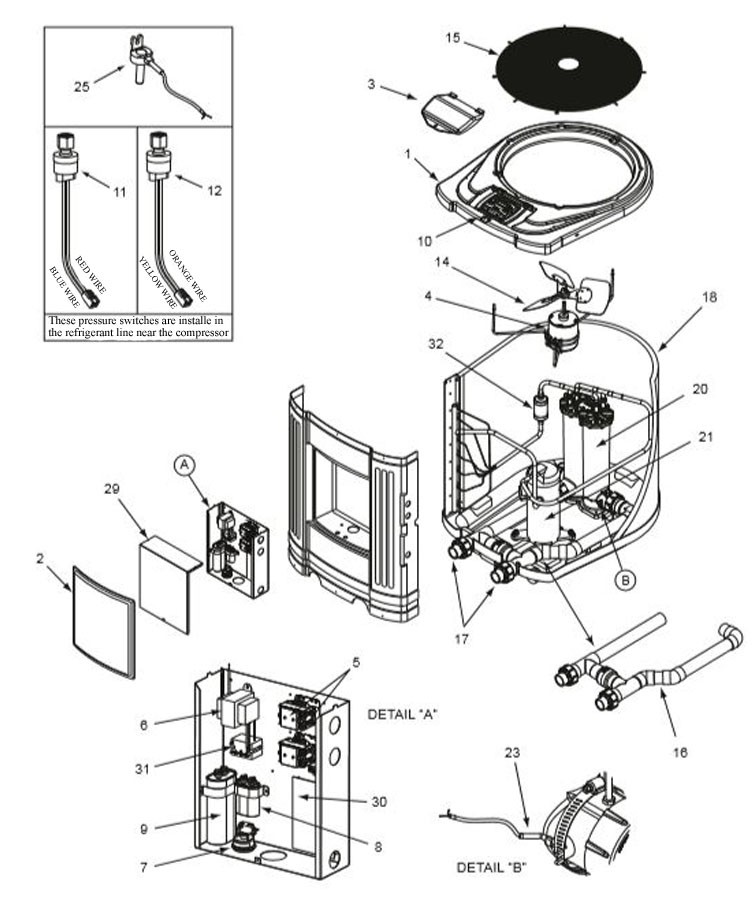

Jandy Air-Energy Titanium Heat Pump 140K BTU | 6.1 COP | 230V 60Hz 1 Phase | Digital | EE3000T Parts Schematic
1
Jandy Top Enclosure Jacket | R3009100
Jandy Top Enclosure Jacket | R3009100
This item has been discontinued.

2
Jandy Pro Series Heat Pump Replacement Kit | R3000500
Jandy Pro Series Heat Pump Replacement Kit | R3000500
Quantity:
$136.93

3
Jandy Control Cover Smoked AE-TI | R3000601
Jandy Control Cover Smoked AE-TI | R3000601
This item has been discontinued.

4
Jandy Fan Motor | 208VAC/230VAC AE-TI | R3000701
Jandy Fan Motor | 208VAC/230VAC AE-TI | R3000701
Quantity:
$496.41

5
Jandy Contactor Single Phase AE-TI | R3000801
Jandy Contactor Single Phase AE-TI | R3000801
Quantity:
$175.45

6
Jandy Transformer Single Phase AE-TI | R3000901
Jandy Transformer Single Phase AE-TI | R3000901
Quantity:
$154.93

7
Jandy Switch Water Pressure AE-TI | R3001000
Jandy Switch Water Pressure AE-TI | R3001000
Quantity:
$83.05

8
Jandy Fan Motor Capacitor | R3001100
Jandy Fan Motor Capacitor | R3001100
Quantity:
$112.15

9
Jandy Compressor Capacitor | R3001203
Jandy Compressor Capacitor | R3001203
This item has been discontinued.

10
Jandy Legacy LRZE Heater and EE-Ti Heat Pump Universal Control User Interface | R3008800
Jandy Legacy LRZE Heater and EE-Ti Heat Pump Universal Control User Interface | R3008800
Quantity:
$513.28

11
Jandy Refrigerant High Pressure Switch 650-460 PSIG | R0509900
Jandy Refrigerant High Pressure Switch 650-460 PSIG | R0509900
Quantity:
$32.90

12
Jandy Refrigerant LP Switch 35-74 Psig | R0510002
Jandy Refrigerant LP Switch 35-74 Psig | R0510002
Quantity:
$27.29

13
Jandy Pro-Series Universal Control Wire Harness Replacement Kit | R3009000
Jandy Pro-Series Universal Control Wire Harness Replacement Kit  | R3009000
Quantity:
$173.32

14
Jandy Fan Blade Kit AE-TI | R3001700
Jandy Fan Blade Kit AE-TI | R3001700
This item has been discontinued.

15
Jandy Fan Guard | R3001800
Jandy Fan Guard | R3001800
This item has been discontinued.

16
Jandy AE 2000-3000 Plumbing Tree | R0561602
Jandy AE 2000-3000 Plumbing Tree | R0561602
Quantity:
$356.66

17
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Quantity:
$99.68

18
Jandy Evaporator Coil/Guard | R0510204
Jandy Evaporator Coil/Guard | R0510204
Quantity:
$1,057.31

21
Jandy Compressor 83K | 1-Phase | R0510600
Jandy Compressor 83K | 1-Phase | R0510600
Quantity:
$1,381.52

23
Jandy AE-Ti Heat Pump Air & Water Temperature Sensor | R3002900
Jandy AE-Ti Heat Pump Air & Water Temperature Sensor | R3002900
Quantity:
$143.37

25
Zodiac Air Temperature Sensor | R3003100
Zodiac Air Temperature Sensor | R3003100
Quantity:
$130.97

26
Jandy Reversing Valve | R3003800
Jandy Reversing Valve | R3003800
Quantity:
$441.00

27
Jandy AE-Ti Anchor Bracket Replacement Kit | R3003203
Jandy AE-Ti Anchor Bracket Replacement Kit | R3003203
Quantity:
$32.51

28
Jandy AE-Ti Anchor Bracket Replacement Kit | R3003203
Jandy AE-Ti Anchor Bracket Replacement Kit | R3003203
Quantity:
$32.51

29
Jandy Junction Box Cover EE-TI Series Heat Pump | R3004600
Jandy Junction Box Cover EE-TI Series Heat Pump | R3004600
Quantity:
$98.10

30
Zodiac Jandy Power Interface PCB Board | R3009200
Zodiac Jandy Power Interface PCB Board | R3009200
Quantity:
$432.90

31
Jandy Pro Series Fan Relay | R3009300
Jandy Pro Series Fan Relay | R3009300
Quantity:
$77.13

33
Jandy Plumbing Bypass Assembly AE-Ti | R3001900
Jandy Plumbing Bypass Assembly AE-Ti | R3001900
Quantity:
$229.04

34
Jandy Plast-aid Repair Kit | R0490800
Jandy Plast-aid Repair Kit | R0490800
Quantity:
$39.27
