Jandy Hi-E2 ASME Pool Heater | 350,000 BTU Natural Gas | Dual Thermostat | Bronze Headers | Salt Water | EHE350NS Parts

Back to Product

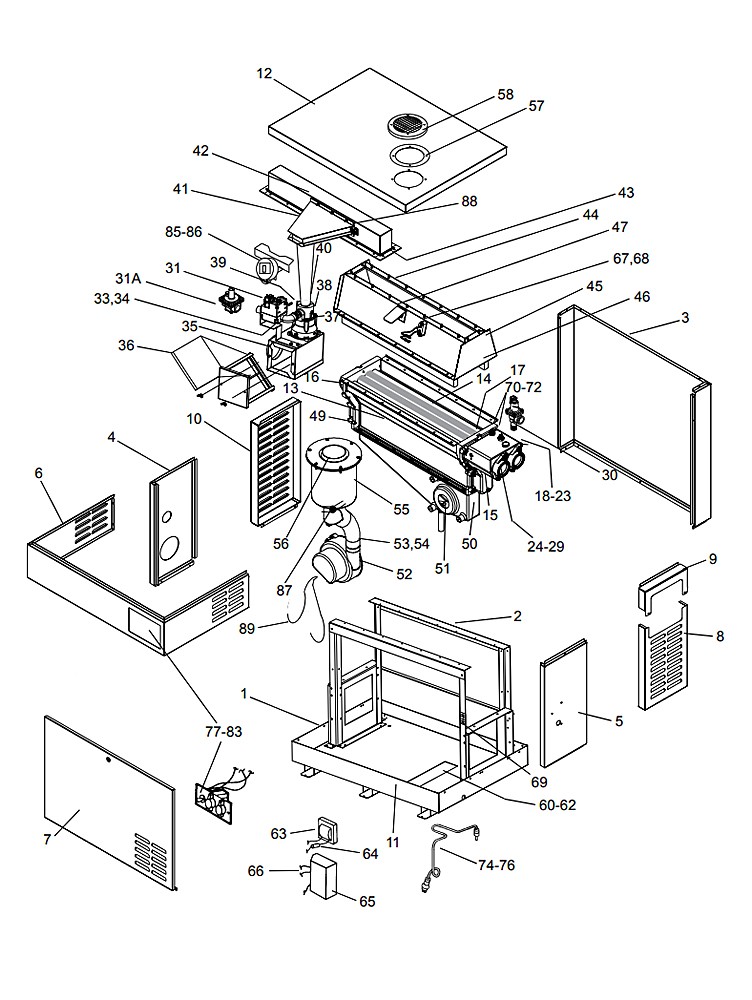

Jandy Hi-E2 ASME Pool Heater | 350,000 BTU Natural Gas | Dual Thermostat | Bronze Headers | Salt Water | EHE350NS Parts Schematic
1
Zodiac Jandy Base Panel | R0347105
Zodiac Jandy Base Panel | R0347105
Quantity:
$96.61

2
Zodiac Jandy Frame Support Assembly | R0301505
Zodiac Jandy Frame Support Assembly | R0301505
Quantity:
$57.36

4
Zodiac Jandy Left Side Panel | Pewter | R0347300
Zodiac Jandy Left Side Panel | Pewter | R0347300
Quantity:
$136.61

6
Zodiac Jandy Temperature Control Panel | R0347505
Zodiac Jandy Temperature Control Panel | R0347505
Quantity:
$58.69

7
Zodiac Jandy Door | R0347605
Zodiac Jandy Door | R0347605
Quantity:
$50.32

8
Zodiac Jandy Inlet/Outlet Header Panel | R0347700
Zodiac Jandy Inlet/Outlet Header Panel | R0347700
Quantity:
$23.70

9
Zodiac Jandy Top Right Side Panel | R0347800
Zodiac Jandy Top Right Side Panel | R0347800
Quantity:
$61.63

10
Zodiac Jandy Return Header Panel | R0347900
Zodiac Jandy Return Header Panel | R0347900
Quantity:
$32.92

11
Zodiac Jandy Front Kick Panel | R0348005
Zodiac Jandy Front Kick Panel | R0348005
Quantity:
$26.63

12
Zodiac Jandy Top Panel | R0348105
Zodiac Jandy Top Panel | R0348105
Quantity:
$139.50

13
Zodiac Jandy Hi-E2 Heater ASME Cupro-Nickel Heat Exchanger | R0523705
Zodiac Jandy Hi-E2 Heater ASME Cupro-Nickel Heat Exchanger | R0523705
Quantity:
$4,135.38

15
Zodiac Jandy Inlet/Outlet Header | R0303900
Zodiac Jandy  Inlet/Outlet Header | R0303900
Quantity:
$731.19

16
Zodiac Jandy Return Header | R0304000
Zodiac Jandy Return Header | R0304000
Quantity:
$654.48

17
Jandy Hi-E2 Header Gasket Kit | R0304300
Jandy Hi-E2 Header Gasket Kit | R0304300
Quantity:
$67.79

18
Zodiac Jandy By-Pass Valve Assembly | R0304400
Zodiac Jandy By-Pass Valve Assembly | R0304400
Quantity:
$78.37

19
Zodiac Jandy Bypass Valve Control Cap 2" | R0054901
Zodiac Jandy Bypass Valve Control Cap 2" | R0054901
Quantity:
$81.09

20
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Quantity:
$7.95

21
Zodiac Jandy By-pass Valve Spring | R0304500
Zodiac Jandy By-pass Valve Spring | R0304500
Quantity:
$37.48

22
Zodiac Jandy Bypass Valve Rod | R0304900
Zodiac Jandy Bypass Valve Rod | R0304900
Quantity:
$24.97

23
Bypass Valve Disk Hi E2 | R0011500
Bypass Valve Disk Hi E2 | R0011500
Quantity:
$14.02

24
Zodiac Jandy 2" Flange & Gasket Kit | R0055000
Zodiac Jandy 2" Flange & Gasket Kit | R0055000
Quantity:
$217.17

25
Zodiac Jandy 2" Flange | 10573500
Zodiac Jandy 2" Flange | 10573500
Quantity:
$70.21

26
Zodiac 2" Flange Gasket | S0078000
Zodiac 2" Flange Gasket | S0078000
Quantity:
$30.00

27
Zodiac Jandy 2" Flange Sleeve | S0078200
Zodiac Jandy 2" Flange Sleeve | S0078200
Quantity:
$14.15

28
Zodiac Jandy Flange & Gasket Kit | R0461500
Zodiac Jandy Flange & Gasket Kit | R0461500
Quantity:
$213.39

29
Zodiac Jandy 1-1/2"-2" Flange Gasket | S0078100
Zodiac Jandy 1-1/2"-2" Flange Gasket | S0078100
Quantity:
$15.67

30
Zodiac Jandy Pressure Relief Valve 75 PSI 3/4" NPT | R0040400
Zodiac Jandy Pressure Relief Valve 75 PSI 3/4" NPT | R0040400
Quantity:
$58.34

31
Zodiac Jandy Gas Valve | R0200100
Zodiac Jandy Gas Valve | R0200100
Quantity:
$569.41

31A
Zodiac Jandy Regulator Stepdown | R0337300
Zodiac Jandy Regulator Stepdown | R0337300
Quantity:
$213.19

33
Zodiac Jandy Orifice Holder | R0320000
Zodiac Jandy Orifice Holder | R0320000
Quantity:
$42.88

34
Zodiac Jandy Natural Gas Orifice | R0309305
Zodiac Jandy Natural Gas Orifice | R0309305
Quantity:
$57.46

35
Zodiac Jandy Combustion Air Filter Assembly | R0348200
Zodiac Jandy Combustion Air Filter Assembly | R0348200
Quantity:
$105.40

36
Zodiac Jandy Combustion Air Filter HI-E2 | R0308000
Zodiac Jandy Combustion Air Filter HI-E2 | R0308000
Quantity:
$34.67

37
Zodiac Jandy Venturi Inlet | R0320305
Zodiac Jandy Venturi Inlet | R0320305
Quantity:
$285.12

38
Zodiac Jandy Venturi O-Ring | R0320400
Zodiac Jandy Venturi O-Ring | R0320400
Quantity:
$12.07

39
Zodiac Jandy Venturi Plenum Kit | R0320500
Zodiac Jandy Venturi Plenum Kit | R0320500
Quantity:
$205.49

40
Zodiac Jandy HiE2 Mixing Chamber/Tailpipe | R0348300
Zodiac Jandy HiE2 Mixing Chamber/Tailpipe | R0348300
Quantity:
$451.14

41
Zodiac Jandy Venturi/Tailpipe Gasket | R0320600
Zodiac Jandy Venturi/Tailpipe Gasket | R0320600
Quantity:
$19.49

42
Zodiac Mixing Chamber/Burner Gasket | R0320800
Zodiac  Mixing Chamber/Burner Gasket | R0320800
Quantity:
$23.49

43
Zodiac Jandy Burner Assembly | R0305905
Zodiac Jandy Burner Assembly | R0305905
Quantity:
$1,172.79

44
Zodiac Jandy Burner/Combustion Chamber Gasket | R0305805
Zodiac Jandy Burner/Combustion Chamber Gasket | R0305805
Quantity:
$36.59

45
Zodiac Jandy Combustion Chamber Assembly | R0305105
Zodiac Jandy Combustion Chamber Assembly | R0305105
Quantity:
$616.04

46
Zodiac Jandy Refractory Tile Kit | R0305305
Zodiac Jandy Refractory Tile Kit | R0305305
Quantity:
$388.66

47
Jandy JXi Sight Glass Kit | R0305400
Jandy JXi Sight Glass Kit | R0305400
Quantity:
$189.34

48
Zodiac Jandy Combustion Chamber Strip Set | R0213105
Zodiac Jandy Combustion Chamber Strip Set | R0213105
Quantity:
$57.46

49
Zodiac Jandy Combustion Chamber Collector Gasket | R0305705
Zodiac Jandy Combustion Chamber Collector Gasket | R0305705
Quantity:
$122.74

51
Zodiac Jandy Blower/Collector Gasket | R0308700
Zodiac Jandy Blower/Collector Gasket | R0308700
Quantity:
$34.69

52
Zodiac Jandy Combustion Blower | R0308200
Zodiac Jandy Combustion Blower | R0308200
Quantity:
$2,023.80

53
Zodiac Jandy Blower/Vent Duct Sleeve | R0308600
Zodiac Jandy Blower/Vent Duct Sleeve | R0308600
Quantity:
$40.44

54
Zodiac Jandy Blower/ Vent Duct Clamp | R0308800
Zodiac Jandy Blower/ Vent Duct Clamp | R0308800
Quantity:
$58.04

55
Zodiac Jandy Vent Duct Assembly | R0303100
Zodiac Jandy Vent Duct Assembly | R0303100
Quantity:
$416.08

56
Zodiac Jandy Vent Duct Gasket | R0309100
Zodiac Jandy Vent Duct Gasket | R0309100
Quantity:
$40.44

57
Zodiac Jandy Heater Top/Outdoor Exhaust Grill Gasket | R0309500
Zodiac Jandy Heater Top/Outdoor Exhaust Grill Gasket | R0309500
Quantity:
$16.13

58
Zodiac Jandy Outdoor Exhaust Grill | R0348400
Zodiac Jandy Outdoor Exhaust Grill | R0348400
Call us to order.

60
Zodiac Jandy Condensate Trap Assembly and Tube Drain | R0303300
Zodiac Jandy Condensate Trap Assembly and Tube Drain | R0303300
Quantity:
$82.91

61
Jandy Limestone Gravel Kit HI-E2 | R0306200
Jandy Limestone Gravel Kit HI-E2 | R0306200
Quantity:
$42.54

63
Zodiac Jandy Laars Heater 24V Transformer 115V-220V | R0061100
Zodiac Jandy Laars Heater 24V Transformer 115V-220V | R0061100
Quantity:
$74.54

64
Zodiac Jandy In-Line Fuse Holder Assembly | R0325600
Zodiac Jandy In-Line Fuse Holder Assembly | R0325600
Quantity:
$20.34

65
Zodiac Jandy Heater Ignition Control | R0202900
Zodiac Jandy Heater Ignition Control  | R0202900
Quantity:
$494.30

66
Zodiac Jandy Ignition Control Wire Harness | R0302700
Zodiac Jandy Ignition Control Wire Harness | R0302700
Quantity:
$75.65

67
Zodiac Jandy Igniter Assembly for Jandy Hi-E2 | R0016400
Zodiac Jandy Igniter Assembly for Jandy Hi-E2 | R0016400
Quantity:
$132.78

68
Zodiac Jandy Igniter Gasket | R0205300
Zodiac Jandy Igniter Gasket | R0205300
Quantity:
$48.94

70
Zodiac Jandy High-Limit Switch/Harness Set | R0322700
Zodiac Jandy High-Limit Switch/Harness Set | R0322700
Quantity:
$91.17

74
Zodiac Jandy Pressure Switch and Siphon Loop Assembly | R0322900
Zodiac Jandy Pressure Switch and Siphon Loop Assembly | R0322900
Quantity:
$87.31

75
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Quantity:
$85.84

77
Zodiac Jandy Laars Heater Dual Electronic Thermostat with Thermister | R0011700
Zodiac Jandy Laars Heater Dual Electronic Thermostat with Thermister | R0011700
Quantity:
$413.87

80
Zodiac Temperature Sensor Plastic Sleeve | 10444900
Zodiac Temperature Sensor Plastic Sleeve | 10444900
Quantity:
$6.73

81
Zodiac Jandy Temperature Control Knob | R0010700
Zodiac Jandy Temperature Control Knob | R0010700
Quantity:
$10.74

82
Zodiac Jandy Single Bar Selector Knob | R0099900
Zodiac Jandy Single Bar Selector Knob | R0099900
Quantity:
$17.55

85
Zodiac Jandy Blower Differential Pressure Switch | R0302000
Zodiac Jandy Blower Differential Pressure Switch | R0302000
Quantity:
$130.26

86
Zodiac Jandy Jacket Hardware Kit | R0302200
Zodiac Jandy Jacket Hardware Kit | R0302200
Quantity:
$21.43

87
R0461600 SWITCH HIGH LIMIT HI-E
R0461600 SWITCH HIGH LIMIT HI-E
Quantity:
$92.68

88
Zodiac Jandy Burner High Limit Switch | R0319700
Zodiac Jandy Burner High Limit  Switch | R0319700
Quantity:
$29.93

89
Zodiac Jandy Combustion Blower Wire Harness | R0308100
Zodiac Jandy Combustion Blower Wire Harness | R0308100
Quantity:
$13.72

NA
Zodiac Jandy 4" Venting Connector | R0444900
Zodiac Jandy 4" Venting Connector | R0444900
Quantity:
$74.76

NA
Zodiac Jandy Rainshield Kit | R0319105
Zodiac Jandy Rainshield Kit | R0319105
Quantity:
$362.22

NA
Zodiac Jandy Heat Exchanger Hardware Kit | R0319200
Zodiac Jandy Heat Exchanger Hardware Kit | R0319200
Quantity:
$56.69

NA
Zodiac Jandy Anti-Rotation Bracket | R0348500
Zodiac Jandy Anti-Rotation Bracket | R0348500
Quantity:
$18.26

NA
Zodiac Jandy Venturi Hardware Kit | R0322200
Zodiac Jandy Venturi Hardware Kit | R0322200
Quantity:
$51.88

NA
Zodiac Jandy Mixing Chamber Hardware Kit | R0322100
Zodiac Jandy Mixing Chamber Hardware Kit | R0322100
Quantity:
$50.32

NA
Zodiac Jandy Burner Hardware Kit | R0319405
Zodiac Jandy Burner Hardware Kit | R0319405
Quantity:
$92.53

NA
Zodiac Jandy Indoor Vent Collar | R0307900
Zodiac Jandy Indoor Vent Collar | R0307900
Quantity:
$103.57

NA
Jandy Laars Temperature Sensor Thermistor with Sleeve & Gasket | R0011800
Jandy Laars Temperature Sensor Thermistor with Sleeve & Gasket | R0011800
Quantity:
$111.36

NA
Zodiac Jandy High Temperature Silicone Sealant | R0322800
Zodiac Jandy High Temperature Silicone Sealant | R0322800
Quantity:
$49.69

NA
Zodiac Jandy Jacket Hardware Kit | R0302100
Zodiac Jandy Jacket Hardware Kit | R0302100
Quantity:
$33.98

NA
Zodiac Jandy Differential Pressure Switch Bracket | R0302500
Zodiac Jandy Differential Pressure Switch Bracket | R0302500
Quantity:
$18.46

NA
Jandy Hi-E2 Inlet Outlet Header Hardware Kit | R0319300
Jandy Hi-E2 Inlet Outlet Header Hardware Kit | R0319300
Quantity:
$71.76

HABLAMOS ESPAÑOL
Hay muchas maneras diferentes de contactarnos, y nos gustaría hablar con usted sobre las preguntas de su compra, ayudarle a diagnosticar los problemas de su equipo y escuchar acerca de cómo podemos mejorar y todo lo que está en su mente.
Click Here
OPEN 6 DAYS A WEEK
6am - 6pm Monday thru Saturday
Pacific Standard Time
Will-Call Hours Click Here
NEWSLETTER
Be the first to know the latest news, deals & special events!

Email:


By signing up you indicate that you agree to the terms of our privacy policy.



ABOUT THE STORE
Pool Supply Unlimited is an e-commerce company that loves water. We love to pump it, filter it, heat it, chlorinate it, light it up and stare at it while we're barbequing a fat, juicy steak. There are real pool professionals working here. Our guys have seen thousands of pools in their careers, no exaggeration. We are based in Southern California and can land most products to your door (within the 48 contiguous states) in less than a week.
COMPANY
ABOUT US
BETTER BUSINESS BUREAU
CONTACT US
CONTACTO
CUSTOMER REVIEWS
FAQ
HOURS OF OPERATION
PRIVACY
SITE MAP
TESTIMONIALS
MY ACCOUNT
LOGIN
FORGOT PASSWORD
LOYALTY POINTS
RETURN MERCHANDISE
PROMOTIONS
COUPONS
REBATES
NEWSLETTER
BREAD FINANCING
WARRANTIES
TERMS
INTERNATIONAL ORDERS
LOYALTY POINTS TERMS
RETURNS POLICY
SHIPPING POLICY
RESOURCES
BLOG
PRODUCT MANUALS
Visa Mastercard Discover American Express PayPal
