Jandy JE Series Heat Pump 108,000 BTU | Single Phase 230V 60HZ | 6.0 COP | JE2000T Parts

Back to Product

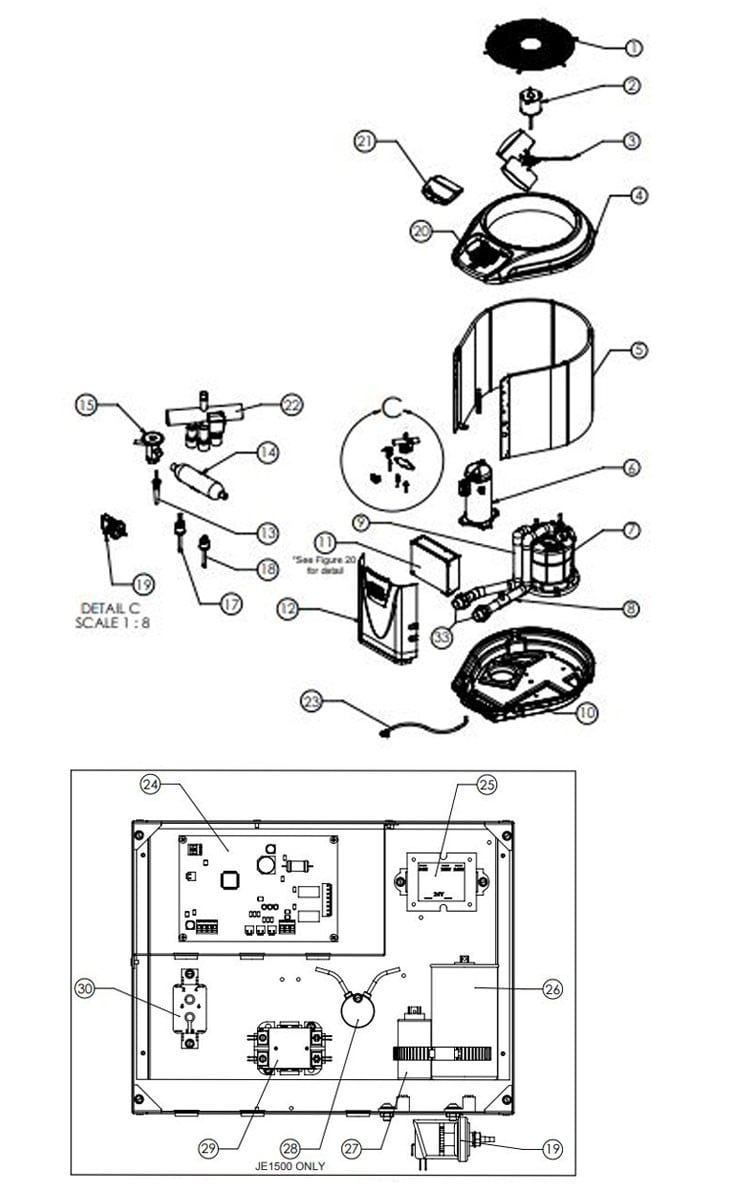

Jandy JE Series Heat Pump 108,000 BTU | Single Phase 230V 60HZ | 6.0 COP | JE2000T Parts Schematic
1
Jandy JE Series Fan Grille 2000/2500/3000 | R0571800
Jandy JE Series Fan Grille 2000/2500/3000  | R0571800
This item has been discontinued.

2
Jandy JE Series Fan Motor 2000/2500/3000 | R0572000
Jandy JE Series Fan Motor 2000/2500/3000 | R0572000
Quantity:
$362.58

3
Jandy JE Series Fan Blade Heat Pump | 2000/2500/3000 | R0572200
Jandy JE Series Fan Blade Heat Pump | 2000/2500/3000 | R0572200
Quantity:
$182.31

4
Jandy JE Series Fan Top Heat Pump | 2000/2500/3000 | R0572400
Jandy JE Series Fan Top Heat Pump | 2000/2500/3000 | R0572400
Quantity:
$470.53

5
Jandy JE Series Evaporator Coil/Guard | 2000/2500 | R0572600
Jandy JE Series Evaporator Coil/Guard | 2000/2500 | R0572600
Quantity:
$1,170.48

6
Jandy JE Series Heat Pump Compressor 2000 | R0572900
Jandy JE Series Heat Pump Compressor 2000 | R0572900
Quantity:
$1,209.62

7
Jandy JE Series Condenser Heat Pump 2000 | R0577800
Jandy JE Series Condenser Heat Pump 2000 | R0577800
Quantity:
$1,401.77

8
Jandy JE Series Water Manifold Inlet 2000/2500 | R0573300
Jandy JE Series Water Manifold Inlet 2000/2500 | R0573300
Quantity:
$130.02

9
Jandy JE Series Water Manifold Outlet 2000/2500 | R0573600
Jandy JE Series Water Manifold Outlet 2000/2500 | R0573600
Quantity:
$93.58

10
Jandy JE Series Base | 2000/2500/3000 | R0573900
Jandy JE Series Base | 2000/2500/3000 | R0573900
Quantity:
$383.25

11
Jandy JE Series Electrical Box Cover with Hardware | R0574000
Jandy JE Series Electrical Box Cover with Hardware | R0574000
Quantity:
$504.04

12
Jandy JE Series Heat Pump Front Panel 2000/2500 Models | R0574400
Jandy JE Series Heat Pump Front Panel 2000/2500 Models | R0574400
Quantity:
$275.84

14
Jandy JE Series Filter Drier 2000/2500/3000 | R0574800
Jandy JE Series Filter Drier 2000/2500/3000 | R0574800
Quantity:
$64.10

15
Jandy JE Series Thermal Expansion Valve 2000/2500 | R0575100
Jandy JE Series Thermal Expansion Valve 2000/2500 | R0575100
Quantity:
$271.84

16
Jandy JE Series Heat Pump Air Temperature Sensor | R0575300
Jandy JE Series Heat Pump Air Temperature Sensor | R0575300
Quantity:
$46.69

17
Jandy JE Series Heat Pump High Pressure Switch | R0575400
Jandy JE Series Heat Pump High Pressure Switch | R0575400
Quantity:
$52.02

18
Jandy JE Series Heat Pump Low Pressure Switch | R0575500
Jandy JE Series Heat Pump Low Pressure Switch | R0575500
Quantity:
$52.02

19
Jandy JE Series Heat Pump Water Pressure Switch | R0575600
Jandy JE Series Heat Pump Water Pressure Switch | R0575600
A Recommended Replacement is available for this item.
This item has been discontinued.

21
Jandy Control Cover Smoked AE-TI | R3000601
Jandy Control Cover Smoked AE-TI | R3000601
This item has been discontinued.

22
Jandy JE Series 3000TR Reversing Valve | R0575900
Jandy JE Series 3000TR Reversing Valve | R0575900
Quantity:
$230.47

23
Jandy JE Series Winterizing Drain Kit 2000/2500/3000 | R0576000
Jandy JE Series Winterizing Drain Kit 2000/2500/3000 | R0576000
Quantity:
$38.63

24
Zodiac Jandy Power Interface PCB Board | R3009200
Zodiac Jandy Power Interface PCB Board | R3009200
Quantity:
$376.40

25
Jandy JE Series Heat Pump Transformer | R0576200
Jandy JE Series Heat Pump Transformer | R0576200
Quantity:
$51.35

26
Jandy JE Series 1HP Run Capacitor 2000/2500/3000 | R0576400
Jandy JE Series 1HP Run Capacitor 2000/2500/3000 | R0576400
Quantity:
$48.81

27
Jandy JE Series Fan Capacitor 2000/2500/3000 | R0576600
Jandy JE Series Fan Capacitor 2000/2500/3000 | R0576600
Quantity:
$26.78

29
Jandy JE Series 1PH Heat Pump Contactor | R0576800
Jandy JE Series 1PH Heat Pump Contactor | R0576800
Quantity:
$59.20

30
Jandy JE Series Heat Pump Fan Relay | R0577000
Jandy JE Series Heat Pump Fan Relay | R0577000
Quantity:
$39.30

32
Jandy JE Series Heat Pump External Bypass | R0578900
Jandy JE Series Heat Pump External Bypass | R0578900
Quantity:
$271.27

33
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Jandy Universal Union & Buttress Set Replacement Kit | R0472700
Quantity:
$91.86

N/A
Jandy JE Series Heat Pump External Bypass | R0578900
Jandy JE Series Heat Pump External Bypass | R0578900
Quantity:
$271.27
