Jandy JXi Pool & Spa Heater Low-NOx | 400K BTU Natural Gas with VersaFlo Bypass | Electronic Ignition | Digital Controls | JXi400NK Parts

Back to Product

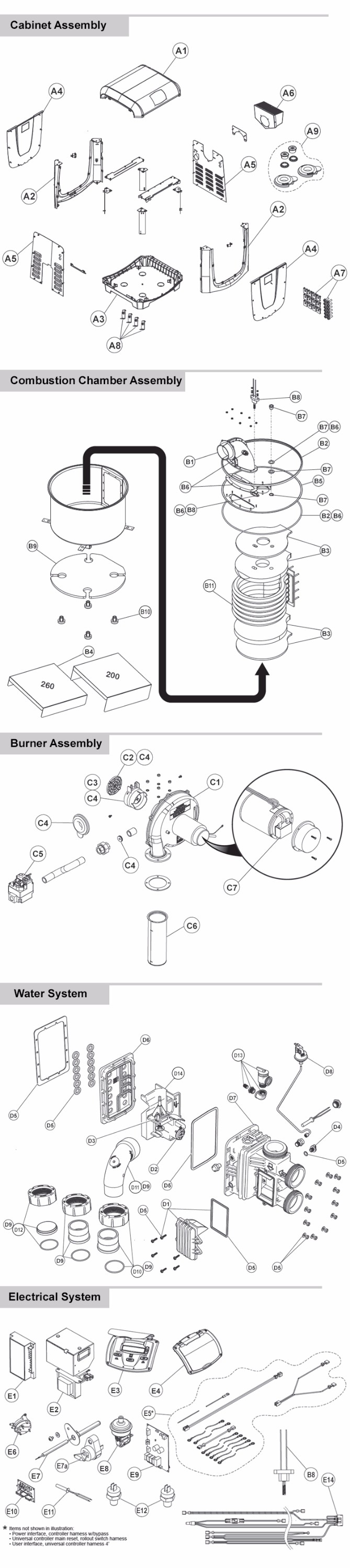

Jandy JXi Pool & Spa Heater Low-NOx | 400K BTU Natural Gas with VersaFlo Bypass | Electronic Ignition | Digital Controls | JXi400NK Parts Schematic
A1
Jandy JXi Heater Jacket Top Kit | R0592400
Jandy JXi Heater Jacket Top Kit | R0592400
Quantity:
$128.51

A2
Jandy JXi Corner Post Kit | R0592500
Jandy JXi Corner Post Kit | R0592500
Quantity:
$102.73

A3
Jandy JXi Heater Base Kit | R0592600
Jandy JXi Heater Base Kit | R0592600
Quantity:
$98.38

A4
Jandy JXi Front or Back Panel Kit | R0592700
Jandy JXi Front or Back Panel Kit | R0592700
Quantity:
$73.27

A5
Jandy JXi Side Panel Kit | R0592900
Jandy JXi Side Panel Kit | R0592900
Quantity:
$115.65

A6
Jandy JXi Vent Terminal Housing Kit | R0593100
Jandy JXi Vent Terminal Housing Kit | R0593100
Quantity:
$18.31

A7
Jandy JXi Jacket Hardware Kit | R0593300
Jandy JXi Jacket Hardware Kit | R0593300
Quantity:
$49.30

A8
Jandy JXi Anchor Brackets Kit | R0593400
Jandy JXi Anchor Brackets Kit | R0593400
Quantity:
$26.68

A9
Jandy JXi Jacket Hole Plug Kit | R0591800
Jandy JXi Jacket Hole Plug Kit | R0591800
Quantity:
$71.80

B1
Jandy JXi Exhaust Elbow Assembly Kit | R0590200
Jandy JXi Exhaust Elbow Assembly Kit | R0590200
Quantity:
$74.77

B2
Jandy JXi Band Clamp Kit | R0590400
Jandy JXi Band Clamp Kit | R0590400
Quantity:
$100.84

B3
Jandy JXi Internal Refractory Kit | R0590500
Jandy JXi Internal Refractory Kit | R0590500
Quantity:
$114.93

B5
Jandy JXi Combustion Chamber Lid Kit | R0590800
Jandy JXi Combustion Chamber Lid Kit | R0590800
Quantity:
$73.42

B6
Jandy JXi Gasket Kit | R0590900
Jandy JXi Gasket Kit | R0590900
Quantity:
$54.52

B7
Jandy JXi Sight Glass Kit | R0305400
Jandy JXi Sight Glass Kit | R0305400
Quantity:
$189.34

B8
Jandy JXi Igniter Kit | R0457502
Jandy JXi Igniter Kit | R0457502
Quantity:
$48.00

B9
Jandy JXi External Insulation Kit | R0591000
Jandy JXi External Insulation Kit | R0591000
Quantity:
$44.95

B10
Jandy JXi Isolator Kit | R0593200
Jandy JXi Isolator Kit | R0593200
Quantity:
$43.79

B11
Jandy Jxi Heat Exchange Assembly | R0589405
Jandy Jxi Heat Exchange Assembly | R0589405
Quantity:
$1,021.85

C1
Jandy JXi Blower Assembly Kit | R0591100
Jandy JXi Blower Assembly Kit | R0591100
Quantity:
$632.55

C2
Jandy JXi Air Intake Grate Kit | R0591200
Jandy JXi Air Intake Grate Kit | R0591200
Quantity:
$24.65

C3
Jandy JXi Blower Intake Orifice Kit | R0591305
Jandy JXi Blower Intake Orifice Kit | R0591305
Quantity:
$32.64

C4
Jandy JXi Fuel Orifice Kit | R0591604
Jandy JXi Fuel Orifice Kit | R0591604
Quantity:
$56.36

C5
Jandy JXi Heaters Gas Valve | R0591400
Jandy JXi Heaters Gas Valve | R0591400
Quantity:
$324.21

C6
Jandy JXi Burner Kit | R0591705
Jandy JXi Burner Kit | R0591705
Quantity:
$141.74

C7
Jandy JXi Heaters Capacitor Blower Kit | R0614500
Jandy JXi Heaters Capacitor Blower Kit | R0614500
Quantity:
$26.61

D1
Jandy JXi Access Door Kit | R0589600
Jandy JXi Access Door Kit | R0589600
Quantity:
$33.84

D2
Jandy JXi Thermal Regulator Valve | R0589700
Jandy JXi Thermal Regulator Valve | R0589700
Quantity:
$91.05

D3
Jandy JXi Bypass Kit | R0589800
Jandy JXi Bypass Kit | R0589800
Quantity:
$32.72

D4
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$16.51

D5
Jandy JXi Gasket and Seals Kit | R0589500
Jandy JXi Gasket and Seals Kit | R0589500
Quantity:
$76.33

D6
Jandy JXi Manifold Backplate Kit | R0590005
Jandy JXi Manifold Backplate Kit | R0590005
Quantity:
$48.74

D7
Jandy JXi Three Port Manifold | R0590100
Jandy JXi Three Port Manifold | R0590100
Quantity:
$137.13

D8
Jandy JXi Water Pressure Switch Kit | R0457001
Jandy JXi Water Pressure Switch Kit | R0457001
Quantity:
$49.72

D9
Jandy JXi Goody Bag Kit | R0593500
Jandy JXi Goody Bag Kit | R0593500
Quantity:
$134.91

D10
Zodiac Jandy Universal Half Union Kit | R0522900
Zodiac Jandy Universal Half Union Kit | R0522900
Quantity:
$32.59

D11
Jandy JXi AquaLink Sweep Elbow Temperature Sensor | SEAQL1001
Jandy JXi AquaLink Sweep Elbow Temperature Sensor | SEAQL1001
Quantity:
$25.14

D12
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Zodiac Jandy Drain Cap Assembly Kit | R0523000
Quantity:
$27.70

D13
Jandy JXi Pressure Relief Valve Install Kit | R0336101
Jandy JXi Pressure Relief Valve Install Kit | R0336101
Quantity:
$134.33

E1
Jandy JXi/LXi Ignition Control Kit | R0456900
Jandy JXi/LXi Ignition Control Kit | R0456900
Quantity:
$373.26

E2
Jandy JXi/LXi Transformer Kit | R0456300
Jandy JXi/LXi Transformer Kit | R0456300
Quantity:
$135.24

E4
Jandy JXi User Interface Lid Kit | R0592000
Jandy JXi User Interface Lid Kit | R0592000
Quantity:
$23.10

E5
Jandy JXi Wiring Harness Kit | R0592100
Jandy JXi Wiring Harness Kit | R0592100
Quantity:
$235.61

E6
Jandy JXi/LXi Air Pressure Switch Kit | R0456400
Jandy JXi/LXi Air Pressure Switch Kit | R0456400
Quantity:
$131.46

E7
Jandy JXi/LXi Vent Limit Switch Kit | R0524300
Jandy JXi/LXi Vent Limit Switch Kit | R0524300
Quantity:
$19.71

E8
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Quantity:
$85.84

E9
Jandy JXi/LXi Universal Controller PCB Kit | R0458200
Jandy JXi/LXi Universal Controller PCB Kit | R0458200
Quantity:
$506.56

E10
Jandy JXi/LXi Power Distribution PCB Kit | R0458100
Jandy JXi/LXi Power Distribution PCB Kit | R0458100
Quantity:
$127.73

E11
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Quantity:
$116.89

E12
Jandy JXi High Limit Temperature Sensors Kit | R0592300
Jandy JXi High Limit Temperature Sensors Kit | R0592300
Quantity:
$69.12

E14
Jandy JXi Power Interface Harness | R0457700
Jandy JXi Power Interface Harness | R0457700
Quantity:
$55.22
