Jandy Legacy LRZ Pool Heater | 325,000 BTU Propane | Electronic Ignition | Digital Controls | Polymer Heads | LRZ325EP Parts

Back to Product

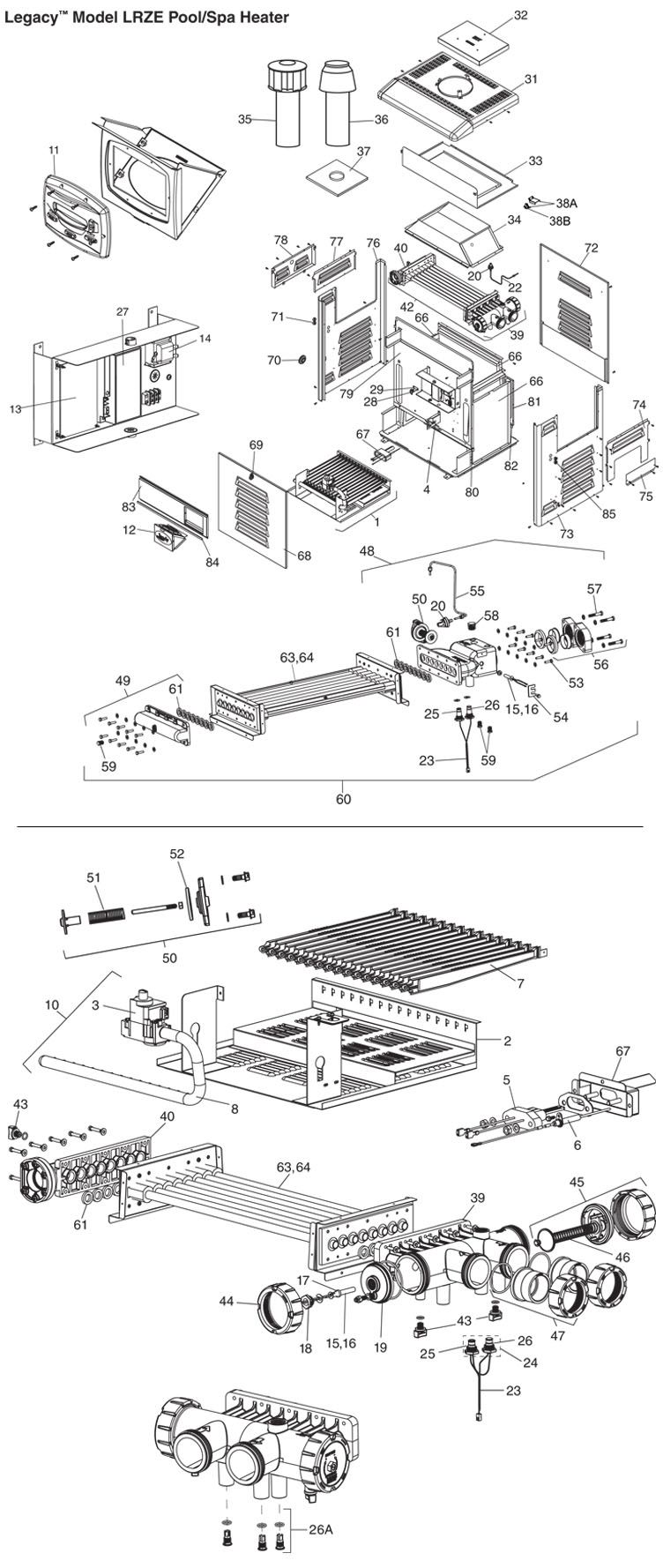

Jandy Legacy LRZ Pool Heater | 325,000 BTU Propane | Electronic Ignition | Digital Controls | Polymer Heads | LRZ325EP Parts Schematic
3
Jandy Legacy LRZ Gas Valve Natural Gas | R0494500
Jandy Legacy LRZ Gas Valve Natural Gas | R0494500
Quantity:
$321.60

5
Jandy Laars Hot Surface Ignitor LRZ Models | R0457501
Jandy Laars Hot Surface Ignitor LRZ Models | R0457501
Quantity:
$182.72

7
Jandy Laars Main Burner Assembly Lite / Lite2 / Legacy Models | R0469800
Jandy Laars Main Burner Assembly Lite / Lite2 / Legacy Models | R0469800
Quantity:
$31.05

11
Jandy Legacy LRZE Heater and EE-Ti Heat Pump Universal Control User Interface | R3008800
Jandy Legacy LRZE Heater and EE-Ti Heat Pump Universal Control User Interface | R3008800
Quantity:
$466.43

12
Zodiac LRZE Universal Control with Bezel | R0496700
Zodiac LRZE Universal Control with Bezel | R0496700
Quantity:
$535.94

13
Jandy Control Power Interface LRZE Electronic Heaters | R0470200
Jandy Control Power Interface LRZE Electronic Heaters | R0470200
Quantity:
$177.07

14
Zodiac Jandy Laars Heater 24V Transformer 115V-220V | R0061100
Zodiac Jandy Laars Heater 24V Transformer 115V-220V | R0061100
Quantity:
$74.54

15
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Quantity:
$111.36

16
R0477300 LRZM LRZE TEMP SENSOR SALT
R0477300 LRZM LRZE TEMP SENSOR SALT
Call us to order.

17
Zodiac Temperature Sensor Gasket | R0456600
Zodiac Temperature Sensor Gasket | R0456600
Quantity:
$6.65

19
R0455400 LRZM LRZE CAP SENSOR & PRES SWITCH
R0455400 LRZM LRZE CAP SENSOR & PRES SWITCH
Quantity:
$44.94

20
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Jandy JXi/LXi Water Pressure Switch Kit | R0013200
Quantity:
$85.84

21
R0015500 PRESSURE SWITCH 1-10 PSI
R0015500 PRESSURE SWITCH 1-10 PSI
Quantity:
$105.91

22
R0483600 LRZM LRZE WATER PRES SWITCH TUBING
R0483600 LRZM LRZE WATER PRES SWITCH TUBING
Quantity:
$84.88

23
Jandy Laars LRZE High Limit Switch Assembly | R0457400
Jandy Laars LRZE High Limit Switch Assembly | R0457400
Quantity:
$53.17

24
Jandy Laars LXI Series High Limit Switches | R0457200
Jandy Laars LXI Series High Limit Switches | R0457200
Quantity:
$93.10

25
Jandy Laars High Limit Switch 130 Degrees | R0457300
Jandy Laars High Limit Switch 130 Degrees | R0457300
Quantity:
$49.00

26
Jandy Laars High Limit Switch 150 Degrees | R0023000
Jandy Laars High Limit Switch 150 Degrees | R0023000
Quantity:
$49.00

26A
Zodiac Temperature Sensor Gasket | R0456600
Zodiac Temperature Sensor Gasket | R0456600
Quantity:
$6.65

27
Jandy Laars Ignition Control Module LRZE Electronic Models | R0491300
Jandy Laars Ignition Control Module LRZE Electronic Models | R0491300
Quantity:
$137.53

28
Jandy Fusible Link Assembly | R0012200
Jandy Fusible Link Assembly | R0012200
Quantity:
$17.55

29
Jandy Laars Fusible Link Bracket LRZM LRZE | R0337200
Jandy Laars Fusible Link Bracket LRZM LRZE | R0337200
Quantity:
$16.77

30
R0470000 LRZE WIRE HARNESS SET
R0470000 LRZE WIRE HARNESS SET
Call us to order.

31
R0470304 LRZM LRZE TOP ENCLOSURE 325BTU
R0470304 LRZM LRZE TOP ENCLOSURE 325BTU
Quantity:
$567.26

32
R0470404 LRZM LRZE VENT COVER 325BTU
R0470404 LRZM LRZE VENT COVER 325BTU
Quantity:
$45.71

33
R0478204 LRZM LRZE RAINSHIELD 325BTU
R0478204 LRZM LRZE RAINSHIELD 325BTU
Quantity:
$123.94

34
R0470504 LRZM LRZE FLUE COLLECTOR ASSY 325BTU
R0470504 LRZM LRZE FLUE COLLECTOR ASSY 325BTU
Quantity:
$281.48

35
Zodiac LRZM LRZE Outdoor Vent Cap 325BTU | R0491604
Zodiac LRZM LRZE Outdoor Vent Cap 325BTU | R0491604
Quantity:
$182.25

36
Jandy Legacy Indoor Drafthood Kit LRZ Model Heaters 325K BTU | R0499604
Jandy Legacy Indoor Drafthood Kit LRZ Model Heaters 325K BTU | R0499604
Quantity:
$206.24

37
R0478304 LRZM LRZE ADAPTER PLATE 325BTU
R0478304 LRZM LRZE ADAPTER PLATE 325BTU
Quantity:
$22.92

38
R0500200 LRZM LRZE CLIP AllBTU
R0500200 LRZM LRZE CLIP AllBTU
Quantity:
$19.88

39
Zodiac Jandy R0470800 LRZM LRZE INLET/OUTLET HEADER ASSY
Zodiac Jandy R0470800 LRZM LRZE INLET/OUTLET HEADER ASSY
Quantity:
$727.52

40
Jandy Return Header Assembly LRZ Model Heaters | R0454200
Jandy Return Header Assembly LRZ Model Heaters | R0454200
Quantity:
$210.96

41
R0454500 LRZM LRZE HEADER HARDWARE SET
R0454500 LRZM LRZE HEADER HARDWARE SET
Quantity:
$138.71

42
R0470604 LRZE HEAT EXCH ASSY 325BTU
R0470604 LRZE HEAT EXCH ASSY 325BTU
Quantity:
$1,621.38

42
R0500704 LRZE HEAT EXCH ASSY 325BTU CUP-NIC
R0500704 LRZE HEAT EXCH ASSY 325BTU CUP-NIC
Quantity:
$2,337.69

43
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$16.51

44
R0454000 LXI SERIES UNIVERSAL UNION KIT (2)
R0454000 LXI SERIES UNIVERSAL UNION KIT (2)
Quantity:
$62.61

45
Jandy LXi Bypass Assembly with O-Ring and Hardware | R0453700
Jandy LXi Bypass Assembly with O-Ring and Hardware | R0453700
Quantity:
$37.45

46
R0453900 LRZM LRZE BYPASS SPRING
R0453900 LRZM LRZE BYPASS SPRING
Quantity:
$44.94

47
Zodiac Tail Piece Kit | R0449000
Zodiac Tail Piece Kit | R0449000
Quantity:
$44.30

52
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Quantity:
$7.95

67
Jandy LRZE Igniter Bracket | R0484000
Jandy LRZE Igniter Bracket | R0484000
Quantity:
$83.98

87
Zodiac Jandy Pressure Relief Valve 75 PSI 3/4" NPT | R0040400
Zodiac Jandy Pressure Relief Valve 75 PSI 3/4" NPT | R0040400
Quantity:
$58.34

88
Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100
Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100
Quantity:
$64.87

89
R0335800 HEATER TOUCH UP PAINT PEWTER
R0335800 HEATER TOUCH UP PAINT PEWTER
Call us to order.

90
Zodiac Temperature Rise Measurement Kit | R0336000
Zodiac Temperature Rise Measurement Kit | R0336000
Quantity:
$133.65
