Jandy LXi Pool Heater | 250,000 BTU Propane | Electronic Ignition | Digital Controls | Cupro Nickel Heat Exhanger | Polymer Heads | LXi250PN Parts

Back to Product

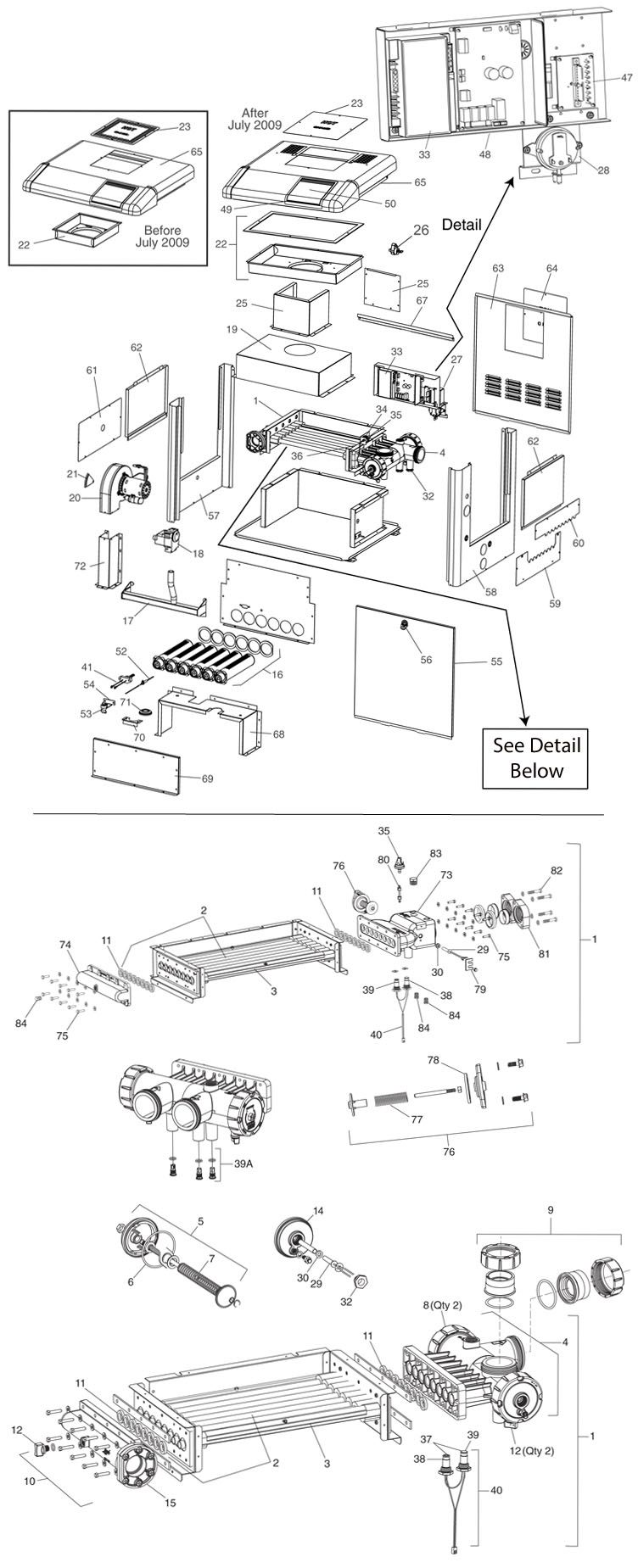

Jandy LXi Pool Heater | 250,000 BTU Propane | Electronic Ignition | Digital Controls | Cupro Nickel Heat Exhanger | Polymer Heads | LXi250PN Parts Schematic
1
R0453303 LXi 250 COMPLETE HEAT EXCHANGER (CU)
R0453303 LXi 250 COMPLETE HEAT EXCHANGER (CU)
Quantity:
$1,498.01

4
R0453600 FRONT HEADER LXI
R0453600 FRONT HEADER LXI
Quantity:
$727.52

5
Jandy LXi Bypass Assembly with O-Ring and Hardware | R0453700
Jandy LXi Bypass Assembly with O-Ring and Hardware | R0453700
Quantity:
$37.45

7
R0453900 LRZM LRZE BYPASS SPRING
R0453900 LRZM LRZE BYPASS SPRING
Quantity:
$44.94

8
R0454000 LXI SERIES UNIVERSAL UNION KIT (2)
R0454000 LXI SERIES UNIVERSAL UNION KIT (2)
Quantity:
$62.61

9
Zodiac Tail Piece Kit | R0449000
Zodiac Tail Piece Kit | R0449000
Quantity:
$44.30

10
Jandy Return Header Assembly LRZ Model Heaters | R0454200
Jandy Return Header Assembly LRZ Model Heaters | R0454200
Quantity:
$210.96

12
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$16.51

14
R0455400 LRZM LRZE CAP SENSOR & PRES SWITCH
R0455400 LRZM LRZE CAP SENSOR & PRES SWITCH
Quantity:
$44.94

18
R0455300 LXi GAS VALVE - LP
R0455300 LXi GAS VALVE - LP
Quantity:
$311.73

20
R0455600 LXi BLOWER ASSY W/GASKETS
R0455600 LXi BLOWER ASSY W/GASKETS
Quantity:
$651.91

27
Jandy JXi/LXi Transformer Kit | R0456300
Jandy JXi/LXi Transformer Kit | R0456300
Quantity:
$135.24

28
Jandy JXi/LXi Air Pressure Switch Kit | R0456400
Jandy JXi/LXi Air Pressure Switch Kit | R0456400
Quantity:
$131.46

29
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Jandy JXi/LXi Temperature Sensor Kit | R0456500
Quantity:
$111.36

29
R0477300 LRZM LRZE TEMP SENSOR SALT
R0477300 LRZM LRZE TEMP SENSOR SALT
Call us to order.

30
Zodiac Temperature Sensor Gasket | R0456600
Zodiac Temperature Sensor Gasket | R0456600
Quantity:
$6.65

33
Jandy JXi/LXi Ignition Control Kit | R0456900
Jandy JXi/LXi Ignition Control Kit | R0456900
Quantity:
$373.26

35
Jandy JXi/LXi Ignition Control Kit | R0456900
Jandy JXi/LXi Ignition Control Kit | R0456900
Quantity:
$373.26

37
Jandy Laars LXI Series High Limit Switches | R0457200
Jandy Laars LXI Series High Limit Switches | R0457200
Quantity:
$93.10

38
Jandy Laars High Limit Switch 130 Degrees | R0457300
Jandy Laars High Limit Switch 130 Degrees | R0457300
Quantity:
$49.00

39
Jandy Laars High Limit Switch 150 Degrees | R0023000
Jandy Laars High Limit Switch 150 Degrees | R0023000
Quantity:
$49.00

39A
Jandy Laars LRZM LRZE Heater Temperature Sensor Plug | R0456800
Jandy Laars LRZM LRZE Heater Temperature Sensor Plug | R0456800
Quantity:
$14.76

40
Jandy Laars LRZE High Limit Switch Assembly | R0457400
Jandy Laars LRZE High Limit Switch Assembly | R0457400
Quantity:
$53.17

41
Jandy Laars LXi Hot Surface Ignitor | R0457500
Jandy Laars LXi Hot Surface Ignitor | R0457500
Quantity:
$132.78

47
Jandy JXi/LXi Power Distribution PCB Kit | R0458100
Jandy JXi/LXi Power Distribution PCB Kit | R0458100
Quantity:
$127.73

48
Jandy JXi/LXi Universal Controller PCB Kit | R0458200
Jandy JXi/LXi Universal Controller PCB Kit | R0458200
Quantity:
$506.56

49
Jandy LXi Series Heater Control User Interface Kit | R0458300
Jandy LXi Series Heater Control User Interface Kit | R0458300
Quantity:
$475.35

52
Zodiak Pool Systems LXI Flame Sensor | R0458600
Zodiak Pool Systems LXI Flame Sensor | R0458600
Quantity:
$81.02

53
Jandy Fusible Link Assembly | R0012200
Jandy Fusible Link Assembly | R0012200
Quantity:
$17.55

54
Jandy Laars Fusible Link Bracket LRZM LRZE | R0337200
Jandy Laars Fusible Link Bracket LRZM LRZE | R0337200
Quantity:
$16.77

78
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Zodiac Jandy Bypass Valve Gasket Hi-E2 | R0011400
Quantity:
$7.95

Zodiac Temperature Rise Measurement Kit | R0336000
Zodiac Temperature Rise Measurement Kit | R0336000
Quantity:
$133.65

R0457600 LXI SERIES WIRE HARNESS COMPLETE
R0457600 LXI SERIES WIRE HARNESS COMPLETE
Quantity:
$206.66

R0454500 LRZM LRZE HEADER HARDWARE SET
R0454500 LRZM LRZE HEADER HARDWARE SET
Quantity:
$138.71

LXi 250 COMPLETE HEAT EXCHANGER ASME Cupro | R0500603
LXi 250 COMPLETE HEAT EXCHANGER ASME Cupro | R0500603
Quantity:
$2,581.85

R0467301 SIDE WALL VENT KIT 250LXI
R0467301 SIDE WALL VENT KIT 250LXI
Quantity:
$73.36

Horizontal Venting for LXI Heater 6" | R0484406
Horizontal Venting for LXI Heater 6" | R0484406
Quantity:
$752.37

R0335800 HEATER TOUCH UP PAINT PEWTER
R0335800 HEATER TOUCH UP PAINT PEWTER
Call us to order.

Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100
Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100
Quantity:
$64.87

R0467500 (W/UNIVERSAL CONTROL) REMOTE MOUNTING KIT F/HEATER
R0467500 (W/UNIVERSAL CONTROL) REMOTE MOUNTING KIT F/HEATER
Quantity:
$418.28

AUTOHEAT (W/UNIVERSAL CONTROL) REMOTE MOUNT AUTO KIT F/HEATER
AUTOHEAT (W/UNIVERSAL CONTROL) REMOTE MOUNT AUTO KIT F/HEATER
Quantity:
$863.68
