Home Jandy FloPro Variable Speed Pump without Controller | 1.65HP Full-Rated | 230V Energy Efficient | VS-FHP165AUT Parts

Jandy FloPro Variable Speed Pump without Controller | 1.65HP Full-Rated | 230V Energy Efficient | VS-FHP165AUT Parts

Back to Product

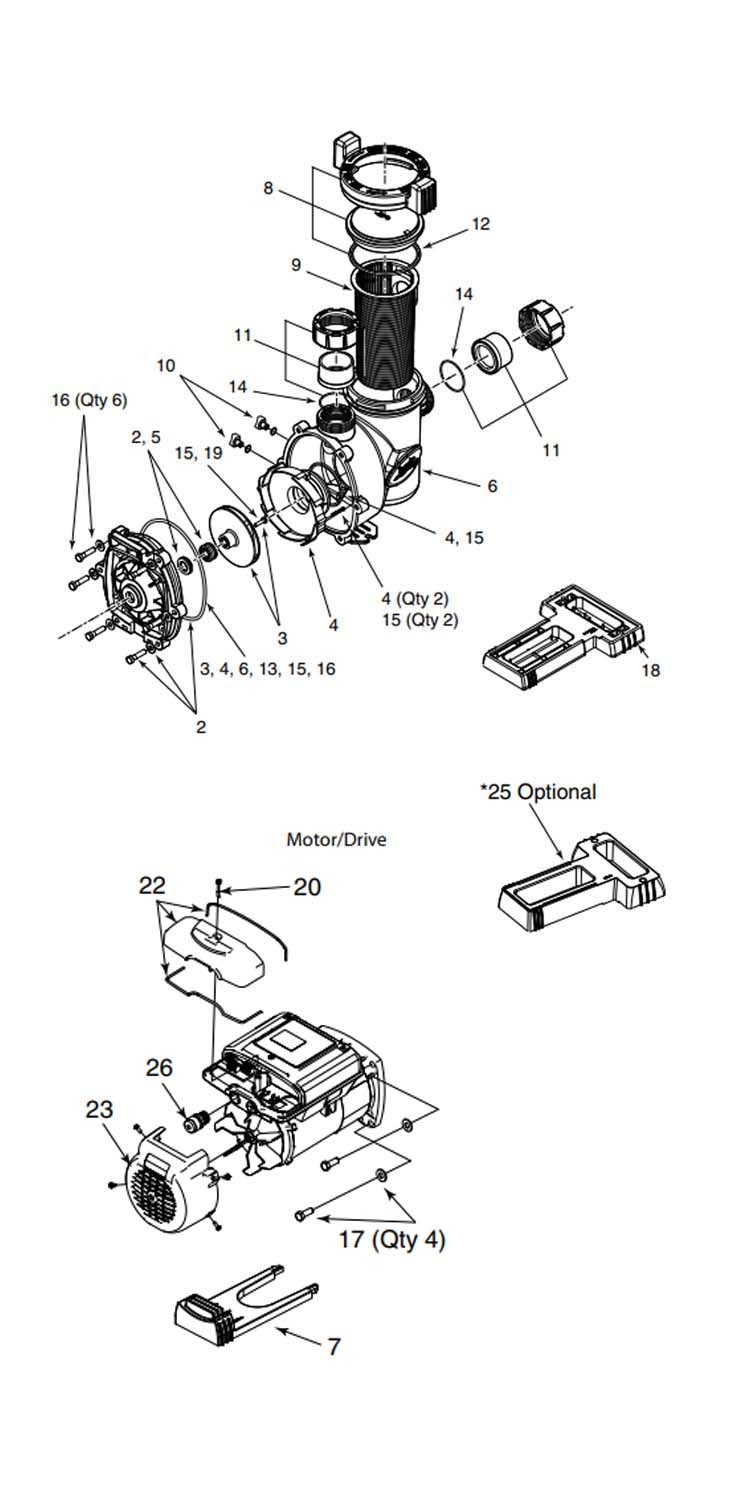

Jandy FloPro Variable Speed Pump without Controller | 1.65HP Full-Rated | 230V Energy Efficient | VS-FHP165AUT Parts Schematic
1
Jandy TEFC Variable Speed Motor and Drive without JEP-R Controller | 1.65HP | 230V | R0670400
Jandy TEFC Variable Speed Motor and Drive without JEP-R Controller | 1.65HP | 230V | R0670400
Quantity:
$1,156.85

2
Jandy FloPro FHPM Series Backplate Kit | R0479500
Jandy FloPro FHPM Series Backplate Kit | R0479500
Quantity:
$99.71

3
Jandy 1.5HP FHPM Impeller Kit with Screw & O-Ring | R0479603
Jandy 1.5HP FHPM Impeller Kit with Screw & O-Ring | R0479603
Quantity:
$56.35

4
Jandy 1.5-2.5HP FHPM Diffuser Kit | R0479701
Jandy 1.5-2.5HP FHPM Diffuser Kit | R0479701
Quantity:
$53.56

5
Jandy Mechanical Shaft Seal | R0479400
Jandy Mechanical Shaft Seal | R0479400
Quantity:
$33.32

6
Jandy FHPM Pump Body | R0479800
Jandy FHPM Pump Body | R0479800
Quantity:
$224.18

7
Zodiac Motor Mounting Foot Replacement for Zodiac VS FloPro Series Pump | R0479900
Zodiac Motor Mounting Foot Replacement for Zodiac VS FloPro Series Pump | R0479900
Quantity:
$32.26

8
Jandy Lid with Locking Ring Assembly | R0480000
Jandy Lid with Locking Ring Assembly | R0480000
Quantity:
$81.61

9
Jandy Pump Strainer Basket FHPM Models | R0480100
Jandy Pump Strainer Basket FHPM Models | R0480100
Quantity:
$29.40

10
Jandy Drain Plug Kit | R0446000
Jandy Drain Plug Kit | R0446000
Quantity:
$17.40

11
Jandy Tailpiece & Union Nut Kit | R0327301
Jandy Tailpiece & Union Nut Kit | R0327301
Quantity:
$46.89

12
Jandy FHP Strainer Cover O-Ring | R0480200
Jandy FHP Strainer Cover O-Ring | R0480200
Quantity:
$18.70

13
Jandy FHP Backplate O-Ring | R0480300
Jandy FHP Backplate O-Ring | R0480300
Quantity:
$17.00

14
Jandy Tailpiece O-ring | 2-Pack | R0337600
Jandy Tailpiece O-ring | 2-Pack | R0337600
Quantity:
$11.29

15
Jandy FHP Diffuser/Impeller Hardware Kit | R0480400
Jandy FHP Diffuser/Impeller Hardware Kit | R0480400
Quantity:
$37.48

16
Jandy Pro Series Backplate Hardware FHP VS-FHP | R0480500
Jandy Pro Series Backplate Hardware FHP VS-FHP | R0480500
Quantity:
$50.32

17
Jandy Motor Hardware Kit | R0446700
Jandy Motor Hardware Kit | R0446700
Quantity:
$40.22

18
Jandy Base Spacer FHP VS-FHP Small | R0486700
Jandy Base Spacer FHP VS-FHP Small | R0486700
Quantity:
$45.48

19
Jandy JEP Series Gen II Fan Cover | R0562400
Jandy JEP Series Gen II Fan Cover | R0562400
Quantity:
$44.54

19
Jandy SHPF/SHPM/PHPF/PHPM Impeller Screw with O-Ring | R0515400
Jandy SHPF/SHPM/PHPF/PHPM Impeller Screw with O-Ring | R0515400
Quantity:
$15.34

20
Jandy VS-FHP1.0 Rear Access Cover Screw | R0587600
Jandy VS-FHP1.0 Rear Access Cover Screw | R0587600
Quantity:
$18.57

22
Jandy VS-FHP1.0 Access Cover | R0571400
Jandy VS-FHP1.0 Access Cover | R0571400
Quantity:
$126.36

23
Jandy VS-FHP1.0 Fan Cover | R0571300
Jandy VS-FHP1.0 Fan Cover | R0571300
Quantity:
$42.76

25
Jandy Base Spacer FHP VS-FHP | Large | R0546400
Jandy Base Spacer FHP VS-FHP | Large | R0546400
Quantity:
$40.35

26
Jandy VS-FHP1.0 Conduit Fitting 1/2" NPT | R0501101
Jandy VS-FHP1.0 Conduit Fitting 1/2" NPT | R0501101
Quantity:
$20.79
