Lochinvar EnergyRite Pool Heater 400K BTU | Electronic Ignition | Digital Controls | Natural Gas | ERN-402 | 100143232 Parts

Back to Product

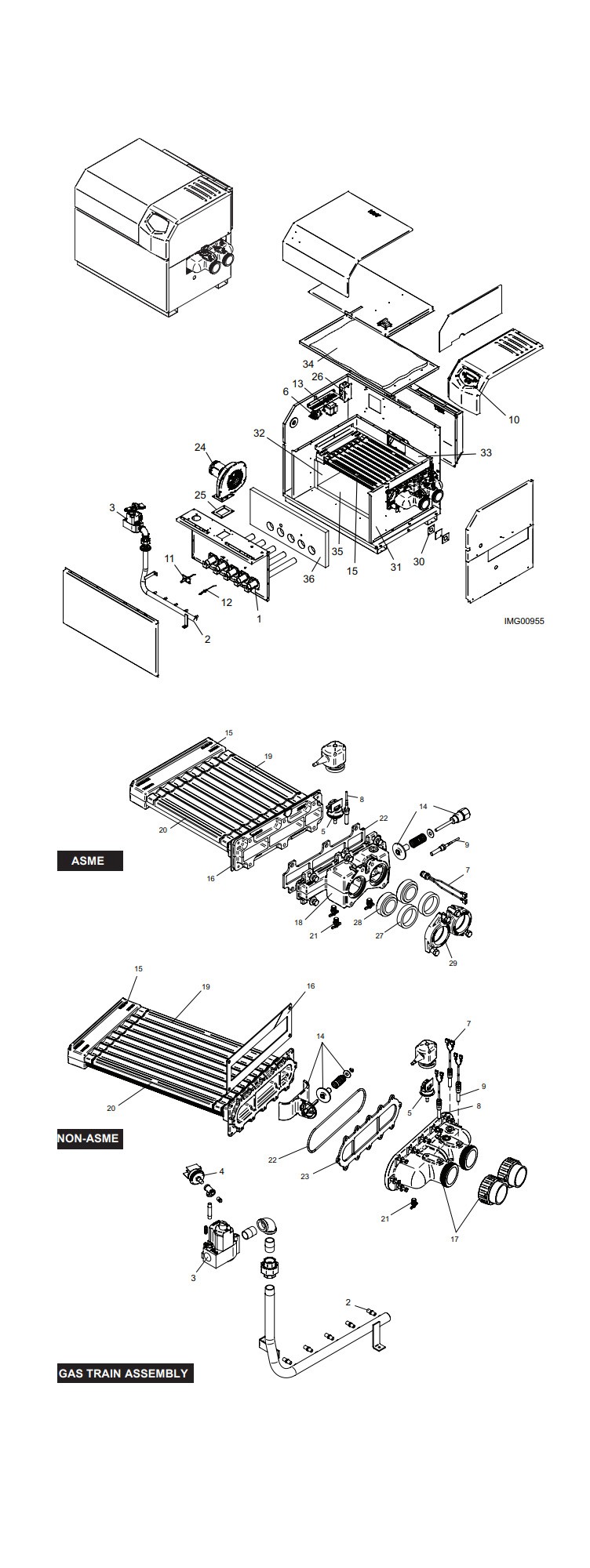

Lochinvar EnergyRite Pool Heater 400K BTU | Electronic Ignition | Digital Controls | Natural Gas | ERN-402 | 100143232 Parts Schematic
1
Llochinvar Main Burner with Pressure Tap | 100135299
Llochinvar Main Burner with Pressure Tap | 100135299
Quantity:
$90.00

2
Lochinvar Orifice, Natural | 100208348
Lochinvar Orifice, Natural | 100208348
Quantity:
$11.57

3
Lochinvar Gas Valve, Natural | 100172022
Lochinvar Gas Valve, Natural | 100172022
Quantity:
$180.72

4
Lochinvar 4.1" Switch, Gas Pressure, Natural | 100208389
Lochinvar 4.1" Switch, Gas Pressure, Natural | 100208389
Quantity:
$64.19

5
Lochinvar Pressure Switch 1-5 PSI | 100166256
Lochinvar Pressure Switch 1-5 PSI | 100166256
Quantity:
$53.78

6
Lochinvar Air Pressure Switch 1.35" Water Column | 100166258
Lochinvar Air Pressure Switch 1.35" Water Column | 100166258
Quantity:
$48.54

7
Lochinvar High Limit Over Temp | 100208570
Lochinvar High Limit Over Temp | 100208570
Quantity:
$52.77

8
Lonchivar Immersion Inlet Sensor | 100208553
Lonchivar Immersion Inlet Sensor | 100208553
Quantity:
$43.91

9
Lochinvar EnergyRite Sensor Inmersor Outlet | 100208548
Lochinvar EnergyRite Sensor Inmersor Outlet | 100208548
Quantity:
$56.03

10
Lochinvar Sealed Integrated Control | 100286274
Lochinvar Sealed Integrated Control | 100286274
Quantity:
$359.96

11
Lochinvar Spark Ignitor | 100165932
Lochinvar Spark Ignitor | 100165932
Quantity:
$71.07

12
Lochinvar Flame Sensor | 100165921
Lochinvar Flame Sensor | 100165921
Quantity:
$46.42

13
Lochinvar Transformer | 120-240V to 24V | 100277852
Lochinvar Transformer | 120-240V to 24V | 100277852
Quantity:
$41.60

14
Lochinvar Bypass Assembly | 100163258
Lochinvar Bypass Assembly | 100163258
Quantity:
$65.46

15
Lochinvar Non-ASME Heat Exchanger | 400MBH | 100147467
Lochinvar Non-ASME Heat Exchanger | 400MBH | 100147467
Quantity:
$1,461.40

16
Lochinvar Heat Shield Gasket | 100277728
Lochinvar Heat Shield Gasket | 100277728
Quantity:
$13.94

17
Lochinvar Header with Connection | 100173746
Lochinvar Header with Connection | 100173746
Quantity:
$166.90

-
Lochinvar Header Connection | 100173757
Lochinvar Header Connection | 100173757
Quantity:
$39.25

19
Lochinvar V-Baffle | 100290359
Lochinvar V-Baffle | 100290359
Quantity:
$19.18

20
Lochinvar Frame Runner | 100152230
Lochinvar Frame Runner | 100152230
Quantity:
$42.98

21
Lochinvar Drain Cock | 100233423
Lochinvar Drain Cock | 100233423
Quantity:
$13.94

22
Lochinvar O-Ring, Header Polymer | 100233722
Lochinvar O-Ring, Header Polymer | 100233722
Quantity:
$16.73

23
Lochinvar NON ASME Gasket Header | 100290348
Lochinvar NON ASME Gasket Header | 100290348
Quantity:
$24.06

24
Lochinvar Combustion Air Fan 115-230VAC | 100145012
Lochinvar Combustion Air Fan 115-230VAC | 100145012
Quantity:
$241.34

25
Lochinvar Fan Gasket | 100233675
Lochinvar Fan Gasket | 100233675
Quantity:
$18.79

26
Lochinvar On-Off Switch | 100288472
Lochinvar On-Off Switch | 100288472
Quantity:
$28.62

30
Lochinvar Sight Glass Kit | 100163259
Lochinvar  Sight Glass Kit | 100163259
Quantity:
$32.76

N/A
Lochinvar Gasket Strip | Fiberglass | White | 100146604
Lochinvar Gasket Strip | Fiberglass | White | 100146604
Quantity:
$24.81

N/A
Lochinvar Tubing EPDM | 100163202
Lochinvar Tubing EPDM | 100163202
Quantity:
$64.53

N/A
Lochinvar Escutcheon Plug Gasket | 100208097
Lochinvar Escutcheon Plug Gasket | 100208097
Quantity:
$11.57

N/A
Lochinvar Gasket PVC | Black | 100146588
Lochinvar Gasket PVC | Black | 100146588
Quantity:
$54.65

N/A
Lochinvar Gasket Tape, Silicone Sponge | 100146589
Lochinvar Gasket Tape, Silicone Sponge | 100146589
Quantity:
$84.75

N/A
Lochinvar Relief Valve | 100208454
Lochinvar Relief Valve | 100208454
Quantity:
$43.91

N/A
Lochinvar Silicone Tubing | 100163209
Lochinvar Silicone Tubing | 100163209
Quantity:
$47.47

31
Lochinvar Insulation Front Head Side Panel | 100145548
Lochinvar Insulation Front Head Side Panel | 100145548
Quantity:
$33.62

32
Lochinvar Insulation Rear Head Side Panel | 100145549
Lochinvar Insulation Rear Head Side Panel | 100145549
Quantity:
$28.62

33
Lochinvar Insulation Back Panel | 100145510
Lochinvar Insulation Back Panel | 100145510
Quantity:
$64.53

34
Lochinvar Insulation Top | 100145729
Lochinvar Insulation Top | 100145729
Quantity:
$20.26

35
Lochinvar Insulation Bottom Panel | 100145511
Lochinvar Insulation Bottom Panel | 100145511
Quantity:
$70.14

36
Lochinvar Insulation Front Panel | 100145512
Lochinvar Insulation Front Panel | 100145512
Quantity:
$93.04

36
Lochinvar Insulation Front Panel | 100145334
Lochinvar Insulation Front Panel | 100145334
Quantity:
$96.57
