Home Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011008 Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011008 Parts

Back to Product

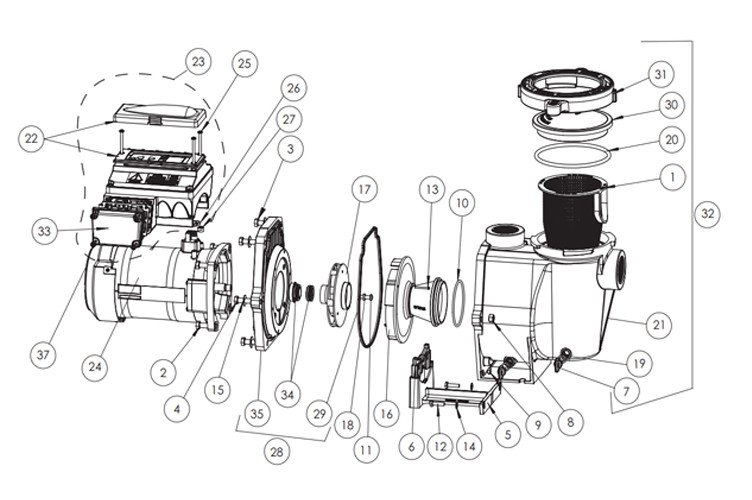

Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011008 Parts Schematic
24
Pentair VFD Motor Kit 3.2KW PMSM | Almond | 350105S
Pentair VFD Motor Kit 3.2KW PMSM  | Almond | 350105S
Quantity:
$649.63

1
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Quantity:
$16.73

2
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Quantity:
$5.27

3
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Quantity:
$5.60

4
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Quantity:
$6.11

5
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Quantity:
$38.29

6
Pentair WhisperFlo Foot Insert | Almond | 070929
Pentair WhisperFlo Foot Insert | Almond | 070929
Quantity:
$23.54

7
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$8.78

8
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$4.78

9
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.83

10
Pentair P24262 USE PAC-101-5227 #2-238 Diffuser O-Ring WFE | 071444
Pentair P24262 USE PAC-101-5227 #2-238 Diffuser O-Ring WFE | 071444
Call us to order.

11
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Quantity:
$5.07

12
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Quantity:
$4.20

13
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Quantity:
$5.56

14
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Quantity:
$4.83

15
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$4.78

16
Pentair IntelliFlo Diffuser Assembly | 1HP | 072930
Pentair IntelliFlo Diffuser Assembly | 1HP | 072930
Quantity:
$68.71

17
Pentair Impeller | 1HP Full Rate | S17096 073128
Pentair Impeller | 1HP Full Rate | S17096 073128
Quantity:
$88.89

18
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$4.78

19
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$3.51

20
Pentair Pump Trap Lid O-Ring After 1998 | 350013 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 350013Z
Quantity:
$9.39

21
Pentair Housing WFE | Almond | 350015
Pentair Housing WFE | Almond | 350015
Quantity:
$187.19

22
Pentair Intelliflo Control Cover Assembly Kit | Almond | 350601
Pentair Intelliflo Control Cover Assembly Kit | Almond | 350601
Quantity:
$177.59

23
Pentair IntelliFlo Variable Speed Drive Assembly Kit | Almond | 353251
Pentair IntelliFlo Variable Speed Drive Assembly Kit | Almond | 353251
A Recommended Replacement is available for this item.
A Recommended Replacement is available for this item.
This item has been discontinued.

25
Pentair Stainless Steel Screw 10-24 x 3 1/4" PH MS 18-8 | 350107
Pentair Stainless Steel Screw 10-24 x 3 1/4" PH MS 18-8 | 350107
Quantity:
$7.77

26
Pentair IntelliFlo Drive Gasket | 350108
Pentair IntelliFlo Drive Gasket | 350108
Quantity:
$13.06

27
Pentair Motor Spacer Cap | Orange | 350142
Pentair Motor Spacer Cap | Orange | 350142
Quantity:
$32.53

28
Pentair Seal Plate Kit with Gasket | Almond | 350202
Pentair Seal Plate Kit with Gasket | Almond | 350202
Quantity:
$167.46

29
Pentair Seal Plate Gasket | Black | 357100 357100Z
Pentair Seal Plate Gasket | Black | 357100 357100Z
Quantity:
$8.26

30
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Quantity:
$36.44

31
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Quantity:
$44.98

32
Pentair Pot & Volute Kit | Almond | 357243
Pentair Pot & Volute Kit | Almond | 357243
This item is currently out of stock.

33
Pentair Junction Box Cover with Screws and Gasket | Almond | 350621
Pentair Junction Box Cover with Screws and Gasket | Almond | 350621
Quantity:
$15.45

34
Pentair PS1000 WFE Seal Kit | 071734S
Pentair PS1000 WFE Seal Kit | 071734S
Quantity:
$32.42

35
Pentair Seal Plate | Almond | 074564 074564Z
Pentair Seal Plate | Almond | 074564 074564Z
Quantity:
$95.74

N/A
Pentair 2" Slip x 2" MPT Union Kit | 357603
Pentair 2" Slip x 2" MPT Union Kit | 357603
Quantity:
$98.35

N/A
Pentair Hardware & Gasket Assembly Kit | 350612
Pentair Hardware & Gasket Assembly Kit | 350612
Quantity:
$95.18

N/A
Pentair IntelliFlo 50ft Communication Cable | 350122
Pentair IntelliFlo 50ft Communication Cable | 350122
Quantity:
$110.21

N/A
Pentair Volute and Seal Plate Kit | 074565 357149
Pentair Volute and Seal Plate Kit | 074565 357149
Quantity:
$239.72
