Home Pentair Intelliflo Variable Speed Energy Efficient Pump VS+SVRS 3.2kW 3HP Max 230V | 011017 Parts

Pentair Intelliflo Variable Speed Energy Efficient Pump VS+SVRS 3.2kW 3HP Max 230V | 011017 Parts

Back to Product

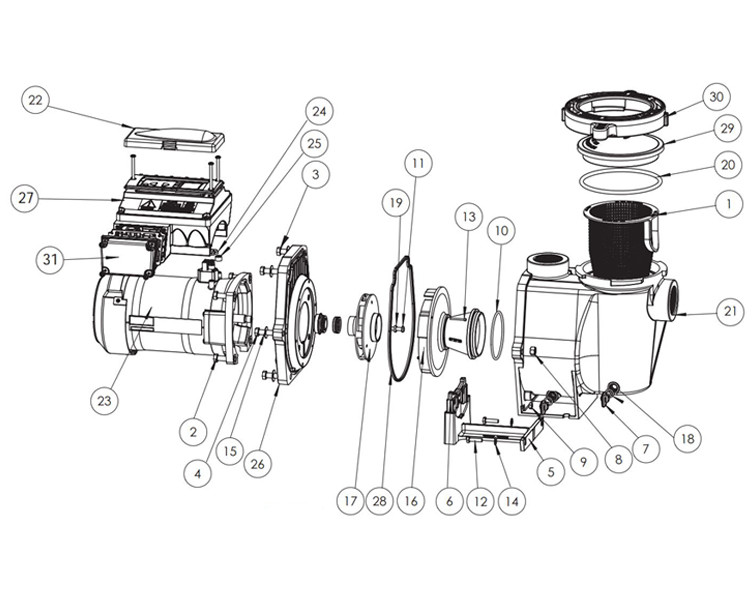

Pentair Intelliflo Variable Speed Energy Efficient Pump VS+SVRS 3.2kW 3HP Max 230V | 011017 Parts Schematic
23
Pentair VFD Motor Kit 3.2KW PMSM | Almond | 350105S
Pentair VFD Motor Kit 3.2KW PMSM  | Almond | 350105S
Quantity:
$699.24

1
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Quantity:
$20.39

2
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Quantity:
$11.99

3
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Quantity:
$12.99

4
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Quantity:
$5.82

5
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Quantity:
$39.87

6
Pentair WhisperFlo Foot Insert | Almond | 070929
Pentair WhisperFlo Foot Insert | Almond | 070929
Quantity:
$24.83

7
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$9.93

8
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$4.16

9
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.41

10
Whisperflow Inteliflo Diffuser O-Ring 071444 P24262 | O-359-9
Whisperflow Inteliflo Diffuser O-Ring 071444 P24262 | O-359-9
Quantity:
$4.98

11
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 | 071652Z
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 | 071652Z
Quantity:
$13.99

12
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Quantity:
$4.20

13
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Quantity:
$13.99

14
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Pentair Flat Washer 1/4" ID x 5/8" OD Stainless Steel | 2 Required | P35010 072183
Quantity:
$4.24

15
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$10.99

16
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Pentair Whisperflo Diffuser Assembly 3HP Only WFE | Black | 072928
Quantity:
$87.07

17
Pentair Whisperflo & Intelliflo Impeller Purex | 3HP Full Rate | WFE 12 | 073131
Pentair Whisperflo & Intelliflo Impeller Purex | 3HP Full Rate | WFE 12 | 073131
Quantity:
$94.60

18
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

19
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$4.16

20
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.00

21
Pentair Housing WFE | Almond | 350015
Pentair Housing WFE | Almond | 350015
Quantity:
$201.47

22
Pentair Intelliflo Control Cover Assembly Kit | Almond | 350601
Pentair Intelliflo Control Cover Assembly Kit | Almond | 350601
Quantity:
$191.16

24
Pentair IntelliFlo Drive Gasket | 350108
Pentair IntelliFlo Drive Gasket | 350108
Quantity:
$14.04

25
Pentair Motor Spacer Cap | Orange | 350142
Pentair Motor Spacer Cap | Orange | 350142
Quantity:
$35.00

26
Pentair Whisperflo Intelliflo Seal Plate Kit | Almond | 350201
Pentair Whisperflo Intelliflo Seal Plate Kit | Almond | 350201
Quantity:
$117.85

27
Pentair Intelliflo Drive Kit VS+SVRS | 351021
Pentair Intelliflo Drive Kit VS+SVRS | 351021
Call us to order.

28
Pentair Seal Plate Gasket | Black | 357100 357100Z
Pentair Seal Plate Gasket | Black | 357100 357100Z
Quantity:
$8.26

29
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Quantity:
$38.55

30
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Quantity:
$47.10

31
Pentair Junction Box Cover with Screws and Gasket | Almond | 350621
Pentair Junction Box Cover with Screws and Gasket | Almond | 350621
Quantity:
$16.63

32
Pentair SVRS Suction Gauge | 353200
Pentair SVRS Suction Gauge | 353200
Quantity:
$45.93
