Home Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011059 Parts
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011059 Parts

Back to Product

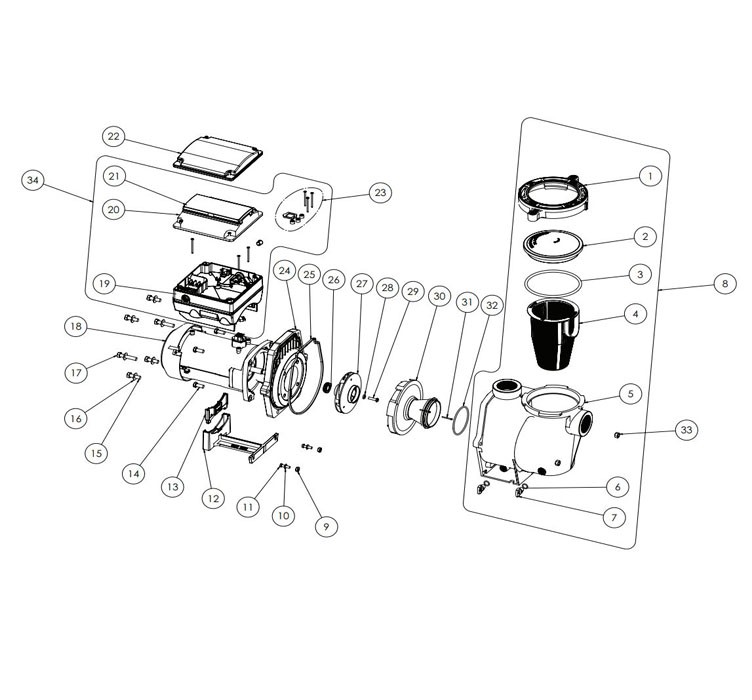

Pentair IntelliFlo i1 Variable Speed Pump VS+ 1HP | Time Clock Included | 011059 Parts Schematic
18
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Quantity:
$566.34

1
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Pentair WhisperFlo IntelliFlo Cam and Ramp Plastic Clamp | Almond | 357199
Quantity:
$40.62

2
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Pentair IntelliFlo WhisperFlo Strainer Cover After 1998 | Clear | 357151
Quantity:
$33.86

3
Pentair Pump Trap Lid O-Ring After 1998 | 350013 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 350013Z
Quantity:
$9.39

4
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Pentair WhisperFlo & IntelliFlo Pump Strainer Basket | 070387 P01325 070387Z
Quantity:
$16.73

5
Pentair Housing WFE | Almond | 350015
Pentair Housing WFE | Almond | 350015
Quantity:
$167.32

6
Pentair Buna-N 70 Shore Drain Plug O-Ring 1/16" x 1/2" ID | 192115 192115Z
Pentair Buna-N 70 Shore Drain Plug O-Ring  1/16" x 1/2" ID | 192115 192115Z
Quantity:
$2.19

7
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$8.78

8
Pentair Pot & Volute Kit | Almond | 357243
Pentair Pot & Volute Kit | Almond | 357243
This item is currently out of stock.

9
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$3.04

10
Pentair Washer Flat 1/4" ID x 5/" OD | 2 Required | 072186
Pentair Washer Flat 1/4" ID x 5/" OD | 2 Required | 072186
Call us to order.

11
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Pentair SS Screw Hex Cap 1/4"-20 x 1" | 2-Required | P26948 071657 071657Z
Quantity:
$2.63

12
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Pentair WhisperFlo WF Motor Support Foot | Almond | 070927
Quantity:
$34.32

13
Pentair WhisperFlo Foot Insert | Almond | 070929
Pentair WhisperFlo Foot Insert | Almond | 070929
Quantity:
$20.97

14
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Pentair Bolt Hex Head 3/8"-16 x 7/8" | 4-Required | 070429 070429Z
Quantity:
$4.69

15
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$3.00

16
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Pentair Stainless Steel Bolt | 3/8-16 x 1-1/4" | 070430
Quantity:
$4.90

17
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Pentair Stainless Steel Bolt 3/8-16 x 2" | 2 Required | 070431
Quantity:
$5.38

19
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Pentair IntelliFlo Variable Speed Drive Assembly Bottom | Almond | 356878Z
Quantity:
$778.82

20
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Quantity:
$240.32

21
Pentair Control Cover Assembly Kit for Pentair IntelliFloXF Pump | Almond | 400100
Pentair Control Cover Assembly Kit for Pentair IntelliFloXF Pump | Almond | 400100
Quantity:
$163.76

22
Pentair Keypad Relocation Kit | Almond | 356904Z
Pentair Keypad Relocation Kit | Almond | 356904Z
Quantity:
$59.17

23
Pentair IntelliFlo Drive Hardware Kit | 355685
Pentair IntelliFlo Drive Hardware Kit | 355685
Quantity:
$84.85

24
Pentair Seal Plate | Almond | 074564 074564Z
Pentair Seal Plate | Almond | 074564 074564Z
Quantity:
$74.31

25
Pentair Seal Plate Gasket | Black | 357100 357100Z
Pentair Seal Plate Gasket | Black | 357100 357100Z
Quantity:
$8.26

26
Pentair PS1000 WFE Seal Kit | 071734S
Pentair PS1000 WFE Seal Kit | 071734S
Quantity:
$30.22

27
Pentair Impeller | 1HP Full Rate | S17096 073128
Pentair Impeller | 1HP Full Rate | S17096 073128
Quantity:
$78.36

28
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$3.00

29
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Pentair Impeller Screw SS | 1/4"-20 x 1" | 071652 071652Z
Quantity:
$4.50

30
Pentair IntelliFlo Diffuser Assembly | 1HP | 072930
Pentair IntelliFlo Diffuser Assembly | 1HP | 072930
Quantity:
$60.59

31
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Pentair Diffuser Screw Set 4-40 X 1-1/8 WFE Stainless Steel | 2-Required | 071660 071660Z
Quantity:
$4.92

32
Pentair Diffuser O-Ring | 355227 355227Z
Pentair Diffuser O-Ring | 355227 355227Z
Quantity:
$4.92

33
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Pentair Brass Nickel Plated Nut 3/8"-16 Hex Head Stainless Steel | 2 Required | 071403
Quantity:
$3.00

34
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Pentair IntelliFlo VS Drive Kit with Keypad | Almond | 356879Z
Quantity:
$921.52

N/A
Pentair 2" Slip x 2" MPT Union Kit | 357603
Pentair 2" Slip x 2" MPT Union Kit | 357603
Quantity:
$87.69

N/A
Pentair Motor Fan Kit | Almond | 352401
Pentair Motor Fan Kit | Almond | 352401
Quantity:
$132.82

N/A
Pentair Power End for Intelliflo 2 VST | 354044
Pentair Power End for Intelliflo 2 VST | 354044
Quantity:
$1,506.62

N/A
Pentair Seal Plate Kit | Ozone/Salt Resistant | Almond | 350199
Pentair Seal Plate Kit | Ozone/Salt Resistant | Almond | 350199
Quantity:
$146.23

N/A
Pentair IntelliFlo 50ft Communication Cable | 350122
Pentair IntelliFlo 50ft Communication Cable | 350122
Quantity:
$97.16

N/A
Pentair Seal Plate Kit with Gasket | Almond | 350202
Pentair Seal Plate Kit with Gasket | Almond | 350202
Quantity:
$149.72
