Home Pentair IntelliFlo3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3THP 208-230V | 011076 Parts

Pentair IntelliFlo3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3THP 208-230V | 011076 Parts

Back to Product

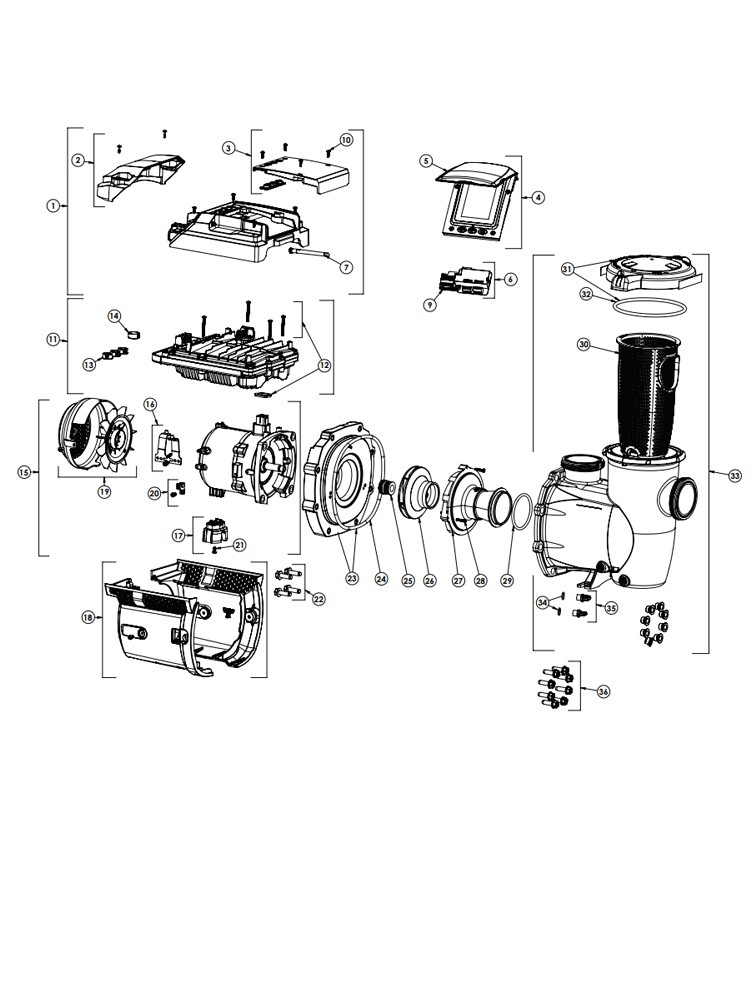

Pentair IntelliFlo3 VSF Variable Speed & Flow Pool Pump with Relay Board | 3THP 208-230V | 011076 Parts Schematic
1
Pentair Drive Cover Assembly | Almond | 356214Z
Pentair Drive Cover Assembly | Almond | 356214Z
Quantity:
$231.20

1
Pentair Drive Cover Assembly | Black | 356349Z
Pentair Drive Cover Assembly | Black | 356349Z
Quantity:
$231.20

2
Pentair Field Wiring Compartment Kit | Almond | 356096Z
Pentair Field Wiring Compartment Kit | Almond | 356096Z
Quantity:
$32.76

2
Pentair Field Wiring Compartment Kit | Black | 356337Z
Pentair Field Wiring Compartment Kit | Black | 356337Z
Quantity:
$32.76

3
Pentair Blank Controller Kit | Almond | 356101Z
Pentair Blank Controller Kit | Almond | 356101Z
Quantity:
$32.39

3
Pentair Blank Controller Kit | Black | 356338Z
Pentair Blank Controller Kit | Black | 356338Z
Quantity:
$32.39

4
Pentair Touchscreen Controller Kit | Almond | 356159Z
Pentair Touchscreen Controller Kit | Almond | 356159Z
Quantity:
$317.22

4
Pentair Touchscreen Controller Kit | Black | 356348Z
Pentair Touchscreen Controller Kit | Black | 356348Z
Quantity:
$311.04

5
Pentair Touchscreen Lid | Almond | 356099Z
Pentair Touchscreen Lid | Almond | 356099Z
Quantity:
$22.75

5
Pentair Touchscreen Lid | Black | 356339Z
Pentair Touchscreen Lid | Black | 356339Z
Quantity:
$22.75

6
Pentair IntelliFlo3 VSF Pool Pump Relay Control Board Kit | 356365Z
Pentair IntelliFlo3 VSF Pool Pump  Relay Control Board Kit | 356365Z
Quantity:
$202.16

7
Pentair IF3/IP3 VSF Pool Pump Antenna | 356226Z
Pentair IF3/IP3 VSF Pool Pump Antenna | 356226Z
Quantity:
$16.13

N/S
Pentair Plug-In Screw Terminal | 4-Position | 8023304 | 8023304Z
Pentair Plug-In Screw Terminal | 4-Position | 8023304 | 8023304Z
Quantity:
$14.26

9
Pentair Plug-In Screw Terminal | 6-Pin Connector | 8023306Z
Pentair Plug-In Screw Terminal | 6-Pin Connector | 8023306Z
Quantity:
$23.74

10
Pentair Controller Screw | #8-16 x 1/2" | 4-Pack | 356215Z
Pentair Controller Screw | #8-16 x 1/2" | 4-Pack | 356215Z
Quantity:
$8.32

11
Pentair IF3 Drive and Drive Hardware Kit | 356163Z
Pentair IF3 Drive and Drive Hardware Kit | 356163Z
Quantity:
$905.75

12
Pentair Drive Hardware Kit | 357865
Pentair Drive Hardware Kit | 357865
Quantity:
$18.02

13
Pentair 7/8" Plug Drive | 356219Z
Pentair 7/8" Plug Drive | 356219Z
Quantity:
$9.67

14
Pentair 1" Bushing Conduit | 356320Z
Pentair 1" Bushing Conduit | 356320Z
Quantity:
$9.67

15
Pentair 3HP Pool Pump Motor Kit | 356165S
Pentair 3HP Pool Pump Motor Kit | 356165S
Quantity:
$625.78

16
Pentair Motor Bracket Kit | 356167Z
Pentair Motor Bracket Kit | 356167Z
Quantity:
$15.03

17
Pentair Motor Foot Kit | Almond | 356149Z
Pentair Motor Foot Kit | Almond | 356149Z
Quantity:
$11.70

17
Pentair Motor Foot Kit | Black | 356341Z
Pentair Motor Foot Kit | Black | 356341Z
Quantity:
$11.70

18
Pentair Motor Shroud Kit | Almond | 357869
Pentair Motor Shroud Kit | Almond | 357869
Quantity:
$60.41

18
Pentair Motor Shroud Kit | Black | 357870
Pentair Motor Shroud Kit | Black | 357870
Quantity:
$60.41

19
Pentair Motor Fan Kit | 357866Z
Pentair Motor Fan Kit | 357866Z
Quantity:
$43.06

20
Pentair Bonding Lug Kit | 356166Z
Pentair Bonding Lug Kit | 356166Z
Quantity:
$13.33

21
Pentair Motor Foot Screw | 356221Z
Pentair Motor Foot Screw | 356221Z
Quantity:
$6.15

22
Pentair Motor Bolts | 4-Pack | 074165Z
Pentair Motor Bolts | 4-Pack | 074165Z
Quantity:
$16.82

23
Pentair Seal Plate Kit | Almond | 356091Z
Pentair Seal Plate Kit | Almond | 356091Z
Quantity:
$89.28

23
Pentair Seal Plate Kit | Black | 356345Z
Pentair Seal Plate Kit | Black | 356345Z
Quantity:
$89.28

24
Pentair Seal Plate O-Ring | 356173Z
Pentair Seal Plate O-Ring | 356173Z
Quantity:
$12.02

25
Pentair 5/8" Shaft Seal | 356210S
Pentair 5/8" Shaft Seal | 356210S
Quantity:
$34.85

26
Pentair Impeller for 3HP Pool Pumps | 356177Z
Pentair Impeller for 3HP Pool Pumps | 356177Z
Quantity:
$50.74

27
Pentair Diffuser for 3HP IntelliFlo3 Pool Pump | 356156Z
Pentair Diffuser for 3HP IntelliFlo3 Pool Pump | 356156Z
Quantity:
$50.74

28
Pentair Diffuser Screw Kit | 3-Pack | 356213Z
Pentair Diffuser Screw Kit | 3-Pack | 356213Z
Quantity:
$11.35

29
Pentair Diffuser O-Ring for IntelliFlo3 Pool Pump | 356190Z
Pentair Diffuser O-Ring for IntelliFlo3 Pool Pump | 356190Z
Quantity:
$7.71

30
Pentair XF Replacement Strainer Basket | 400007Z
Pentair XF Replacement Strainer Basket | 400007Z
Quantity:
$37.14

31
Pentair Lid Assembly | Almond | 356172Z
Pentair Lid Assembly | Almond | 356172Z
Quantity:
$56.39

31
Pentair Lid Assembly | Black | 356368Z
Pentair Lid Assembly | Black | 356368Z
Quantity:
$56.39

32
Pentair Lid O-Ring for IntelliFlo3 Pool Pump | 356189Z
Pentair Lid O-Ring for IntelliFlo3 Pool Pump | 356189Z
Quantity:
$22.89

33
Pentair IntelliFlo3 3HP Strainer Pot Kit | Almond | 356175Z
Pentair IntelliFlo3 3HP Strainer Pot Kit | Almond | 356175Z
Quantity:
$225.33

33
Pentair IntelliFlo3 3HP Strainer Pot Kit | Black | 356347Z
Pentair IntelliFlo3 3HP Strainer Pot Kit | Black | 356347Z
Quantity:
$225.33

34
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

35
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$9.93

36
Pentair Seal Plate to Strainer Pot Bolts | 3/8-16 x 1.2 | 074164Z
Pentair Seal Plate to Strainer Pot Bolts | 3/8-16 x 1.2 | 074164Z
Quantity:
$24.93

N/S
Pentair 3HP Seal Set | 357872
Pentair 3HP Seal Set | 357872
Quantity:
$28.70

N/S
Pentair 3HP Pump Union Kit | 2.5" | 410028
Pentair 3HP Pump Union Kit | 2.5" | 410028
Quantity:
$53.78

N/S
Pentair 3'' Union Kit for 3 HP Pumps | 410029
Pentair 3'' Union Kit for 3 HP Pumps | 410029
Quantity:
$59.79

N/S
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Quantity:
$17.15

N/S
Pentair Riser Plate Kit | Thin A/B Base | 357833Z
Pentair Riser Plate Kit | Thin A/B Base | 357833Z
Quantity:
$40.04
