Home Pool Swimming Pool & Spa Pumps Pentair Pool & Spa Pumps Pentair WhisperFloXF High Performance Pool Pump with Super-Duty TEFC Motor | 208-230V 2HP | XFET-8 | 022032 Parts
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

Pentair WhisperFloXF High Performance Pool Pump with Super-Duty TEFC Motor | 208-230V 2HP | XFET-8 | 022032 Parts

Back to Product

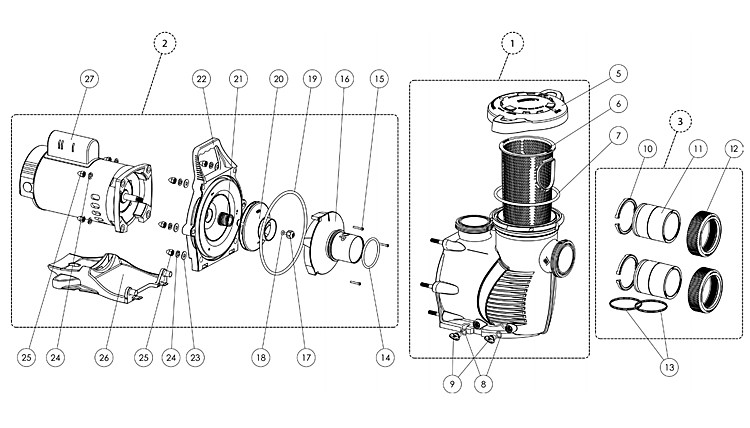

Pentair WhisperFloXF High Performance Pool Pump with Super-Duty TEFC Motor | 208-230V 2HP | XFET-8 | 022032 Parts Schematic
27
Pentair Replacement Single Speed TEFC Super-Duty Motor | 56 Frame | 208/230V 2HP | Almond | 354815S
Pentair Replacement Single Speed TEFC Super-Duty Motor | 56 Frame | 208/230V 2HP | Almond | 354815S
Quantity:
$385.41

1
Pentair XF Series Pump Wet End Assembly | 400000
Pentair XF Series Pump Wet End Assembly | 400000
Quantity:
$172.40

2
Pentair WhisperFloXF Power End | TEFC | 208/230V 2HP | 400632Z
Pentair WhisperFloXF Power End | TEFC | 208/230V 2HP | 400632Z
Quantity:
$815.44

3
Pentair WhisperFlo XF Union Kit | 410020
Pentair WhisperFlo XF Union Kit | 410020
Quantity:
$111.13

5
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Quantity:
$45.99

6
Pentair XF Replacement Basket | 400007Z
Pentair XF Replacement Basket | 400007Z
Quantity:
$32.62

7
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$20.20

8
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$3.51

9
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$8.78

10
Pentair XF Series C-Clip Locking Ring | 2.5" | 410001
Pentair XF Series C-Clip Locking Ring | 2.5" | 410001
Quantity:
$9.26

11
Pentair Union Adapter without Tap | 2.5" | 410002
Pentair Union Adapter without Tap | 2.5" | 410002
Quantity:
$31.29

12
Pentair XF Series Union Nut | 2.5" | 411000
Pentair XF Series Union Nut | 2.5" | 411000
Quantity:
$12.90

13
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Quantity:
$14.05

14
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Quantity:
$5.69

15
Pentair WhisperFlo XF Diffuser Screw | 353323
Pentair WhisperFlo XF Diffuser Screw | 353323
Quantity:
$2.20

17
Pentair Impeller Lock Screw | 37337-6080
Pentair Impeller Lock Screw | 37337-6080
Quantity:
$20.76

18
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
Pentair Impeller Reverse Screw O-Ring Metric Gasket Ring | 33455-1047
Quantity:
$11.35

19
Pentair Whisperflo XF Seal Plate O-Ring | 351446
Pentair Whisperflo XF Seal Plate O-Ring | 351446
Quantity:
$10.25

21
Pentair Shaft Seal Viton Max-E-Pro PS-3868 | 37400-0028S
Pentair Shaft Seal Viton Max-E-Pro PS-3868 | 37400-0028S
A Direct Replacement is available for this item.
This item has been discontinued.

21
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Quantity:
$27.56

22
Pentair WhisperFloXF Seal Plate | 400002
Pentair WhisperFloXF Seal Plate | 400002
Quantity:
$121.88

23
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$4.17

24
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$5.89

25
Pentair Acorn Nut for XF Series | 071413
Pentair Acorn Nut for XF Series | 071413
Quantity:
$3.80

26
Pentair WhisperFloXF Series Motor Base | 400004Z
Pentair WhisperFloXF Series Motor Base | 400004Z
Quantity:
$30.38

N/A
Pentair Challenger Riser Plate | 400012
Pentair Challenger Riser Plate | 400012
Quantity:
$68.48

N/A
Pentair Hardware and O-Rings Kit | 400030Z
Pentair Hardware and O-Rings Kit | 400030Z
Quantity:
$50.45

N/A
Pentair XF Series Seal Plate Kit with Mechanical Seal | 400031Z
Pentair XF Series Seal Plate Kit with Mechanical Seal | 400031Z
Quantity:
$149.53
