Home Pentair IntelliFloXF Variable Speed and Flow Pump 3HP Max | 022056 Parts

Pentair IntelliFloXF Variable Speed and Flow Pump 3HP Max | 022056 Parts

Back to Product

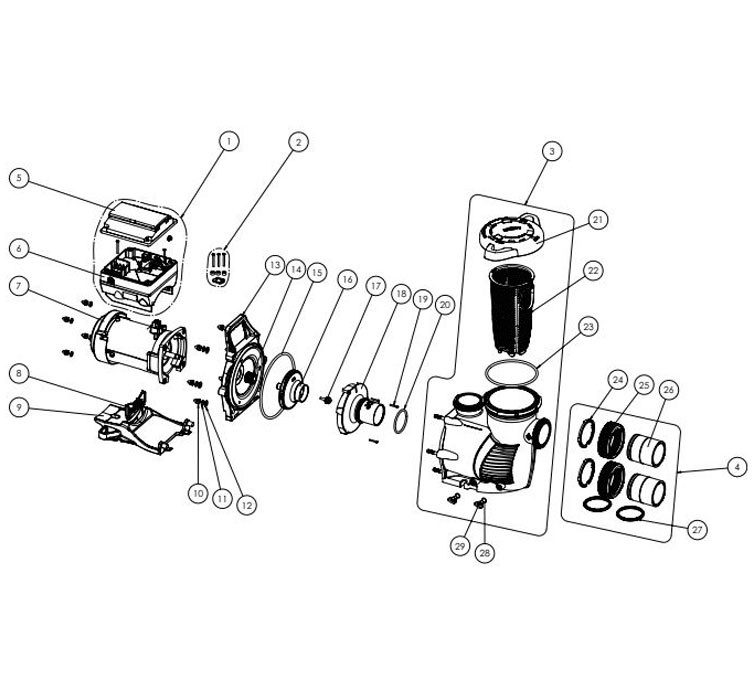

Pentair IntelliFloXF Variable Speed and Flow Pump 3HP Max | 022056 Parts Schematic
1
Pentair IntelliFlo FX VSF Drive Assembly with Keypad | 357521Z
Pentair IntelliFlo FX VSF Drive Assembly with Keypad | 357521Z
Quantity:
$1,120.11

2
Pentair IntelliFlo Drive Hardware Kit | 355685
Pentair IntelliFlo Drive Hardware Kit | 355685
Quantity:
$102.46

3
Pentair XF Series Pump Wet End Assembly | 400000
Pentair XF Series Pump Wet End Assembly | 400000
Quantity:
$258.28

4
Pentair WhisperFlo XF Union Kit | 410020
Pentair WhisperFlo XF Union Kit | 410020
Quantity:
$133.69

5
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Pentair IntelliFlo Keypad Assembly Kit with Keypad Cover | Almond | 357527Z
Quantity:
$291.45

6
Pentair IntelliFloXF VSF Drive | 356896Z
Pentair IntelliFloXF VSF Drive | 356896Z
Quantity:
$935.29

7
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Pentair IntelliFlo Motor 3.2kW 10 Pole | Almond | 350305S
Quantity:
$680.67

8
Pentair WhisperFlo Foot Insert | Almond | 070929
Pentair WhisperFlo Foot Insert | Almond | 070929
Quantity:
$24.83

9
Pentair WhisperFloXF Series Motor Base | 400004Z
Pentair WhisperFloXF Series Motor Base | 400004Z
Quantity:
$37.09

10
Pentair Acorn Nut for XF Series | 071413
Pentair Acorn Nut for XF Series | 071413
Quantity:
$4.02

11
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$5.69

12
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$10.99

13
Pentair WhisperFloXF Seal Plate | 400002
Pentair WhisperFloXF Seal Plate | 400002
Quantity:
$142.37

14
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Pentair Shaft Seal Dyna-Jet TPE Series | 17351-0101S
Quantity:
$31.72

15
Pentair Whisperflo XF Seal Plate O-Ring | 351446
Pentair Whisperflo XF Seal Plate O-Ring | 351446
Quantity:
$10.08

16
Pentair Impeller Pump Assembly XF Series | 400015 | 400015Z
Pentair Impeller Pump Assembly XF Series | 400015 | 400015Z
Quantity:
$119.96

17
Pentair Impeller Lock Screw | 37337-6080
Pentair Impeller Lock Screw | 37337-6080
Quantity:
$24.85

18
Pentair Diffuser Pump XF | 400010
Pentair Diffuser Pump XF | 400010
Quantity:
$87.07

19
Pentair WhisperFlo XF Diffuser Screw | 353323
Pentair WhisperFlo XF Diffuser Screw | 353323
Quantity:
$2.68

20
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Pentair Diffuser O-Ring Whisp - Intelli XF | 350336
Quantity:
$6.92

21
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Pentair XF Series Pump Lid Locking Ring Assembly | 400006
Quantity:
$54.20

22
Pentair XF Replacement Strainer Basket | 400007Z
Pentair XF Replacement Strainer Basket | 400007Z
Quantity:
$37.14

23
Pentair Trap Cover O-Ring | 35505-1440
Pentair Trap Cover O-Ring | 35505-1440
Quantity:
$23.92

24
Pentair XF Series C-Clip Locking Ring | 2.5" | 410001
Pentair XF Series C-Clip Locking Ring | 2.5" | 410001
Quantity:
$11.30

25
Pentair XF Series Union Nut | 2.5" | 411000
Pentair XF Series Union Nut | 2.5" | 411000
Quantity:
$15.76

26
Pentair Union Adapter without Tap | 2.5" | 410002
Pentair Union Adapter without Tap | 2.5" | 410002
Quantity:
$36.25

27
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Pentair Union Diamond Seal Kit | 2.5" | 2 Pieces | 410016Z
Quantity:
$17.15

28
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

29
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Pentair Drain Plug Knob Thumb Twist | 3/8" | 2 Required | Almond | P19656 071131 071131Z
Quantity:
$9.93

N/A
Pentair Keypad Relocation Kit | Almond | 356904Z
Pentair Keypad Relocation Kit | Almond | 356904Z
Quantity:
$72.23

N/A
Pentair XF Series Seal Plate Kit with Mechanical Seal | 400031Z
Pentair XF Series Seal Plate Kit with Mechanical Seal | 400031Z
Quantity:
$172.22

N/A
Pentair IntelliFlo 50ft Communication Cable | 350122
Pentair IntelliFlo 50ft Communication Cable | 350122
Quantity:
$121.21
