Pentair Quad DE High Flow Filter | 60 Sq Ft | 120 GPM | 188592 Parts

Back to Product

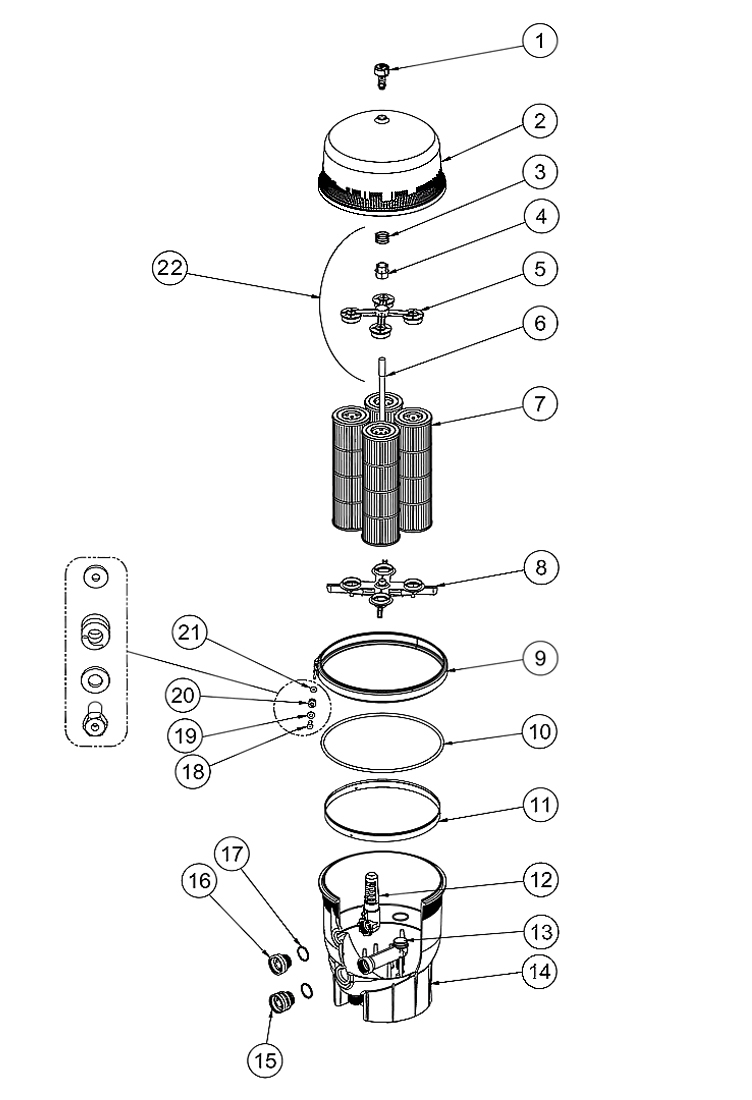

Pentair Quad DE High Flow Filter | 60 Sq Ft | 120 GPM | 188592 Parts Schematic
1
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Pentair High Flow Air Relief Assembly | Twist Type | Includes Pressure Gauge | 98209800
Quantity:
$31.92

2
Pentair Filter Lid Assembly Clean & Clear Plus 320 & Quad 60 D.E. | 170024
Pentair Filter Lid Assembly Clean & Clear Plus 320 & Quad 60 D.E. | 170024
Quantity:
$195.01

3
Pentair Top Manifold Compression Spring | Clean & Clear Plus and Quad DE Filters | 178616
Pentair Top Manifold Compression Spring | Clean & Clear Plus and Quad DE Filters | 178616
Quantity:
$10.00

4
Pentair Manifold Top with Short Adapter | 170026
Pentair Manifold Top with Short Adapter | 170026
Quantity:
$58.94

5
Pentair Manifold Top with Short Adapter | 170026
Pentair Manifold Top with Short Adapter | 170026
Quantity:
$58.94

6
Pentair Air Bleed Tube Assembly 320 Sq Ft | 170029
Pentair Air Bleed Tube Assembly 320 Sq Ft | 170029
Quantity:
$37.77

7
Replacement Cartridges for Pentair Quad DE 60 Sq. Ft. Filter (4 Required) | 6-1/4", 20-3/4" | 178654 C-6960 XLS-621 PC-1961 FC-1961
Replacement Cartridges for Pentair Quad DE 60 Sq. Ft. Filter (4 Required) |  6-1/4", 20-3/4" | 178654 C-6960 XLS-621 PC-1961 FC-1961
Quantity:
$57.89

7
Pentair Quad DE 60 Replacement Cartridge | 15 Sq Ft | 178654
Pentair Quad DE 60 Replacement Cartridge | 15 Sq Ft | 178654
Quantity:
$76.68

8
Pentair Bottom Manifold Assembly | 170059
Pentair Bottom Manifold Assembly | 170059
Quantity:
$119.84

9
Pentair Filter Clamp Kit Kit with Tension Control Assembly | FNS Plus and Clean & Clear Plus Filter Tanks | 190003
Pentair Filter Clamp Kit Kit with Tension Control Assembly | FNS Plus and Clean & Clear Plus Filter Tanks | 190003
Quantity:
$211.21

10
Pentair OEM Tank O-Ring | FNS Plus and Clean & Clear Plus Filters | 39010200 39010200Z
Pentair OEM Tank O-Ring | FNS Plus and Clean & Clear Plus Filters | 39010200 39010200Z
Quantity:
$38.65

10
Aladdin Filter Tank O-Ring RPM FNS+ 39010200 | O-497-9
Aladdin Filter Tank O-Ring RPM FNS+ 39010200 | O-497-9
Quantity:
$18.13

11
Pentair Back-Up Ring | Stainless Steel | 195339
Pentair Back-Up Ring | Stainless Steel | 195339
Quantity:
$54.42

12
Pentair Quad DE Filter Diverter Assembly Retro Kit | 196024S
Pentair Quad DE Filter Diverter Assembly Retro Kit | 196024S
Quantity:
$72.22

13
Pentair Quad DE Filter Pipe Outlet | 170036
Pentair Quad DE Filter Pipe Outlet | 170036
Quantity:
$72.32

14
Pentair Clean & Clear Plus Filter Bottom Assembly | Almond | 178578
Pentair Clean & Clear Plus Filter Bottom Assembly | Almond | 178578
This item is currently out of stock.

15
Pentair Bottom Bulkhead | 178575
Pentair Bottom Bulkhead | 178575
Quantity:
$24.14

16
Pentair Bulkhead Fitting Buttress Threaded 2-3/8" FNS Plus - Clean & Clear Plus Tanks | 194801
Pentair Bulkhead Fitting Buttress Threaded 2-3/8" FNS Plus - Clean & Clear Plus Tanks | 194801
Quantity:
$64.81

17
Pentair O-Ring Bulhead Upper/Lower | 86006900
Pentair O-Ring Bulhead Upper/Lower | 86006900
Quantity:
$9.70

18
Pentair Brass Nut Machined | 194997
Pentair Brass Nut Machined | 194997
Quantity:
$15.09

19
Pentair Large Inner Diameter Washer | 195611
Pentair Large Inner Diameter Washer | 195611
Quantity:
$11.26

20
Pentair Quick Release Spring | 195612
Pentair Quick Release Spring | 195612
Quantity:
$24.06

21
Pentair Small Diameter Washer | Stainless Steel | 195610
Pentair Small Diameter Washer | Stainless Steel | 195610
Quantity:
$10.50

22
Pentair Manifold Top with Short Adapter | 170026
Pentair Manifold Top with Short Adapter | 170026
Quantity:
$58.94
