Home Pentair EQ750 Series Premium Efficiency Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 7.5HP | 340032 Parts

Pentair EQ750 Series Premium Efficiency Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 7.5HP | 340032 Parts

Back to Product

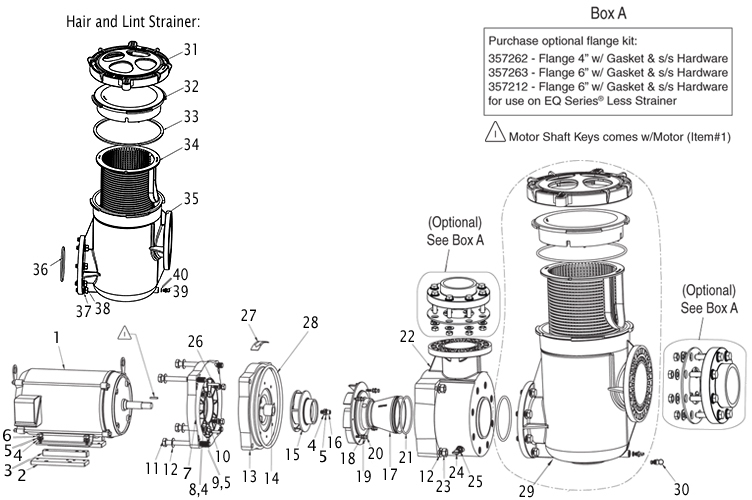

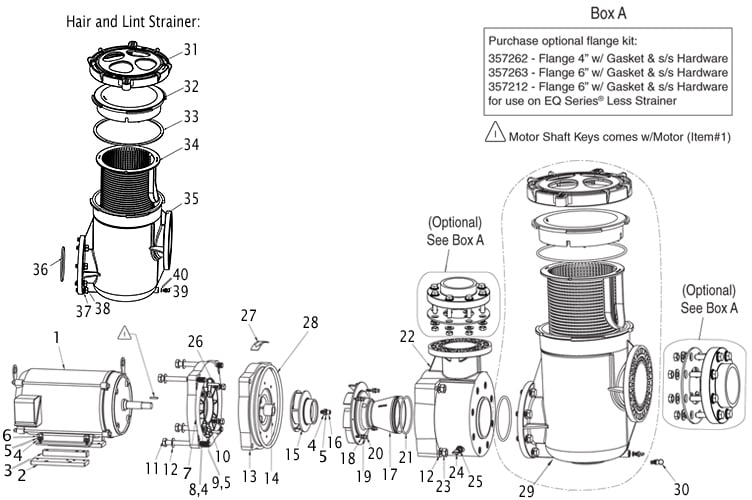

Pentair EQ750 Series Premium Efficiency Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 7.5HP | 340032 Parts Schematic
1
U.S. Motors Pentair EQ Pump Series Replacement Pool Motors | Single Phase | 230V 7.5HP | EEQ750
U.S. Motors Pentair EQ Pump Series Replacement Pool Motors | Single Phase | 230V 7.5HP | EEQ750
Quantity:
$1,757.57

2
Pentair EQ Series Motor Support | 356713
Pentair EQ Series Motor Support | 356713
Quantity:
$74.65

3
Pentair EQ Series Motor Foot Adapter | 356712
Pentair EQ Series Motor Foot Adapter | 356712
Quantity:
$49.62

4
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Pentair SS Flat Washer | 3/8" ID x 7/8"OD | 072184
Quantity:
$11.43

5
Pentair Ultra-Flow Split Lock Washer 3/8" | Stainless Steel | 98220600
Pentair Ultra-Flow Split Lock Washer 3/8" | Stainless Steel | 98220600
Quantity:
$4.21

6
Pentair Hex Head Cap Screw | 3/8" -16 x 1-1/2" | Stainless Steel | 350073
Pentair Hex Head Cap Screw | 3/8" -16 x 1-1/2" | Stainless Steel | 350073
Quantity:
$11.56

7
Pentair EQ Series Motor Adapter | 356790
Pentair EQ Series Motor Adapter | 356790
Quantity:
$748.01

8
Pentair EQ Series Washer 1/2" x 0.125" Thickness | Stainless Steel | 075842
Pentair EQ Series Washer 1/2" x 0.125" Thickness | Stainless Steel | 075842
Quantity:
$3.18

9
Pentair Washer Split Lock 1/2" x 0.125 Thickness | Stainless Steel | 4 Pack | 350063
Pentair Washer Split Lock 1/2" x 0.125 Thickness | Stainless Steel | 4 Pack | 350063
Quantity:
$15.09

10
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.82

11
Pentair Hex Head Cap Screw | 5/8-11X6.5" | Stainless Steel | 4 Pack | 356710
Pentair Hex Head Cap Screw | 5/8-11X6.5" | Stainless Steel | 4 Pack | 356710
Quantity:
$131.35

12
Pentair EQ Series Flat Washer | 11/16"X5/16" | Stainless Steel | 8 Pack | 356789
Pentair EQ Series Flat Washer | 11/16"X5/16" | Stainless Steel | 8 Pack | 356789
Quantity:
$4.21

13
Pentair EQ Series Seal Plate | 356795
Pentair EQ Series Seal Plate | 356795
Quantity:
$956.40

14
Pentair EQ Series Service Seal Set | 071725S
Pentair EQ Series Service Seal Set | 071725S
Quantity:
$50.50

15
Pentair EQ750 Pump Impeller Assembly | Plastic | 7.5HP | 350029
Pentair EQ750 Pump Impeller Assembly | Plastic | 7.5HP | 350029
Quantity:
$426.02

16
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Quantity:
$10.75

17
Pentair EQ750 Diffuser Assembly | Plastic | 7.5HP | 350033
Pentair EQ750 Diffuser Assembly | Plastic | 7.5HP | 350033
Quantity:
$686.07

18
Pentair Washer 1/4" | Stainless Steel | 51008500
Pentair Washer 1/4" | Stainless Steel | 51008500
Quantity:
$8.35

19
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Pentair Lock Washer 1/4" | Two Required | Stainless Steel | 072172 P34876
Quantity:
$1.21

20
Pentair EQ Series Hex Head Cap Screw 1/4"-20 x 1-1/2" | Stainless Steel | 350035
Pentair EQ Series Hex Head Cap Screw 1/4"-20 x 1-1/2" | Stainless Steel | 350035
Quantity:
$11.04

21
Pentair EQ Series Diffuser O-Ring | 350037
Pentair EQ Series Diffuser O-Ring | 350037
Quantity:
$24.64

22
Pentair EQ Series Pump Housing | 356755
Pentair EQ Series Pump Housing | 356755
Quantity:
$2,771.59

23
Pentair EQ Series Hex Head Nut 5/8-11 | Brass | 5 Pack | 356776
Pentair EQ Series Hex Head Nut 5/8-11 | Brass | 5 Pack | 356776
Quantity:
$23.74

24
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

25
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

26
Pentair EQ Series Pin Dowel | 5/16" x 1.75" | Stainless Steel | 350060
Pentair EQ Series Pin Dowel | 5/16" x 1.75" | Stainless Steel | 350060
Quantity:
$32.13

28
Pentair EQ Series Seal Plate O-Ring | 356780
Pentair EQ Series Seal Plate O-Ring | 356780
Quantity:
$55.63

29.
Pentair EQ Series Hair & Lint Strainer Pot Complete | 6"x 6" | 340013
Pentair EQ Series Hair & Lint Strainer Pot Complete | 6"x 6" | 340013
Quantity:
$1,279.59

30
Pentair EQ Pressure Relief Valve | NPT | 1/4" | 350087
Pentair EQ Pressure Relief Valve | NPT | 1/4" | 350087
Quantity:
$68.72

31
Pentair EQ Series Basket Strainer | Plastic | 357184
Pentair EQ Series Basket Strainer | Plastic | 357184
Quantity:
$201.29

32
Pentair EQ Series Pump Lid O-Ring | 350166
Pentair EQ Series Pump Lid O-Ring | 350166
Quantity:
$28.57

33
Pentair EQ Series Strainer Lid | Clear | 356750
Pentair EQ Series Strainer Lid | Clear | 356750
Quantity:
$422.60

34
Pentair EQ Series Pump Lock Ring and Gasket | 350171
Pentair EQ Series Pump Lock Ring and Gasket | 350171
Quantity:
$576.57

35
Pentair EQ Series Strainer Pot | 356725
Pentair EQ Series Strainer Pot | 356725
Quantity:
$939.79

36
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

38
Pentair Hex Head Cap Screw 5/8-11" x 1.75" | Stainless Steel | 356788
Pentair Hex Head Cap Screw 5/8-11" x 1.75" | Stainless Steel | 356788
Quantity:
$16.50

N/A
Pentair EQ Seal Plate Alignment Tool | 351137S
Pentair EQ Seal Plate Alignment Tool | 351137S
Quantity:
$228.55
