Pentair Waterfall Energy Efficient Pool Pump with Strainer 115-230V AFP-150 | 340352 Parts

Back to Product

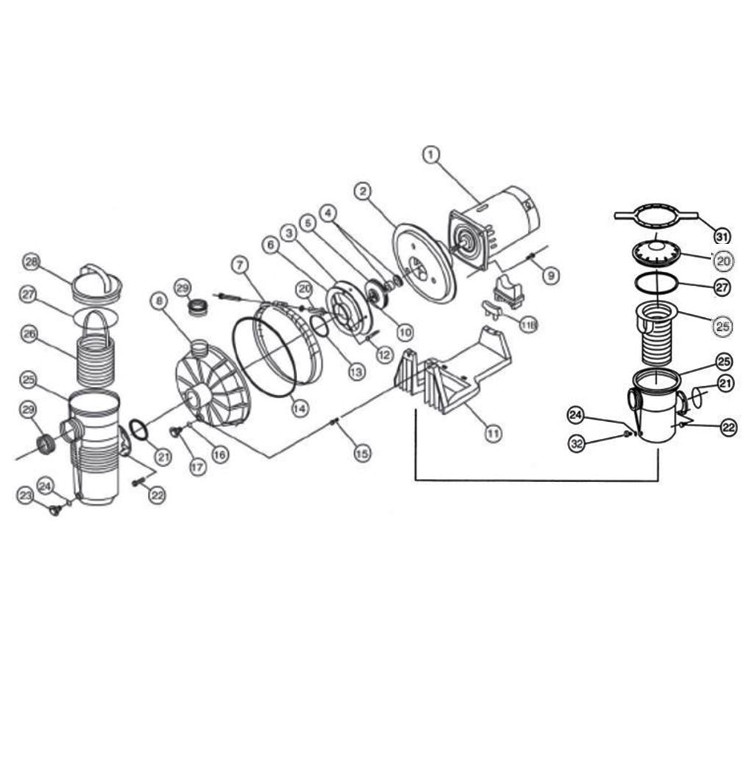

Pentair Waterfall Energy Efficient Pool Pump with Strainer 115-230V AFP-150 | 340352 Parts Schematic
1
Pentair Waterfall Motor | AF180/AFP150 | 355222S
Pentair Waterfall Motor | AF180/AFP150 | 355222S
Quantity:
$327.59

2
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Quantity:
$96.65

3
Pentair Challenger Mounting Plate | 5HP | 355495
Pentair Challenger Mounting Plate | 5HP | 355495
Quantity:
$18.41

4
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$33.11

5
Pentair Impeller | AFP150/180 | 355221
Pentair Impeller | AFP150/180 | 355221
Quantity:
$53.10

6
Pentair Diffuser | AFP150/180 | 355140
Pentair Diffuser | AFP150/180 | 355140
Quantity:
$49.97

7
Pentair Band Clamp Assembly Complete | 355320
Pentair Band Clamp Assembly Complete | 355320
Quantity:
$83.33

8
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Quantity:
$181.56

9
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.82

10
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.21

11
Pentair Challenger Pump Base | 355305
Pentair Challenger Pump Base | 355305
Quantity:
$49.05

12
Pentair WaterFall Hex Screw Washer | Stainless Steel | #8-32 x 1.5 Inch | 355141
Pentair WaterFall Hex Screw Washer | Stainless Steel | #8-32 x 1.5 Inch | 355141
Quantity:
$11.38

13
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Quantity:
$6.72

14
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Quantity:
$22.22

15
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Quantity:
$4.21

16
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

17
Pentair Drain Plug 1/4" NPT | 154699
Pentair Drain Plug 1/4" NPT | 154699
A Replacement is available for this item.
This item has been discontinued.

20
Pentair Clamp Knob with Captured T-Bolt | 175025
Pentair Clamp Knob with Captured T-Bolt | 175025
Quantity:
$37.93

21
Pentair Strainer Pot Flange O-Ring | 355330
Pentair Strainer Pot Flange O-Ring | 355330
Quantity:
$4.80

22
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Quantity:
$5.84

23
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

24
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

25
Pentair Challenger Strainer Pot | 355300
Pentair Challenger Strainer Pot | 355300
This item is currently out of stock.

26
Pentair Challenger Strainer Basket | Stainless Steel | 355441
Pentair Challenger Strainer Basket | Stainless Steel | 355441
Quantity:
$169.58

27
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

28
Pentair Challenger Strainer Cover | Clear | 355301
Pentair Challenger Strainer Cover | Clear | 355301
Quantity:
$62.87

29
Pentair Impeller Nose Bushing | AFP150/180 | 355142
Pentair Impeller Nose Bushing | AFP150/180 | 355142
Quantity:
$67.25

11B
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Quantity:
$18.44

N/S
Pentair Strainer Pot Lid | Chemical Resistant | 5HP | Black | 355914
Pentair Strainer Pot Lid | Chemical Resistant | 5HP | Black | 355914
This item has been discontinued.
