Home Pentair Challenger 1.5HP High Flow Pool Pump Up-Rated 115V 230V | CFII-N1-1F 343234 Parts

Pentair Challenger 1.5HP High Flow Pool Pump Up-Rated 115V 230V | CFII-N1-1F 343234 Parts

Back to Product

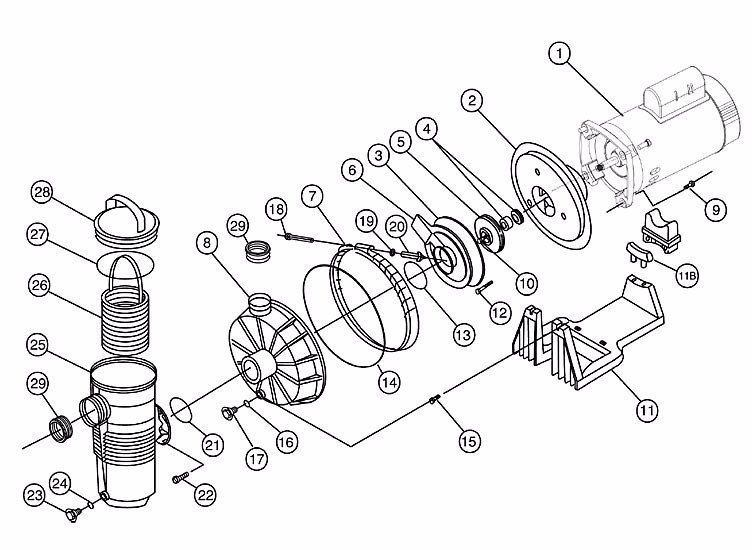

Pentair Challenger 1.5HP High Flow Pool Pump Up-Rated  115V 230V | CFII-N1-1F 343234 Parts Schematic
1
Pentair Square Flange Motor | 1-1/2HP Full Rated/2HP UP-Rated Standard Efficiency | 115/208-230V | 355025S
Pentair Square Flange Motor | 1-1/2HP Full Rated/2HP UP-Rated Standard Efficiency | 115/208-230V | 355025S
Quantity:
$438.00

2
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Quantity:
$96.29

3
Pentair Mounting Plate | 355078
Pentair Mounting Plate | 355078
Quantity:
$19.83

4
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$32.97

5
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Pentair SuperFlo Max Impeller | 1.5HP Up Rated | 355074
Quantity:
$55.04

6
Pentair Challenger Diffuser | 1HP Full Rate 2HP Up Rated | 355077
Pentair Challenger Diffuser | 1HP Full Rate 2HP Up Rated | 355077
Quantity:
$42.05

7
Pentair Band Clamp Assembly Complete | 355320
Pentair Band Clamp Assembly Complete | 355320
Quantity:
$83.02

8
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Quantity:
$138.49

9
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.75

10
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.16

11
Pentair Challenger Pump Base | 355305
Pentair Challenger Pump Base | 355305
Quantity:
$48.86

11B
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Quantity:
$18.33

12
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

13
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Quantity:
$10.79

14
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Quantity:
$22.11

15
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Quantity:
$4.16

16
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

17
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$17.99

18
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Quantity:
$15.72

19
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$4.82

20
Pentair Band Clamp Assembly Knob | 174882
Pentair Band Clamp Assembly Knob | 174882
Quantity:
$37.77

20
Pentair Clamp Knob with Captured T-Bolt | 175025
Pentair Clamp Knob with Captured T-Bolt | 175025
Quantity:
$37.77

21
Pentair Strainer Pot Flange O-Ring | 355330
Pentair Strainer Pot Flange O-Ring | 355330
Quantity:
$4.74

22
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Quantity:
$5.77

23
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$17.99

24
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$13.99

25
Pentair Challenger Strainer Pot | 355300
Pentair Challenger Strainer Pot | 355300
This item is currently out of stock.

26
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Quantity:
$33.70

27
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.00

28
Pentair Challenger Strainer Cover | Clear | 355301
Pentair Challenger Strainer Cover | Clear | 355301
Quantity:
$62.63

29
Pentair Bushing Reducer | 2 Pack | 552377
Pentair Bushing Reducer | 2 Pack | 552377
Quantity:
$19.04

31
Pentair Closure Lid Wrench | Plastic | 8.5" | 154527
Pentair Closure Lid Wrench | Plastic | 8.5" | 154527
Quantity:
$33.74

N/A
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Quantity:
$31.61

N/A
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Quantity:
$103.86

N/A
Pentair Challenger Power End | 1-1/2HP 115/208-230V | 355520
Pentair Challenger Power End | 1-1/2HP 115/208-230V | 355520
Quantity:
$975.15

N/A
Pentair Challenger Power End Assembly | CF-N2-2F 2 1/2A 2 SP ST | 355987
Pentair Challenger Power End Assembly | CF-N2-2F 2 1/2A 2 SP ST | 355987
Quantity:
$1,285.61

N/A
Pentair Pot Assembly Basket with Plastic Bracket | 0.5HP - 2.5HP | Black | 359507
Pentair Pot Assembly Basket with Plastic Bracket | 0.5HP - 2.5HP | Black | 359507
Quantity:
$224.39
