Pentair C Series 7-1/2HP Standard Efficiency Single-Phase Commercial Bronze Pump High Head | 200/208V 60 Hertz | CH-75 | 348005 Parts

Back to Product

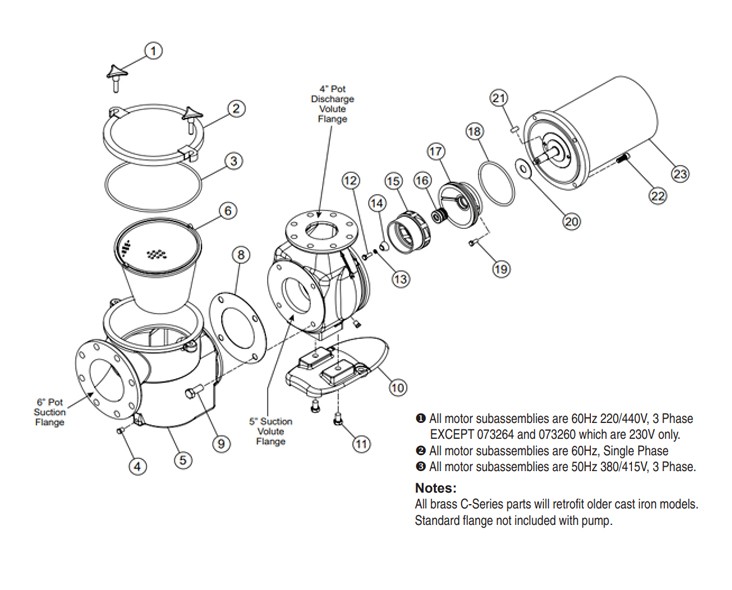

Pentair C Series 7-1/2HP Standard Efficiency Single-Phase Commercial Bronze Pump High Head | 200/208V 60 Hertz | CH-75 | 348005 Parts Schematic
1
Pentair C Series Hand Nut Assembly | Bronze | 075280
Pentair C Series Hand Nut Assembly | Bronze | 075280
Quantity:
$122.96

2
Pentair C Series Trap Cover | Bronze | 075275
Pentair C Series Trap Cover | Bronze | 075275
Quantity:
$764.30

3
Pentair C Series O-Ring | 071433 P24150
Pentair C Series O-Ring | 071433 P24150
Quantity:
$14.61

4
Pentair C Series Drain Plug | 1/4" | Bronze | 071551
Pentair C Series Drain Plug | 1/4" | Bronze | 071551
Quantity:
$4.39

5
Pentair C Series Strainer | Bronze | 075271Z
Pentair C Series Strainer | Bronze | 075271Z
Quantity:
$2,985.98

6
Pentair C Series Basket | 10.75" x 7" | Stainless Steel | 072795 S01200
Pentair C Series Basket | 10.75" x 7" | Stainless Steel | 072795 S01200
Quantity:
$369.93

7
Pentair C Series Volute | Bronze | 075273Z
Pentair C Series Volute | Bronze | 075273Z
Quantity:
$3,127.08

9
Pentair Hex Head Screw | 3/4-10 x 1-3/4" | Brass P-12 | 071683 P27400
Pentair Hex Head Screw | 3/4-10 x 1-3/4" | Brass P-12 | 071683 P27400
Quantity:
$37.12

10
Pentair C Series Coated Foot | Brass | 075287
Pentair C Series Coated Foot | Brass | 075287
Quantity:
$84.03

11
Pentair C Series Hex Head Foot Screw | 5/8-11 x 1" | Stainless Steel | 071688
Pentair C Series Hex Head Foot Screw | 5/8-11 x 1" | Stainless Steel | 071688
Quantity:
$4.90

12
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Pentair EQ Series Impeller Lock Screw C-35 | Stainless Steel | 071037 P13550
Quantity:
$9.93

13
Pentair C Series Pump Impeller Washer | 071048 P19025
Pentair C Series Pump Impeller Washer | 071048 P19025
Quantity:
$18.45

14
Pentair Rubber Impeller Screw Washer | 075713
Pentair Rubber Impeller Screw Washer | 075713
Quantity:
$4.78

15
Pentair C Series Pump Impeller | 1PH or 3PH Medium Head | 7.5HP | 070227
Pentair C Series Pump Impeller | 1PH or 3PH Medium Head | 7.5HP | 070227
Quantity:
$1,161.37

16
Pentair EQ Series Service Seal Set | 071725S
Pentair EQ Series Service Seal Set | 071725S
Quantity:
$46.74

17
Pentair Seal Flange Adapter | Brass | 070906 P09800
Pentair Seal Flange Adapter | Brass | 070906 P09800
Quantity:
$521.82

18
Pentair C Series Flange O-Ring | 071423 P24050
Pentair C Series Flange O-Ring | 071423 P24050
Quantity:
$7.57

19
Pentair Hex Head Cap Screw | 3/8-16 x 3/4" | 071681
Pentair Hex Head Cap Screw | 3/8-16 x 3/4" | 071681
Quantity:
$3.97

20
Pentair C Series Water Slinger | 072185 P35100
Pentair C Series Water Slinger | 072185 P35100
Quantity:
$13.81

21
Pentair C Series Square Key Impeller | 3/16" | 071046 P16550
Pentair C Series Square Key Impeller | 3/16" | 071046 P16550
Quantity:
$29.95

22
Pentair EQ & C Series Hex Head Bolt | Stainless Steel | 071687
Pentair EQ & C Series Hex Head Bolt | Stainless Steel | 071687
Quantity:
$11.99

23
Pentair C Series Motor | Single Phase | 230V 7.5HP | 357204S
Pentair C Series Motor | Single Phase | 230V 7.5HP | 357204S
Quantity:
$2,752.45
