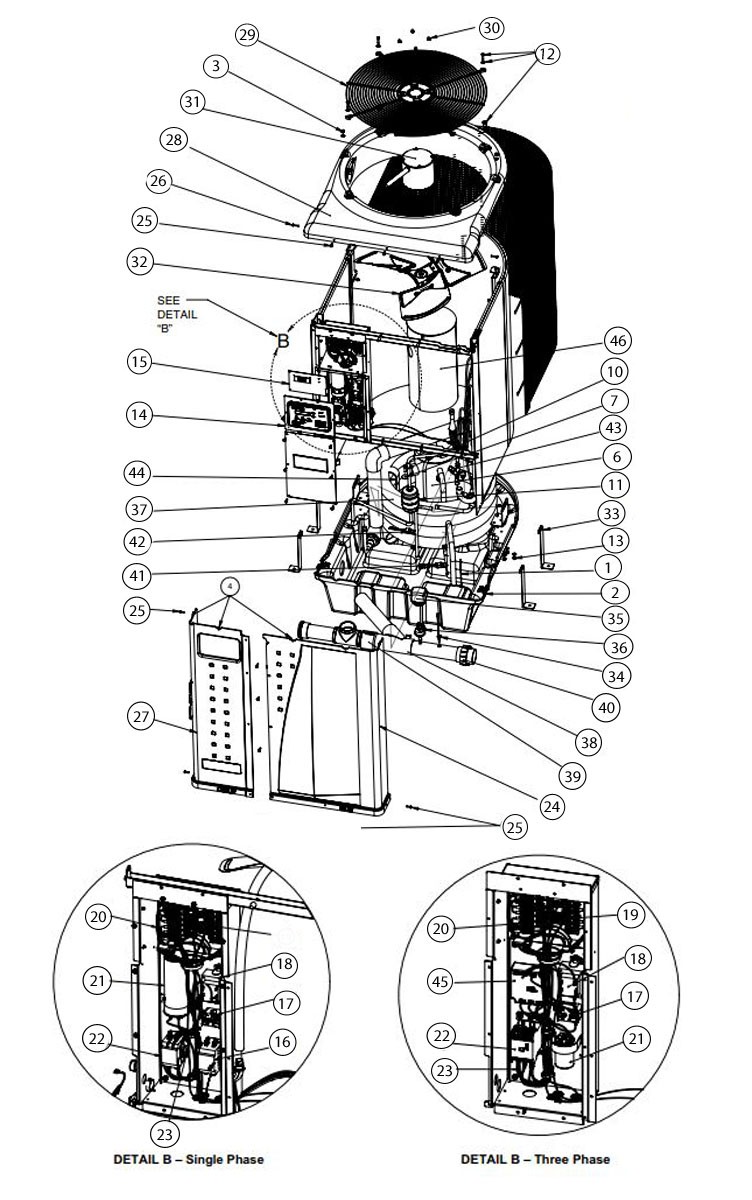

Pentair UltraTemp Heat Pump 90K BTU | Titanium Heat Exchanger | Digital Controls | Almond | 460931 Parts Schematic
1
Pentair Probe Thermistor Defrost Sensor | 473665
Pentair Probe Thermistor Defrost Sensor | 473665
Quantity:
$45.31

2
Pentair Nut J Clip | 470284
Pentair Nut J Clip | 470284
Quantity:
$6.67

3
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Quantity:
$5.19

4
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
This item has been discontinued.

5
Pentair Compressor Wire Harness | 60HZ | 473732
Pentair Compressor Wire Harness | 60HZ | 473732
Quantity:
$95.04

6
Pentair Copeland ZP61K5EPFV Compressor Scroll | 474241Z
Pentair Copeland ZP61K5EPFV Compressor Scroll | 474241Z
Quantity:
$1,655.88

7
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Quantity:
$4.42

8
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Quantity:
$32.42

9
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Quantity:
$9.18

10
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Quantity:
$5.56

11
Pentair 1/2" Dryer Line Single Direction | 473121
Pentair 1/2" Dryer Line Single Direction | 473121
Quantity:
$92.72

12
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Quantity:
$12.93

13
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.62

14/15
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Quantity:
$349.88

16
Pentair Autoheat Pump Contactor | 473603
Pentair Autoheat Pump Contactor | 473603
Quantity:
$58.92

17
Pentair Relay Fan Evaporator | 473150
Pentair Relay Fan Evaporator | 473150
Quantity:
$103.89

18
Pentair Ultra Therm Transformer | 473155
Pentair Ultra Therm Transformer | 473155
Quantity:
$156.16

19
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Quantity:
$81.75

20
Pentair Wire Harness Term Block Sensor | 473315
Pentair Wire Harness Term Block Sensor | 473315
Quantity:
$98.71

21
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Quantity:
$86.75

22
Pentair UltraTemp 3PH Contactor | 473778
Pentair UltraTemp 3PH Contactor | 473778
Quantity:
$371.90

22
Pentair Heat Pump Compressor Contactor | 473149
Pentair Heat Pump Compressor Contactor | 473149
Quantity:
$155.33

23
Pentair Main Wire Harness | 475112
Pentair Main Wire Harness | 475112
Quantity:
$79.15

23
Pentair Main Wiring Harness | 473423
Pentair Main Wiring Harness | 473423
Quantity:
$73.00

24
Pentair 24" Front Right Panel | Almond | 473412
Pentair 24" Front Right Panel | Almond | 473412
Quantity:
$178.17

24
Pentair 36" Front Right Panel | Almond | 473742
Pentair 36" Front Right Panel | Almond | 473742
Quantity:
$209.95

25
Pentair Screw Pan Head Phillips Almond #10 x .75" for UltraTemp Heat Pump | 470159
Pentair Screw Pan Head Phillips Almond  #10 x .75" for UltraTemp Heat Pump | 470159
Quantity:
$4.48

26
Pentair Screw Pan Head Phillips Almond #10 x 1" for UltraTemp Heat Pump | 470161
Pentair Screw Pan Head Phillips Almond  #10 x 1" for UltraTemp Heat Pump | 470161
Quantity:
$4.48

27
Pentair 24" Front Left Panel with Decal | 474203
Pentair 24" Front Left Panel with Decal | 474203
Quantity:
$147.15

27
Pentair 36" Front Left Panel Assembly with Decal | Almond | 473755
Pentair 36" Front Left Panel Assembly with Decal | Almond | 473755
Quantity:
$222.09

28
Pentair Ultratem Heat Pump Top | Almond | 473773
Pentair Ultratem Heat Pump Top | Almond | 473773
Quantity:
$507.58

29
Pentair UltraTemp 24" Fan Guard Grill | 473786
Pentair UltraTemp 24" Fan Guard Grill | 473786
Quantity:
$137.11

30
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Quantity:
$12.22

31
Pentair UltraTemp Fan Motor with Acorn Nut Kit | 473785
Pentair UltraTemp Fan Motor with Acorn Nut Kit | 473785
Quantity:
$319.63

32
Pentair Fan Blade | 60 Hz | 473783
Pentair Fan Blade | 60 Hz | 473783
Quantity:
$162.70

33
Pentair Tie Down Bracket | 470137
Pentair Tie Down Bracket | 470137
Quantity:
$26.06

34
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Quantity:
$53.98

35
Pentair Water Pressure Switch Boot Cover | 473606
Pentair Water Pressure Switch Boot Cover | 473606
Quantity:
$10.94

36
Pentair Minimax Pressure Switch | 473605
Pentair Minimax Pressure Switch | 473605
Quantity:
$74.37

37
Pentair 10 Ton Titanium Heat Exchanger | 472736
Pentair 10 Ton Titanium Heat Exchanger | 472736
Quantity:
$2,355.15

37
Pentair Heat Exchanger | 475193Z
Pentair Heat Exchanger | 475193Z
Quantity:
$1,807.52

38
Pentair Manifold Water Bypass Kit | 473774Z
Pentair Manifold Water Bypass Kit | 473774Z
Quantity:
$401.56

38
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Quantity:
$299.40

39
Pentair Water Bypass #12 Check Valve | R172305
Pentair Water Bypass #12 Check Valve | R172305
Quantity:
$134.02

40
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Quantity:
$32.81

41
Pentair Low Pressure Switch | 473656
Pentair Low Pressure Switch | 473656
Quantity:
$107.18

42
Pentair 600/380 High Pressure Switch | 473744
Pentair 600/380 High Pressure Switch | 473744
Quantity:
$91.46

43
Pentair Thermostatic Expansion Valve | 474242
Pentair Thermostatic Expansion Valve | 474242
Quantity:
$205.02

44
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Quantity:
$32.86

44
Pentair Water Coil Tie Down Strap | 473657
Pentair Water Coil Tie Down Strap | 473657
Quantity:
$32.15

44
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Quantity:
$32.86

44
Pentair Strap Titanium Water Coil Long | 473772
Pentair Strap Titanium Water Coil Long | 473772
Quantity:
$50.00

45
Pentair Compressor Blanket | 475231Z
Pentair Compressor Blanket | 475231Z
This item is no longer available.

N/A
Pentair Clip Retention Compressor Power | 474237
Pentair Clip Retention Compressor Power | 474237
Quantity:
$14.14

N/A
Pentair UltraTemp Coil Guard | 473054Z
Pentair UltraTemp Coil Guard | 473054Z
Quantity:
$165.64

N/A
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Quantity:
$11.41

N/A
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Quantity:
$5.36

N/A
Pentair UltraTemp Union & Tie Down | 461030Z
Pentair UltraTemp Union & Tie Down | 461030Z
Quantity:
$72.38

N/A
Pentair Turbotec Water Coil Repair Kit | 474270Z
Pentair Turbotec Water Coil Repair Kit | 474270Z
Quantity:
$93.83

N/A
Pentair CoreMax Valve Core | 472409
