Home Pentair UltraTemp Heat Pump 75K BTU | Titanium Heat Exchanger | Digital Controls | Black | 460960 Parts

Pentair UltraTemp Heat Pump 75K BTU | Titanium Heat Exchanger | Digital Controls | Black | 460960 Parts

Back to Product

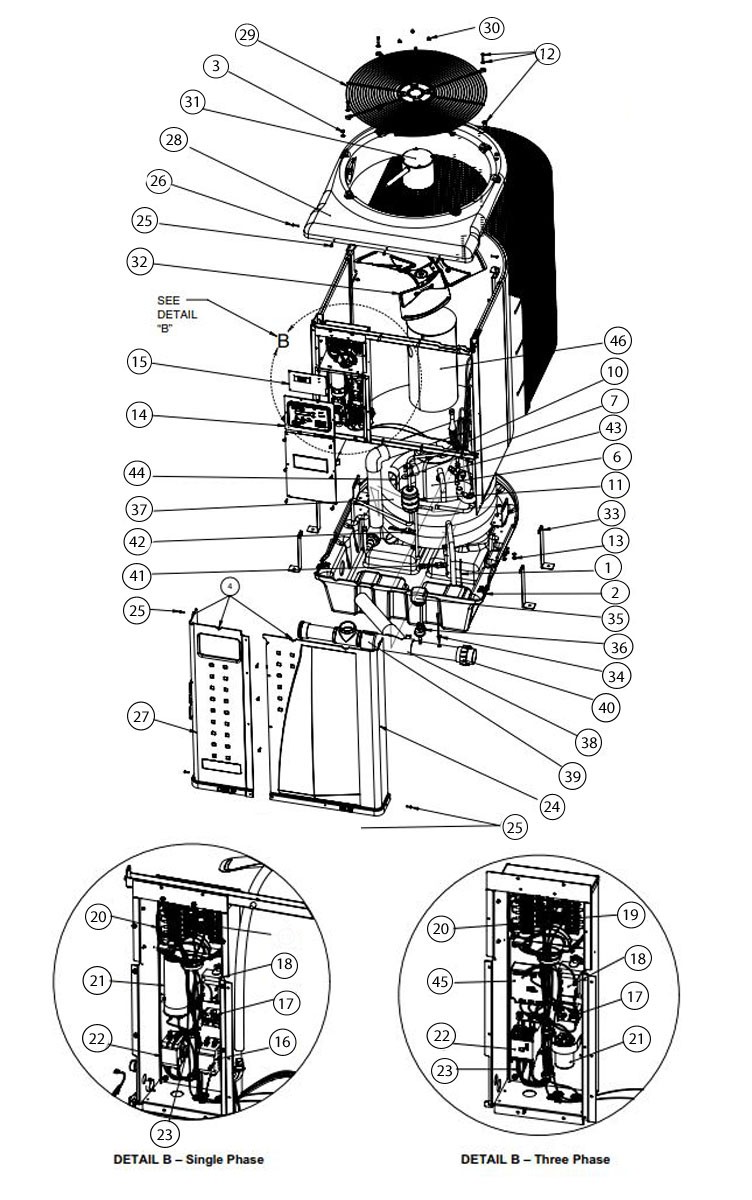

Pentair UltraTemp Heat Pump 75K BTU | Titanium Heat Exchanger | Digital Controls | Black | 460960 Parts Schematic
1
Pentair Probe Thermistor Defrost Sensor | 473665
Pentair Probe Thermistor Defrost Sensor | 473665
Quantity:
$43.66

2
Pentair Nut J Clip | 470284
Pentair Nut J Clip | 470284
Quantity:
$6.41

3
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Quantity:
$4.27

4
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
Quantity:
$6.04

5
Pentair Compressor Wire Harness | 60HZ | 473732
Pentair Compressor Wire Harness | 60HZ | 473732
Quantity:
$91.34

6
Pentair Copeland ZP49K5EPFV Compressor Scroll Assembly | 474291Z
Pentair Copeland ZP49K5EPFV Compressor Scroll Assembly | 474291Z
Quantity:
$1,399.99

7
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Quantity:
$4.27

8
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Quantity:
$32.92

9
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Quantity:
$8.82

10
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Quantity:
$4.16

11
Pentair 1/2" Dryer Line Single Direction | 473121
Pentair 1/2" Dryer Line Single Direction | 473121
Quantity:
$89.35

12
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Quantity:
$12.46

13
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.41

14/15
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Quantity:
$349.88

16
Pentair Autoheat Pump Contactor | 473603
Pentair Autoheat Pump Contactor | 473603
Quantity:
$56.79

17
Pentair Relay Fan Evaporator | 473150
Pentair Relay Fan Evaporator | 473150
Quantity:
$103.51

18
Pentair Ultra Therm Transformer | 473155
Pentair Ultra Therm Transformer | 473155
Quantity:
$150.50

19
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Quantity:
$78.79

20
Pentair Wire Harness Term Block Sensor | 473315
Pentair Wire Harness Term Block Sensor | 473315
Quantity:
$95.14

21
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Quantity:
$83.62

22
Pentair Heat Pump Compressor Contactor | 473149
Pentair Heat Pump Compressor Contactor | 473149
Quantity:
$149.77

22
Pentair UltraTemp 3PH Contactor | 473778
Pentair UltraTemp 3PH Contactor | 473778
Quantity:
$353.72

23
Pentair Main Wiring Harness | 473423
Pentair Main Wiring Harness | 473423
Quantity:
$73.00

23
Pentair Main Wire Harness | 475112
Pentair Main Wire Harness | 475112
Quantity:
$76.28

24
Pentair 24" Front Right Panel | Almond | 473412
Pentair 24" Front Right Panel | Almond | 473412
Quantity:
$171.26

24
Pentair 36" Panel Front Right | Black | 474194
Pentair 36" Panel Front Right | Black | 474194
Quantity:
$199.13

25
Pentair Screw 10 x 75" Panhead Phillips 18-8 | Stainless Steel | Black | 474198
Pentair Screw 10 x 75" Panhead Phillips 18-8 | Stainless Steel | Black | 474198
Quantity:
$4.27

26
Pentair Screw 10 x 1" Button Head Torx Zinc Plated | Black | 474197
Pentair Screw 10 x 1" Button Head Torx Zinc Plated | Black | 474197
Quantity:
$4.27

27
Pentair 24" Front Left Panel with Decal | 474203
Pentair 24" Front Left Panel with Decal | 474203
Quantity:
$147.15

28
Pentair Heat Pump Top | Black | 474193
Pentair Heat Pump Top | Black | 474193
Quantity:
$342.20

29
Pentair UltraTemp 24" Fan Guard Grill | 473786
Pentair UltraTemp 24" Fan Guard Grill | 473786
Quantity:
$136.64

30
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Quantity:
$10.07

31
Pentair UltraTemp Fan Motor with Acorn Nut Kit | 473785
Pentair UltraTemp Fan Motor with Acorn Nut Kit | 473785
Quantity:
$317.97

32
Pentair Fan Blade | 60 Hz | 473783
Pentair Fan Blade | 60 Hz | 473783
Quantity:
$156.39

33
Pentair Tie Down Bracket | 470137
Pentair Tie Down Bracket | 470137
Quantity:
$25.14

34
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Quantity:
$51.87

35
Pentair Water Pressure Switch Boot Cover | 473606
Pentair Water Pressure Switch Boot Cover | 473606
Quantity:
$10.52

36
Pentair Minimax Pressure Switch | 473605
Pentair Minimax Pressure Switch | 473605
Quantity:
$72.56

37
Pentair Titanium Heat Exchanger | 472737
Pentair Titanium Heat Exchanger | 472737
Quantity:
$2,069.49

38
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Quantity:
$292.41

38
Pentair Manifold Water Bypass Kit | 473774Z
Pentair Manifold Water Bypass Kit | 473774Z
Quantity:
$387.00

39
Pentair Water Bypass #12 Check Valve | R172305
Pentair Water Bypass #12 Check Valve | R172305
Quantity:
$50.12

40
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Quantity:
$33.43

41
Pentair Low Pressure Switch | 473656
Pentair Low Pressure Switch | 473656
Quantity:
$106.79

42
Pentair 600/380 High Pressure Switch | 473744
Pentair 600/380 High Pressure Switch | 473744
Quantity:
$88.14

43
Pentair Thermostatic Expansion Valve | 474242
Pentair Thermostatic Expansion Valve | 474242
Quantity:
$205.02

44
Pentair Water Coil Tie Down Strap | 473657
Pentair Water Coil Tie Down Strap | 473657
Quantity:
$32.09

44
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Quantity:
$33.37

44
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Quantity:
$33.37

44
Pentair Strap Titanium Water Coil Long | 473772
Pentair Strap Titanium Water Coil Long | 473772
Quantity:
$49.93

44
Pentair Titanium Extra Tall Water Coil Tie Down Strap | 473789
Pentair Titanium Extra Tall Water Coil Tie Down Strap | 473789
Quantity:
$73.89

45
Pentair Compressor Blanket | 475231Z
Pentair Compressor Blanket | 475231Z
Call us to order.

N/A
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Quantity:
$4.57

N/A
Pentair Turbotec Water Coil Repair Kit | 474270Z
Pentair Turbotec Water Coil Repair Kit | 474270Z
Quantity:
$90.19

N/A
Pentair Clip Retention Compressor Power | 474237
Pentair Clip Retention Compressor Power | 474237
Quantity:
$13.57

N/A
Pentair UltraTemp Union & Tie Down | 461030Z
Pentair UltraTemp Union & Tie Down | 461030Z
Quantity:
$69.75

N/A
Pentair UltraTemp Coil Guard | 473054Z
Pentair UltraTemp Coil Guard | 473054Z
Quantity:
$159.20

N/A
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Quantity:
$11.02

N/A
Pentair CoreMax Valve Core | 472409
Pentair CoreMax Valve Core | 472409
Call us to order.
