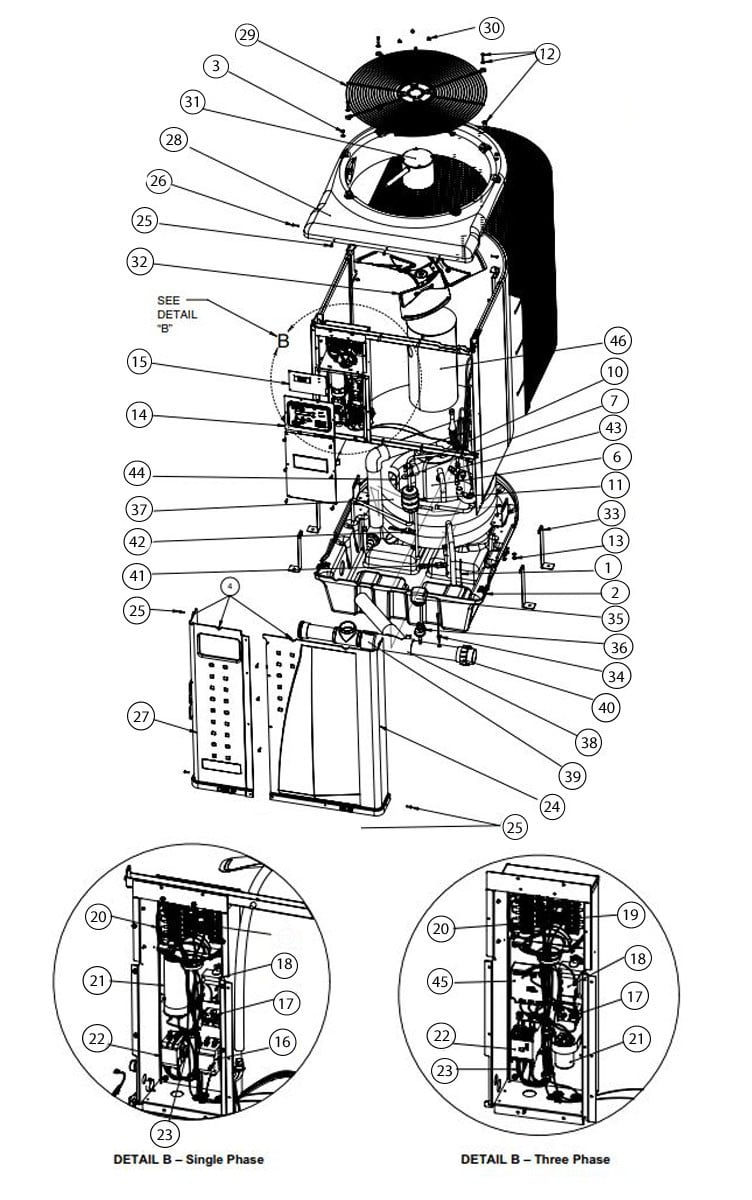

Pentair UltraTemp Heat Pump 140K BTU | Titanium Heat Exchanger | Digital Controls | Black | 460964 Parts Schematic
1
Pentair Probe Thermistor Defrost Sensor | 473665
Pentair Probe Thermistor Defrost Sensor | 473665
Quantity:
$43.83

2
Pentair Nut J Clip | 470284
Pentair Nut J Clip | 470284
Quantity:
$6.46

3
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Pentair Acorn Nut 1/4"-20 | Stainless Steel | 473285
Quantity:
$4.85

4
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
Pentair U-Clip Nut D06437-10 Tinnerman | 470281
This item has been discontinued.

5
Pentair Compressor Wire Harness | 60HZ | 473732
Pentair Compressor Wire Harness | 60HZ | 473732
Quantity:
$91.71

6
Pentair Copeland Compressor Scroll Assembly | 473734Z
Pentair Copeland Compressor Scroll Assembly | 473734Z
Quantity:
$2,039.58

7
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Pentair Fender Washer | 5/16" ID x 1 1/4" OD | 473295
Quantity:
$4.32

8
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Pentair Compressor Isolation Kit with Grommet and Spacer | 473736
Quantity:
$33.09

9
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Pentair Bolt 5/16 - 18 x 2" | Stainless Steel | 473745
Quantity:
$8.89

10
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Pentair Bolt 5/16 - 18 x 1" Hex Head 18 - 8 | Stainless Steel | 98219800
Quantity:
$4.61

11
Pentair 1/2" Dryer Line Single Direction | 473121
Pentair 1/2" Dryer Line Single Direction | 473121
Quantity:
$89.68

12
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Pentair Fan Guard Fastener Kit for Thermalflo Models | 470441
Quantity:
$12.54

13
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Pentair Nut 1/4"-20 Hex Head Stainless Steel | 2 Required | 071406
Quantity:
$4.47

14/15
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Pentair Heat Pump Autoset Board Bezel Assembly | 472734
Quantity:
$349.88

16
Pentair Autoheat Pump Contactor | 473603
Pentair Autoheat Pump Contactor | 473603
Quantity:
$57.01

17
Pentair Relay Fan Evaporator | 473150
Pentair Relay Fan Evaporator | 473150
Quantity:
$103.89

18
Pentair Ultra Therm Transformer | 473155
Pentair Ultra Therm Transformer | 473155
Quantity:
$156.16

19
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Pentair Wire Harness Fan Terminal Block Compressor | 473422
Quantity:
$79.08

20
Pentair Wire Harness Term Block Sensor | 473315
Pentair Wire Harness Term Block Sensor | 473315
Quantity:
$95.49

21
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Pentair Capacitor Replacement with Bracket for UltraTemp Heat Pump | 440V | 473731 | 473731Z
Quantity:
$83.93

22
Pentair Heat Pump Compressor Contactor | 473149
Pentair Heat Pump Compressor Contactor | 473149
Quantity:
$150.47

22
Pentair UltraTemp 3PH Contactor | 473778
Pentair UltraTemp 3PH Contactor | 473778
Quantity:
$354.80

23
Pentair Main Wire Harness | 475112
Pentair Main Wire Harness | 475112
Quantity:
$76.57

23
Pentair Main Wiring Harness | 473423
Pentair Main Wiring Harness | 473423
Quantity:
$73.00

24
Pentair 36" Panel Front Right | Black | 474194
Pentair 36" Panel Front Right | Black | 474194
Quantity:
$199.13

25
Pentair Screw 10 x 75" Panhead Phillips 18-8 | Stainless Steel | Black | 474198
Pentair Screw 10 x 75" Panhead Phillips 18-8 | Stainless Steel | Black | 474198
Quantity:
$4.85

26
Pentair Screw 10 x 1" Button Head Torx Zinc Plated | Black | 474197
Pentair Screw 10 x 1" Button Head Torx Zinc Plated | Black | 474197
Quantity:
$4.32

27
Pentair 36" Panel Assembly with Decal | Left | Black | 474196
Pentair 36" Panel Assembly with Decal | Left | Black | 474196
Quantity:
$214.56

27
Pentair 24" Front Panel with Decal | Left | Black | 474267
Pentair 24" Front Panel with Decal | Left | Black | 474267
Quantity:
$199.60

28
Pentair Heat Pump Top | Black | 474193
Pentair Heat Pump Top | Black | 474193
Quantity:
$342.97

29
Pentair UltraTemp 24" Fan Guard Grill | 473786
Pentair UltraTemp 24" Fan Guard Grill | 473786
Quantity:
$137.11

30
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Pentair Acorn Nut 10-32 Tall | Stainless Steel | 470439
Quantity:
$10.85

31
Pentair UltraTemp 140/140HC Fan Motor with Acorn Nut Kit | 474323Z
Pentair UltraTemp 140/140HC Fan Motor with Acorn Nut Kit | 474323Z
Quantity:
$323.64

32
Pentair Blade Fan 1100RPM | 474322
Pentair Blade Fan 1100RPM | 474322
Quantity:
$190.63

33
Pentair Tie Down Bracket | 470137
Pentair Tie Down Bracket | 470137
Quantity:
$25.26

34
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Pentair Thermistor Probe | MiniMax NT, UltraTemp, ThermalFlo | 471566
Quantity:
$52.09

35
Pentair Water Pressure Switch Boot Cover | 473606
Pentair Water Pressure Switch Boot Cover | 473606
Quantity:
$10.59

36
Pentair Minimax Pressure Switch | 473605
Pentair Minimax Pressure Switch | 473605
Quantity:
$72.56

37
Pentair Heat Exchanger | 475193Z
Pentair Heat Exchanger | 475193Z
Quantity:
$1,807.52

37
Pentair Titanium Heat Exchanger for UltraTemp Heat Pump | 473992
Pentair Titanium Heat Exchanger for UltraTemp Heat Pump | 473992
Quantity:
$2,356.18

38
Pentair Manifold Water Bypass Kit | 473774Z
Pentair Manifold Water Bypass Kit | 473774Z
Quantity:
$387.87

38
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Pentair UltraTemp Water Manifold Bypass Kit | 475176Z
Quantity:
$293.10

39
Pentair Water Bypass #12 Check Valve | R172305
Pentair Water Bypass #12 Check Valve | R172305
Quantity:
$73.89

40
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Pentair Heat Pump Union 2"x2" PVC | UltraTemp, ThermalFlo, MiniMax Plus HP | 473381
Quantity:
$33.58

41
Pentair Low Pressure Switch | 473656
Pentair Low Pressure Switch | 473656
Quantity:
$107.18

42
Pentair 600/380 High Pressure Switch | 473744
Pentair 600/380 High Pressure Switch | 473744
Quantity:
$88.47

43
Pentair UltraTemp 140/140HC Thermostatic Expansion Valve | 474327
Pentair UltraTemp 140/140HC Thermostatic Expansion Valve | 474327
Quantity:
$212.67

44
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Pentair UltraTemp Titanium Water Coil Tie Down | Right Side | 475194
Quantity:
$33.54

44
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Pentair UltraTemp Titanium Water Coil Tie Down | Left Side | 475195
Quantity:
$33.54

44
Pentair Strap Titanium Water Coil Long | 473772
Pentair Strap Titanium Water Coil Long | 473772
Quantity:
$49.94

44
Pentair Titanium Extra Tall Water Coil Tie Down Strap | 473789
Pentair Titanium Extra Tall Water Coil Tie Down Strap | 473789
Quantity:
$73.91

45
Pentair Compressor Blanket | 475231Z
Pentair Compressor Blanket | 475231Z
This item is no longer available.

N/A
Pentair Clip Retention Compressor Power | 474237
Pentair Clip Retention Compressor Power | 474237
Quantity:
$13.67

N/A
Pentair UltraTemp 3" x 10" Vertical Receiver | 474321
Pentair UltraTemp 3" x 10" Vertical Receiver | 474321
Quantity:
$202.12

N/A
Pentair UltraTemp Coil Guard | 473054Z
Pentair UltraTemp Coil Guard | 473054Z
Quantity:
$159.78

N/A
Pentair Turbotec Water Coil Repair Kit | 474270Z
Pentair Turbotec Water Coil Repair Kit | 474270Z
Quantity:
$90.55

N/A
Pentair UltraTemp Union & Tie Down | 461030Z
Pentair UltraTemp Union & Tie Down | 461030Z
Quantity:
$70.02

N/A
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Pentair UltraTemp .5"MPT X 5/8" MPT Male Hose Barb | 475232
Quantity:
$11.10

N/A
Pentair CoreMax Valve Core | 472409
Pentair CoreMax Valve Core | 472409
This item is no longer available.

N/A
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Pentair Purex 1.5" Union O-Ring #2-228 | 071426
Quantity:
$4.78
