Pentair 1HP DYNA-MAX PLM300/MPEA6E-147L SYS | 300 Sq Ft | 77706-4100 Parts

Back to Product

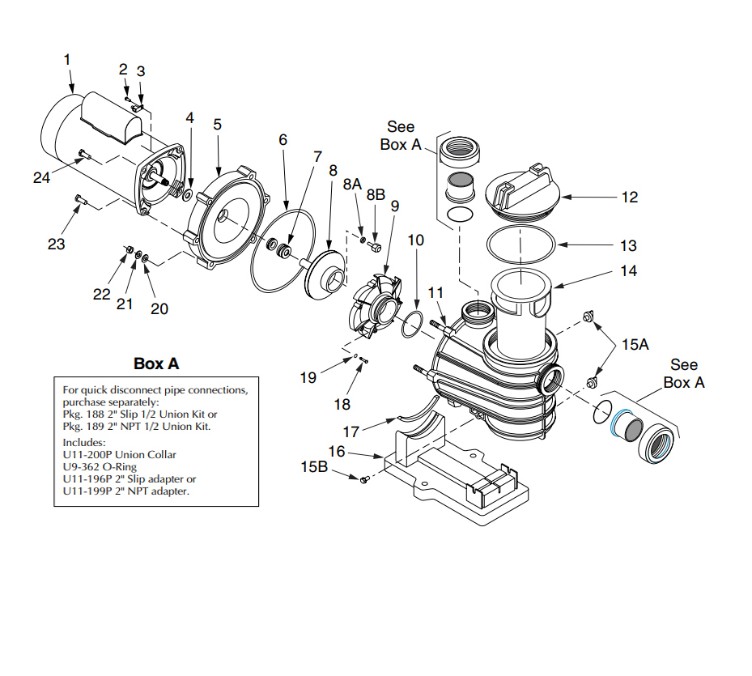

Pentair 1HP DYNA-MAX PLM300/MPEA6E-147L SYS | 300 Sq Ft | 77706-4100 Parts Schematic
1
Pentair 1HP UR EE 115/230V SQFL Motor | AE100ELL
Pentair 1HP UR EE 115/230V SQFL Motor | AE100ELL
Quantity:
$331.75

2
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Pentair Stainless Steel Ground Screw | 10-32 x .5" | U30-692SS
Quantity:
$5.18

3
Pentair Grounding/Bonding Lug | U17-568
Pentair Grounding/Bonding Lug | U17-568
Quantity:
$14.72

4
PENTAIR C69-24 SLINGER, SR WATER
PENTAIR C69-24 SLINGER, SR WATER
Call us to order.

5
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Pentair DYNA-GLAS/MAX Seal Plate | C3-184P
Quantity:
$103.75

6
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Pentair Seal Plate O-Ring | U9-373 U9-373Z
Quantity:
$10.57

7
Pentair Shaft Seal Buna | 37400-0027S
Pentair Shaft Seal Buna | 37400-0027S
A Direct Replacement is available for this item.
This item has been discontinued.

8
Pentair Dyna/Max-Glas Impeller 1HP | C105-236PB
Pentair Dyna/Max-Glas Impeller 1HP | C105-236PB
Quantity:
$44.88

9
Pentair Diffuser 1HP Dyna-Glas/Max | C1-270PC
Pentair Diffuser 1HP Dyna-Glas/Max | C1-270PC
Quantity:
$33.37

10
Pentair O-Ring Diffuser | U9-374 U9-374Z
Pentair O-Ring Diffuser | U9-374 U9-374Z
Quantity:
$7.83

11
Pentair Tank and Trap Body | C76-58P
Pentair Tank and Trap Body | C76-58P
Quantity:
$192.29

12
Sta-Rite Trap Cover 6" | C3-185P
Sta-Rite Trap Cover 6" | C3-185P
Quantity:
$56.19

13
Pentair Trap Cover O-Ring | U9-375
Pentair Trap Cover O-Ring | U9-375
Quantity:
$20.12

14
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Pentair Trap Basket Max-E-Pro | C8-58P C8-58PZ
Quantity:
$14.23

15A
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Pentair Multiport Valve Drain Plug With O-Ring | U178-920P U178-920PZ
Quantity:
$5.71

15B
Pentair Mounting Screw | U30-919SS
Pentair Mounting Screw | U30-919SS
Quantity:
$8.19

16
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Pentair Dyna-Jet Plastic Pump Base Plastic | C4-77P
Quantity:
$45.74

17
Pentair Plastic Base Motor Pad | C35-45
Pentair Plastic Base Motor Pad | C35-45
Quantity:
$8.47

18
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Pentair 8-32 x 7/8" Stainless Steel Round Head Diffuser Capscrew | U30-542SS
Quantity:
$5.55

19
Pentair #8 External Tooth Lock Washer | U43-21SS
Pentair #8 External Tooth Lock Washer | U43-21SS
Quantity:
$4.38

20
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Pentair Flat Washer | 3/8" NOM 1 X .438 X .083S | U43-62SS
Quantity:
$4.38

21
Pentair Split Lock Washer | 3/8" | U43-12SS
Pentair Split Lock Washer | 3/8" | U43-12SS
Quantity:
$6.07

22
Pentair 3/8-16 Hex Head Nut | U36-38SS
Pentair 3/8-16 Hex Head Nut | U36-38SS
Quantity:
$6.22

24
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.22

NA
Pentair Install/Warning/Caution Tag | C63-12
Pentair Install/Warning/Caution Tag | C63-12
Quantity:
$9.45
