Home Pentair Challenger 1.5HP High Flow Pool Pump Full Rated 115V 230V | 342231 Parts

Pentair Challenger 1.5HP High Flow Pool Pump Full Rated 115V 230V | 342231 Parts

Back to Product

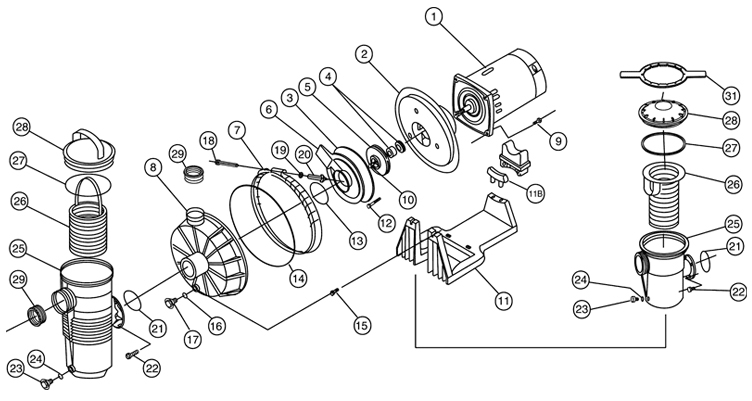

Pentair Challenger 1.5HP High Flow Pool Pump Full Rated 115V 230V | 342231 Parts Schematic
1
Pentair Square Flange Motor | 1-1/2HP Full Rated/2HP UP-Rated Standard Efficiency | 115/208-230V | 355025S
Pentair Square Flange Motor | 1-1/2HP Full Rated/2HP UP-Rated Standard Efficiency | 115/208-230V | 355025S
Quantity:
$447.22

2
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Quantity:
$99.90

3
Pentair Mounting Plate | 355078
Pentair Mounting Plate | 355078
Quantity:
$20.34

4
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$34.21

5
Pentair Super Flo/Max Impeller | 1.5HP Full Rated 2HP Up Rated | 355086
Pentair Super Flo/Max Impeller | 1.5HP Full Rated 2HP Up Rated | 355086
Quantity:
$57.07

6
Pentair Challenger Diffuser | 1HP Full Rate 2HP Up Rated | 355077
Pentair Challenger Diffuser | 1HP Full Rate 2HP Up Rated | 355077
Quantity:
$43.61

7
Pentair Band Clamp Assembly Complete | 355320
Pentair Band Clamp Assembly Complete | 355320
Quantity:
$86.17

8
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Quantity:
$140.08

9
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$9.09

10
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.33

11
Pentair Challenger Pump Base | 355305
Pentair Challenger Pump Base | 355305
Quantity:
$50.33

11B
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Quantity:
$17.46

12
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

13
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Pentair Challenger, Pinnacle, SuperFlo, SuperMax Diffuser O-ring Diffuser Seal | 355030 | 355030Z
Quantity:
$10.82

14
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Quantity:
$22.95

15
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Quantity:
$4.33

16
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

17
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

18
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Quantity:
$16.31

19
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$5.02

20
Pentair Band Clamp Assembly Knob | 174882
Pentair Band Clamp Assembly Knob | 174882
Quantity:
$39.17

20
Pentair Clamp Knob with Captured T-Bolt | 175025
Pentair Clamp Knob with Captured T-Bolt | 175025
Quantity:
$39.22

21
Pentair Strainer Pot Flange O-Ring | 355330
Pentair Strainer Pot Flange O-Ring | 355330
Quantity:
$4.95

22
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Quantity:
$5.34

24
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

25
Pentair Challenger Strainer Pot | 355300
Pentair Challenger Strainer Pot | 355300
This item is currently out of stock.

26
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Quantity:
$33.76

27
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

28
Pentair Challenger Strainer Cover | Clear | 355301
Pentair Challenger Strainer Cover | Clear | 355301
Quantity:
$64.98

29
Pentair Bushing Reducer | 2 Pack | 552377
Pentair Bushing Reducer | 2 Pack | 552377
Quantity:
$19.73

31
Pentair Closure Lid Wrench | Plastic | 8.5" | 154527
Pentair Closure Lid Wrench | Plastic | 8.5" | 154527
Quantity:
$34.97

N/A
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Quantity:
$104.24

N/A
Pentair Challenger Power End | 1-1/2HP 115/208-230V | 355520
Pentair Challenger Power End | 1-1/2HP 115/208-230V | 355520
Quantity:
$976.02
