Home Pentair Challenger 1.5HP High Pressure Energy Efficient 3-Phase Pool Pump Full Rated 208V 230V 460V | 345286 Parts

Pentair Challenger 1.5HP High Pressure Energy Efficient 3-Phase Pool Pump Full Rated 208V 230V 460V | 345286 Parts

Back to Product

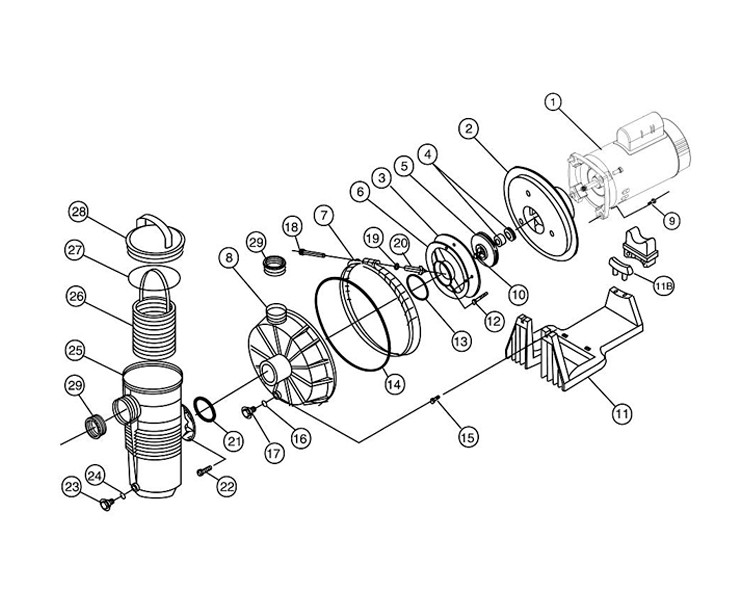

Pentair Challenger 1.5HP High Pressure Energy Efficient 3-Phase Pool Pump Full Rated 208V 230V 460V | 345286 Parts Schematic
1
Pentair Square Flange Motor | 3 Phase | 208/230V/460V 1.5 HP | 354808S
Pentair Square Flange Motor | 3 Phase | 208/230V/460V 1.5 HP | 354808S
Quantity:
$415.02

2
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Pentair Challenger Seal Plate Assembly | Black | 6 Inserts | 355004
Quantity:
$96.65

3
Pentair Challenger Mounting Plate | 0.75HP Full Rated 1HP Up Rated | 355317
Pentair Challenger Mounting Plate | 0.75HP Full Rated 1HP Up Rated | 355317
Quantity:
$19.93

4
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Pentair OEM Mechanical Pump Seal | 5/8" | Type 6 | 354545S
Quantity:
$33.11

5
Pentair Challenger Impeller | 1.5HP Full Rated 2HP Up Rated | 355315
Pentair Challenger Impeller | 1.5HP Full Rated 2HP Up Rated | 355315
Quantity:
$55.63

6
Pentair Diffuser | 1.5HP Full Rated 2HP Up Rated | 355270
Pentair Diffuser | 1.5HP Full Rated 2HP Up Rated | 355270
Quantity:
$36.64

7
Pentair Band Clamp Assembly Complete | 355320
Pentair Band Clamp Assembly Complete | 355320
Quantity:
$83.33

8
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Pentair Challenger Front Housing Assembly | Slip Suction | Black | 355468
Quantity:
$140.08

9
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Pentair Hex Head Cap Screw | 3/8-16 x 1" | Stainless Steel | U30-74SS
Quantity:
$8.82

10
Pentair Impeller Locking Screw | 355389
Pentair Impeller Locking Screw | 355389
Quantity:
$4.21

11
Pentair Challenger Pump Base | 355305
Pentair Challenger Pump Base | 355305
Quantity:
$49.05

11B
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Pentair Challenger 5-5/8" Motor Frame Adapter Fits Only Older Style Pump Bases With Rectangular Opening | 355385
Quantity:
$18.44

12
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Pentair Hex Washer Head Screw # 8-32 x 1" | 3 Required | 355334 355334Z
Quantity:
$4.20

13
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Pentair Waterfall/Challenger Pump Diffuser O-Ring | 355331 | 355331Z
Quantity:
$6.72

14
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Pentair Challenger Front Housing O-Ring | 355329 | 355329Z
Quantity:
$22.22

15
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Pentair Hexagonal Washer Head Screw 5/16-18x.5" | Stainless Steel | 355335
Quantity:
$4.21

16
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

17/23
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Pentair WhisperFlo Drain Plug | 0.25" | Black | 357161 357161Z
Quantity:
$18.64

18
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Pentair Clamp Band Carriage Bolt | 5/16" 18 x 4.25" | 152060
Quantity:
$15.81

19
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Pentair Flat Washer | 5/16"x3/4" | Stainless Steel | 072173
Quantity:
$4.88

20
Pentair Clamp Knob with Captured T-Bolt | 175025
Pentair Clamp Knob with Captured T-Bolt | 175025
Quantity:
$37.93

21
Pentair Strainer Pot Flange O-Ring | 355330
Pentair Strainer Pot Flange O-Ring | 355330
Quantity:
$4.80

22
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Pentair Hex Washer Head Screw | Stainless Steel | 354265
Quantity:
$5.84

24
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Pentair Drain Plug O-Ring | 1/16" x 1/2" ID | Buna-N 70 Shore | 192115 192115Z
Quantity:
$14.50

25
Pentair Challenger Strainer Pot | 355300
Pentair Challenger Strainer Pot | 355300
This item is currently out of stock.

26
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Pentair Challenger Plastic Strainer Basket | 355318 355318Z
Quantity:
$33.71

27
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Pentair Pump Trap Lid O-Ring After 1998 | 350013 | 350013Z
Quantity:
$16.58

28
Pentair Strainer Pot Lid | Chemical Resistant | 354112
Pentair Strainer Pot Lid | Chemical Resistant | 354112
Quantity:
$62.87

29
Pentair Bushing Reducer | 2 Pack | 552377
Pentair Bushing Reducer | 2 Pack | 552377
Quantity:
$19.14

N/A
Pentair Challenger Power End | 230V 1.5HP | 355669
Pentair Challenger Power End | 230V 1.5HP | 355669
Quantity:
$1,028.01

N/A
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Pentair Challenger Front Housing Assembly | Threaded Suction | Black | 355302
Quantity:
$181.56

N/A
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Pentair Challenger Union Kit | 1-1/2"-2" | 355309
Quantity:
$104.24

N/A
Pentair Pot Assembly Basket with Plastic Bracket | 0.5HP - 2.5HP | Black | 359507
Pentair Pot Assembly Basket with Plastic Bracket | 0.5HP - 2.5HP | Black | 359507
Quantity:
$224.93

N/A
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Pentair Motor End Cap and Screw Kit | Black | 401014Z
Quantity:
$31.77
